| Motherboard |
| Motherboard | Super X10DRU-XLL |
| Processor/Cache |
| CPU | Dual Socket R3 (LGA 2011) |
| Intel® Xeon® processor E5-2643 v4 (Included) * |
| Cores / Cache | Up to 6 Cores / Up to 20MB Cache |
| System Bus | QPI up to 9.6 GT/s |
| Note | † BIOS version 2.0 or above is required |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. |
| System Memory |
| Memory Capacity | 16x 288-pin DDR4 DIMM slots |
| 8x 8GB DDR4-2400MHz (Default) |
| Up to 2TB † ECC 3DS LRDIMM, 768GB ECC RDIMM |
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes | LRDIMM: 64GB, 32GB |
| 3DS LRDIMM: 128GB |
| RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB |
| Memory Voltage | 1.2 V |
| Error Detection | Corrects single-bit errors |
| On-Board Devices |
| Chipset | Intel® C612 chipset |
| SAS | Broadcom 3108 SAS3 (12Gbps) controllers; RAID 0, 1, 5, 6, 10, 50 support |
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| ASPEED AST2400 BMC |
| Graphics | ASPEED AST2400 BMC |

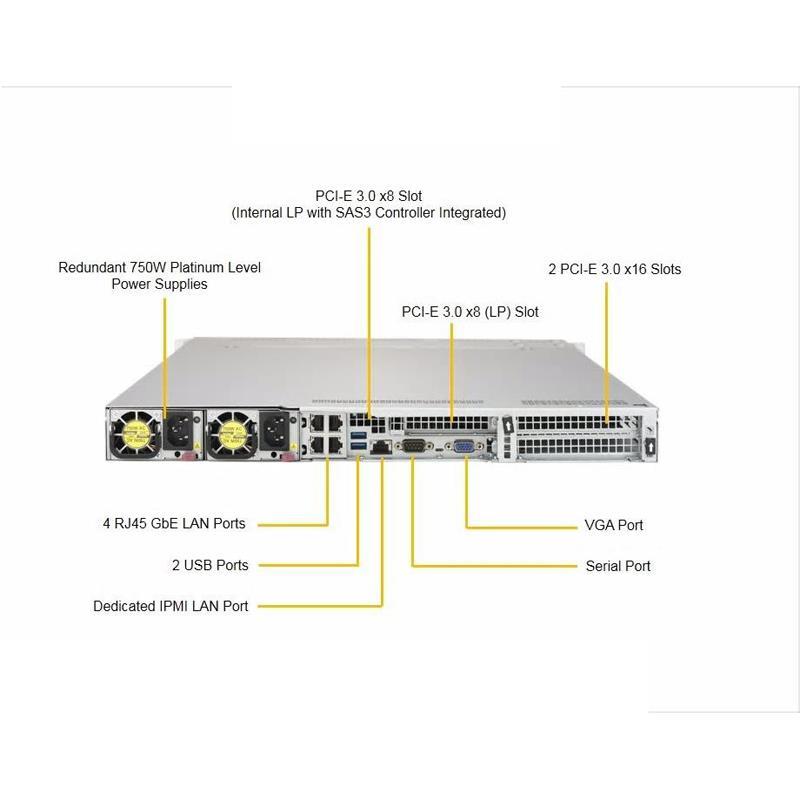

| Input / Output |
| SAS | 8 SAS3 (12Gbps) ports |
| SATA | 2 SATA3 (6Gbps) ports |
| NVMe | 2 NVMe ports support via optional Ultra Riser card (AOC-URN2-i2XT) |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| 4 RJ45 Gigabit Ethernet ports |
| USB | 5 USB 3.0 ports (2 rear, 2 via header, 1 Type A) |
| Video | 1 VGA Connector |
| Serial Port / Header | 1 COM port (rear) |
| 1 Fast UART 16550 serial |
| System BIOS |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | SMBIOS 2.7.1 |
| USB Keyboard support |
| Plug and Play (PnP) |
| UEFI 2.3.1 |
| PCI 2.3 |
| ACPI 1.0 / 2.0 / 3.0 / 4.0 |
| APM 1.2 |
| Chassis |
| Form Factor | 1U Rackmount |
| Model | CSE-119UTS-R751P-T |
| Dimensions and Weight |
| Height | 1.7" (43mm) |
| Width | 17.2" (437mm) |
| Depth | 28.5" (724mm) |
| Gross Weight | 48 lbs (21.8 kg) |
| Available Color | Black |

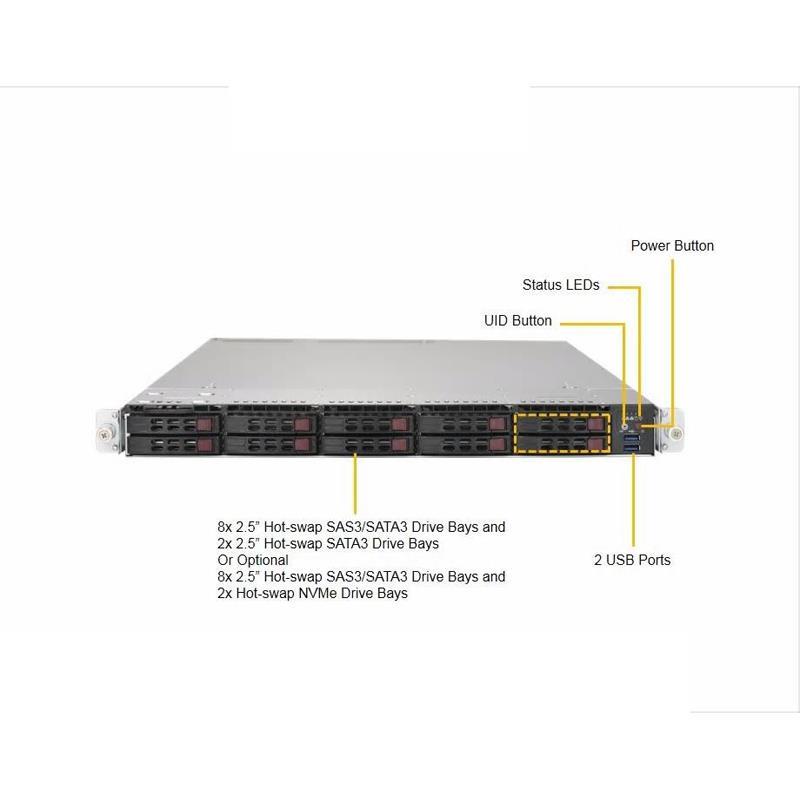

| Front Panel |
| Buttons | Power On/Off button |
| System Reset button |
| LEDs | Power LED |
| Hard drive activity LED |
| 2 Network activity LEDs |
| System Overheat LED / Fan fail LED / UID LED |
| Expansion Slots |
| PCI-Express | 2 PCI-E 3.0 x16, Full-height, 10.5" Length |
| 1 PCI-E 3.0 x8, Low-profile |
| 1 PCI-E 3.0 x8 SAS3 integrated |
| Drive Bays |
| Hot-swap | 2 Hot-swap 2.5" SATA3 drive bays |
| 8 Hot-swap 2.5" SAS3 drive bays |
| Optional NVMe support: 2 NVMe via AOC-URN2-I2XT (w/ 2x 10GBase-T ports) |
| System Cooling |
| Fans | 8 heavy duty fans with optimal fan speed control |
| Air Shroud | 2 Air Shroud |
| Power Supply |
| Power Supply | 750W Redundant Power Supplies with PMBus |
| Total Output Power | 750W: 100 – 127Vac |
| 750W: 200 – 240Vac |
| Dimension (W x H x L) | 73.5 x 40 x 203 mm |
| Input | 100-127Vac / 9.5A Max / 50-60Hz |
| 200-240Vac / 4.5A Max / 50-60Hz |
| +12V | Max: 62.5A / Min: 0A |
| 12V SB | Max: 2.1A / Min: 0A |
| Output Type | 25 Pairs Gold Finger Connector |
| Certification | Platinum Level |
| PC Health Monitoring |
| CPU | CPU Core 6-Phase-switching voltage regulator |
| Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages. |
| FAN | Status monitor for speed control |
| Status monitor for on/off control |
| Low noise fan speed control |
| Total of eight 4-pin PWM fans |
| 8x fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support |
| Thermal Monitor 2 (TM2) support |
| PECI |
| PSU I 2 C temperature sensing logic |
| Thermal Control for 8x Fan Connectors |
| LED | Power Fail / Overheat LED |
| Suspend-state Indicator LED |
| UID LED |
| Other Features | SDDC Support |
| Operating Environment / Compliance |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Product SKUs |
| Product SKUs | SuperServer 1028UX-LL1-B8 (Black) |
