| System Memory |
| DIMM Sizes | 4GB, 8GB, 16GB |
| Memory Capacity | 2 DIMM slots |
| Up to 32GB Unbuffered non-ECC UDIMM, DDR4-2400MHz |
| Memory Voltage | 1.2V |
| Memory Type | 2400/2133/1866 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs |
| On-Board Devices |
| Chipset | Intel® H110 |
| Network Controllers | Single LAN with Intel® PHY I219LM LAN controller |
| Graphics | 1 Intel® HD Graphics port(s) |
| SATA | Intel® H110 controller for 4 SATA3 (6 Gbps) ports |
| Audio | ALC 888S HD Audio |
| Input / Output |
| Others | 1 Force On mode by jumper and AC recovery |
| Video Output | 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - D port(s) |
| USB | 2 USB 3.0 port(s) (2 rear) |
| 6 USB 2.0 port(s) (4 via header; 2 rear) |
| 2 USB 3.2 Gen1 port(s) (2 via header) |
| Serial Port | 2 COM Port(s) (2 header) |
| TPM | 1 TPM Header |
| System BIOS |
| BIOS Features | ACPI 5.0 |
| USB Keyboard support |
| Plug and Play (PnP) |
| DMI 2.3 |
| PCI 3.0 |
| Hardware BIOS Virus protection |
| SMBIOS 3.0 |
| UEFI 2.3.1 |
| BIOS Type | AMI UEFI |
| Management |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management, Force Power On by Jumper, Keyboard Wakeup from Soft-Off |
| Software | SuperDoctor® 5, NMI, Watchdog |
| System Management Software | SuperDoctor 5 |
| PC Health Monitoring |
| FAN | Pulse Width Modulated (PWM) fan connectors |
| PWM fan speed control |
| System level control |
| Thermal control tachometer fan connectors |
| Overheat LED indication |
| 4x 4-pin fan headers (up to 4 fans) |
| LED | Standby alert LED |
| CPU / System Overheat LED |
| Other Features | WOL, System level control, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, ATX Power connector, ACPI power management |
| Voltage | VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 4 -fan status, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support |
| Thermal Monitor 2 (TM2) support |
| PECI |
| I2C temperature sensing logic |
| Product SKUs |

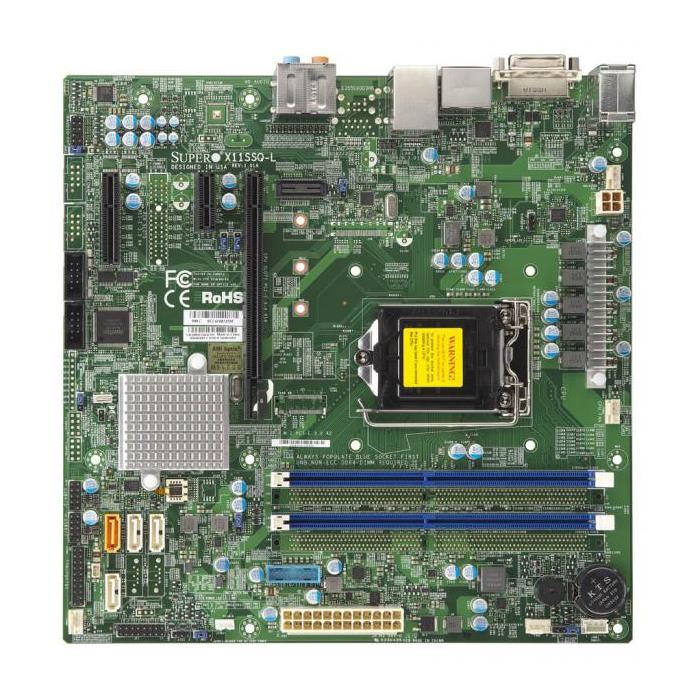

| Product SKUs | MBD-X11SSQ-L |
| Physical Stats |
| Form Factor | Micro-ATX |
| Dimension | 9.6" x 9.6" (24.38cm x 24.38cm) |
| Processor |
| CPU | Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 91W TDP |
| Intel® 6th Generation Core™ i3 series, Intel® 6th Generation Core™ i5 series, Intel® 6th Generation Core™ i7 series, Intel® 7th Generation Core™ i3 series, Intel® 7th Generation Core™ i5 series, Intel® 7th Generation Core™ i7 series, Intel® Celeron®, Intel® Pentium® |
| Expansion Slots |
| PCIe | 1 PCIe 3.0 x16 |
| 1 PCIe 2.0 x4 |
| 1 PCIe 2.0 x1 |
| PCIe 2.0 x4 with open slot |
| Operating Environment |
| Operating Temperature Range | 0°C - 60°C (32°F - 140°F) |
| Non-Operating Temperature Range | -20°C - 60°C (-4°F - 140°F) |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) |
