- Supermicro X10SDV-2C-TLN2F Motherboard Mini-ATX SoC with Intel Xeon processor D-1508 2.2GHz-2.6GHz 2-Core, FCBGA 1667

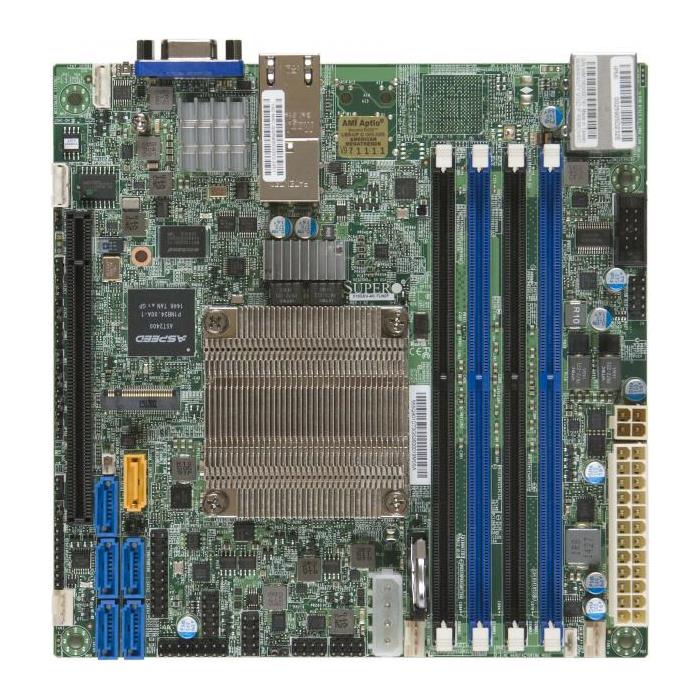

Supermicro X10SDV-2C-TLN2F Motherboard Mini-ATX SoC with Intel Xeon processor D-1508 2.2GHz-2.6GHz 2-Core, FCBGA 1667
SATA3 ports via SoC controller
Dual 10GbE SFP+ for high-bandwidth networking
Embedded Intel Pentium D-1508 2-Core/4 threads
Up to 128GB DDR4: 4x ECC RDIMM slots at 1866MHz
Motherboard Mini-ATX SoC with Intel Xeon processor D-1508 2.2GHz-2.6GHz 2-Core, FCBGA 1667 - Supports up to 128GB DDR4 ECC RDIMM up to 2133MHz (4x 288-pin DIMM slots) - On-Board : SoC controller for 6 SATA3 6Gbps ports (RAID 0,1,5,10 RSTe), Dual 10G SFP+ from D-1500 SoC, IPMI 2.0, VGA, TPM 2.0 header, 1x SuperDOM (Disk on Module) power connector - MBD-X10SDV-2C-TLN2F-O Motherboard (Retail Box)
1. Intel® Pentium® processor D1508, Single socket FCBGA 1667; 2-Core, 4 Threads, 25W
2. System on Chip
3. Up to 128GB ECC RDIMM DDR4 1866MHz or 64GB ECC/non-ECC UDIMM in 4 sockets
4. 1 PCI-E 3.0 x16, M.2 PCI-E 3.0 x4 (SATA support), M Key 2242/2280
5. 2 10GbE LAN ports
6. 6 SATA3 (6Gbps) ports via SoC
7. 2 USB 3.0 ports (rear), 4 USB 2.0 ports (via headers)
8. 1 SuperDOM, 1 COM, TPM header, GPIO and SMbus header(s)
9. 12V DC Input and ATX Power Source
Extra Specifications for Supermicro X10SDV-2C-TLN2F Motherboard Mini-ATX SoC with Intel Xeon processor D-1508 2.2GHz-2.6GHz 2-Core, FCBGA 1667
| System Memory | ||
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| Memory Capacity | Up to 128GB Registered ECC RDIMM, DDR4-1866MHz | |
| Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-1866MHz, in 4 DIMM slots | ||
| Memory Voltage | 1.2V | |
| Memory Type | 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM (Operating speed up to 1866MHz) | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Network Controllers | Dual LAN with 10Gbase-T Single LAN with Virtual Machine Device Queues reduce I/O overhead Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI) | |
| Graphics | Aspeed AST2400 BMC | |
| SATA | SoC controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 | |
| RSTe | ||
| Input / Output | ||
| SATA | 6 SATA3 (6Gbps) port | |
| LAN | 2 RJ45 10GBase-T ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| USB | 2 USB 3.0 ports (2 rear) | |
| 4 USB 2.0 ports (4 headers, Type A)) | ||
| Video Output | 1 VGA port | |
| Serial Port / Header | 1 COM Port (1 header) | |
| TPM | TPM Header | |
| System BIOS | ||
| BIOS Features | UEFI 2.4 | |
| USB Keyboard support | ||
| ACPI 3.0 / 4.0 | ||
| RTC (Real Time Clock) Wakeup | ||
| PCI 3.0 | ||
| Hardware BIOS Virus protection | ||
| SMBIOS 2.8 | ||
| BIOS Type | 128Mb SPI Flash with AMI BIOS | |
| Management | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| CPU Fan auto-off in sleep mode | ||
| Software | Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watchdog | |
| PC Health Monitoring | ||
| FAN | 4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer monitoring, Dual Cooling Zone, Low noise fan speed control, Pulse Width Modulated (PWM) fan connectors, Status monitoring for on/off control, Status monitoring for speed control | |
| LED | CPU / System Overheat LED | |
| Other Features | 12V DC or ATX Power Source, Chassis intrusion detection, Chassis intrusion header, RoHS | |
| Voltage | +12V, +3.3V, +5V, Chassis intrusion header, Monitors for CPU Cores, System level control, VBAT | |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI | |
| Product SKUs | ||
| Product SKUs | ||
| Physical Stats | ||
| Form Factor | Mini-ITX | |
| Dimensions | 6.7" x 6.7" (17.02cm x 17.02cm) | |
| Processor/Cache | ||
| CPU | Intel® Pentium® Processor D1508. | |
| Socket FCBGA1667 supported, CPU TDP support 25W | ||
| Cores / Cache | 2 cores, 4 threads / 3MB cache | |
| Expansion Slots | ||
| PCI-E | 1 PCI-E 3.0 x16 | |
| M.2 | Key: M-Key | |
| Form Factor: 2242, 2280 | ||
| M.2 Interface: 1 SATA/PCI-E 3.0 x4 | ||
| Operating Environment | ||
| Operating Temperature Range | 0°C ~ 60°C (32°F ~ 140°F) | |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) | |
| Operating Relative Humidity Range | 10% ~ 85% (non-condensing) | |
| Non-Operating Relative Humidity Range | 10% ~ 95% (non-condensing) | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 1U I/O Shield | MCP-260-00085-0B | $ 21.00 | 1 | 1U I/O Shield for X10SDV-F/TLN4F in CSE-510/505/504 | ||
| 1U I/O Shield | MCP-260-00079-0N | $ 20.00 | 1 | 1U I/O Shield for X10SDV-F/TLN4F in SC813 |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
