- Supermicro SYS-1028UX-LL2-B8 1U Barebone Dual Intel Processor
Supermicro SYS-1028UX-LL2-B8 1U Barebone Dual Intel Processor
• Qualified low latency NICs
• here
• Support
• Hyper-Speed
Server Rackmount 1U with Dual Intel Xeon E5-2687W v4 processors (Included) - Supports up to 2TB DDR4 ECC LRDIMMi in 16x 288-pin sockets - On-Board: LSI 3108 SAS3 (12Gbps, RAID), SATA3 (6Gbps, RAID), IPMI 2.0, VGA, 4x RJ45 Gigabit Ethernet ports, 1x RJ45 Dedicated IPMI LAN port - Includes: 2x Intel Xeon E5-2687W v4 processors, 8x 8GB DDR4 2400MHz memories (by default), 8x 2.5in Hot-swap SAS3 drive bays, 2x 2.5in Hot-swap SATA3 drive bays, 2x NVMe ports support via optional AOC-URN2-I2XT (w/ 2x 10GBase-T ports), Add-On Cards AOC-S3108L-H8IR and AOC-UR-I4G, 750W Redundant 80 Plus Platinum Power Supply,MBD-X10DRU-XLL Motherboard, SC119UTS-R751P-T 1U Chassis (Black)
To maintain quality and integrity, this product is sold only as a completely-assembled system (including but not limited to CPU, memory, and HDDs). At least one low-latency NIC from thismust be selected and installed into the system.
Support Hyper-Speed

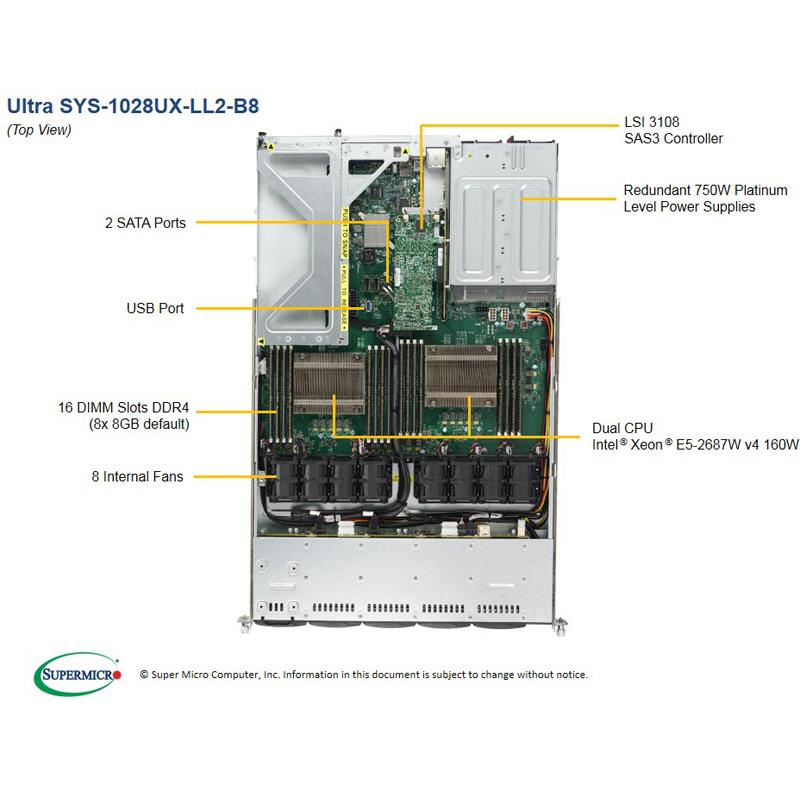

1. Dual Intel® Xeon® processor E5-2687W v4
2. 8x 8GB DDR4-2400MHz (Default), up to DDR4- 2400 † MHz; 16 DIMM slots
3. Expansion slots via riser card: 2 PCI-E 3.0 x16, Full-height, 10.5" Length 1 PCI-E 3.0 x8, Low-profile 1 PCI-E 3.0 x8 SAS3 integrated
4. 4 Gigabit Ethernet LAN ports
5. Integrated IPMI 2.0 with KVM and Dedicated LAN
6. 10 Hot-swap 2.5" Drive Bays: 8 SAS3 (Broadcom 3108), 2 SATA3, 2 NVMe ports support via optional AOC-URN2-I2XT (with 2x 10GBase-T ports)
7. 8 heavy duty fans w/ optimal fan speed control
8. 750W Redundant Power Supplies Platinum Level (94%+)
Extra Specifications for Supermicro SYS-1028UX-LL2-B8 1U Barebone Dual Intel Processor
| Motherboard | ||
| Motherboard | Super X10DRU-XLL | |
| Processor/Cache | ||
| CPU | Dual Socket R3 (LGA 2011) | |
| Intel® Xeon® processor E5-2687W v4 (Included) * | ||
| Cores / Cache | Up to 12 Cores / Up to 30MB Cache | |
| System Bus | QPI up to 9.6 GT/s | |
| Note | † BIOS version 2.0 or above is required | |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. | ||
| System Memory | ||
| Memory Capacity | 16x 288-pin DDR4 DIMM slots | |
| 8x 8GB DDR4-2400MHz (Default) | ||
| Up to 2TB † ECC 3DS LRDIMM, 768GB ECC RDIMM | ||
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| DIMM Sizes | LRDIMM: 64GB, 32GB | |
| 3DS LRDIMM: 128GB | ||
| RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| On-Board Devices | ||
| Chipset | Intel® C612 chipset | |
| SAS | Broadcom 3108 SAS3 (12Gbps) controllers; RAID 0, 1, 5, 6, 10, 50 support | |
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Graphics | ASPEED AST2400 BMC | |
| Input / Output | ||
| SAS | 8 SAS3 (12Gbps) ports | |
| SATA | 2 SATA3 (6Gbps) ports | |
| NVMe | 2 NVMe ports support via optional Ultra Riser card (AOC-URN2-i2XT) | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 4 RJ45 Gigabit Ethernet ports | ||
| USB | 5 USB 3.0 ports (2 rear, 2 via header, 1 Type A) | |
| Video | 1 VGA Connector | |
| Serial Port / Header | 1 COM port (rear) | |
| 1 Fast UART 16550 serial | ||
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| BIOS Features | SMBIOS 2.7.1 | |
| USB Keyboard support | ||
| Plug and Play (PnP) | ||
| UEFI 2.3.1 | ||
| PCI 2.3 | ||
| ACPI 1.0 / 2.0 / 3.0 / 4.0 | ||
| APM 1.2 | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-119UTS-R751P-T | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 28.5" (724mm) | |
| Gross Weight | 48 lbs (21.8 kg) | |
| Available Color | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| Hard drive activity LED | ||
| 2 Network activity LEDs | ||
| System Overheat LED / Fan fail LED / UID LED | ||
| Expansion Slots | ||
| PCI-Express | 2 PCI-E 3.0 x16, Full-height, 10.5" Length | |
| 1 PCI-E 3.0 x8, Low-profile | ||
| 1 PCI-E 3.0 x8 SAS3 integrated | ||
| Drive Bays | ||
| Hot-swap | 2 Hot-swap 2.5" SATA3 drive bays | |
| 8 Hot-swap 2.5" SAS3 drive bays | ||
| Optional NVMe support: 2 NVMe via AOC-URN2-I2XT (w/ 2x 10GBase-T ports) | ||
| System Cooling | ||
| Fans | 8 heavy duty fans with optimal fan speed control | |
| Air Shroud | 2 Air Shroud | |
| Power Supply | ||
| Power Supply | 750W Redundant Power Supplies with PMBus | |
| Total Output Power | 750W: 100 – 127Vac | |
| 750W: 200 – 240Vac | ||
| Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
| Input | 100-127Vac / 9.5A Max / 50-60Hz | |
| 200-240Vac / 4.5A Max / 50-60Hz | ||
| +12V | Max: 62.5A / Min: 0A | |
| 12V SB | Max: 2.1A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Platinum Level | |
| PC Health Monitoring | ||
| CPU | CPU Core 6-Phase-switching voltage regulator | |
| Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages. | ||
| FAN | Status monitor for speed control | |
| Status monitor for on/off control | ||
| Low noise fan speed control | ||
| Total of eight 4-pin PWM fans | ||
| 8x fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU thermal trip support | ||
| Thermal Monitor 2 (TM2) support | ||
| PECI | ||
| PSU I 2 C temperature sensing logic | ||
| Thermal Control for 8x Fan Connectors | ||
| LED | Power Fail / Overheat LED | |
| Suspend-state Indicator LED | ||
| UID LED | ||
| Other Features | SDDC Support | |
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 10°C to 30°C (50°F to 86°F) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 1028UX-LL2-B8 (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X10DRU-XLL | 1 | Super X10DRU-XLL Motherboard | |
| Motherboard / Chassis | CSE-119UTS-R751P-T | 1 | CSE-119UTS-R751P-T Chassis | |
| Fan | FAN-0101L4 | 8 | 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808 | |
| Air Shroud | MCP-310-81907-0N | 2 | SC819UT PLASTIC AIR SHROUD 16 DIMM | |
| Add-on Card | AOC-S3108L-H8IR-16DD | 1 | SAS-3, GEN-3 RAID card. Supports 12Gb and R0,1,5,6,10,50 and 60. Includes 2GB memory | |
| Add-on Card | AOC-UR-I4G-O-P | 1 | 1U Ultra Riser based on Intel i350AM4 controller with 4 GbE RJ45 ports and 1 internal PCI-E x8 3.0 slot | |
| CPU | P4X-DPE52687WV4-SR2NA | 2 | BDW-EP 12C/24T E5-2687W v4 3G 30M 9.6GT 160W R3 2011 M0 | |
| Memory | MEM-DR480L-SL02-ER24 | 8 | 8GB DDR4-2400 1Rx4 LP ECC REG DIMM | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
| Power Supply | PWS-751P-1R | 2 | 1U 750W Redundant Platinum Single Output Power Supply w/Pmbus W73.5xH40xL203mm,RoHS/REACH |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| CacheVault(s) | BTR-CV3108-1U1 | $ 324.50 | 0 | CacheVault for Broadcom 3108 with Supercap mounting in 1U 40x56 fan tray | ||
| CacheVault(s) | BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05 | 0 | CacheVault for Broadcom 3108; Supercap mounting bracket for PCI-E location | |||
| CacheVault(s) | BTR-TFM8G-LSICVM02 & MCP-240-00127-0N | 0 | CacheVault for Broadcom 3108; Supercap mounting bracket for 2.5" HDD location | |||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
