Main Specifications |
Device Type | SuperChassis |
Dimensions (WxDxH) | Height 3.5" (89mm) x Width 17.2" (437mm) x Depth 27.75" (705mm) |
Color | Black |
Form Factor | 2U chassis support for max. motherboard size 13.68" x 13.4", E-ATX, ATX |
Weight | 62 lb (28.12 kg) |
Processor Support |
Processor Support | Supports dual, single Intel / AMD processors |
Expansion / Connectivity |
Expansion Slots Total (Free) | 7 low-profile expansion slot(s) |
Drive Bays |

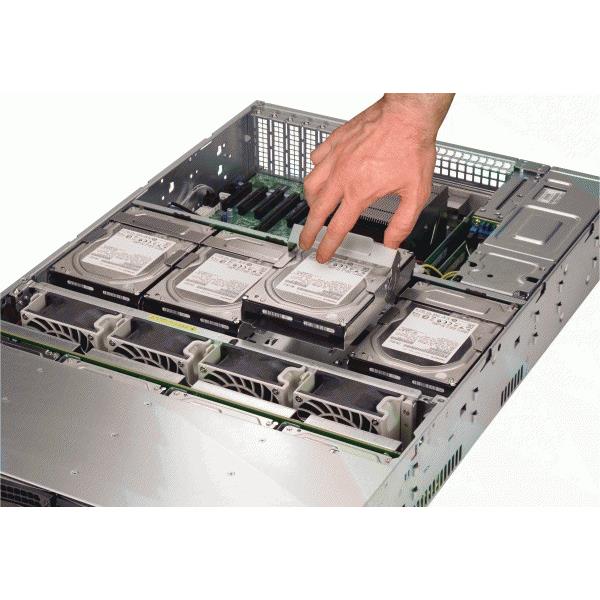

Internal | 16x 3.5" hot-swap SAS/SATA drive bay with SGPIO |
| Optional 2x 2.5" hot-swap SAS/SATA drive bay |
SAS / SATA Backplane |
SAS / SATA Backplane | BPN-SAS3-829HA-A4 (4-Port 12Gbps Backplane for 4x3.5" Internal SAS3/SATA3 HDD/SSD) |
| BPN-SAS3-826EL1-N4 (12-Port 2U Backplane with Expander support up to 8 x 3.5" SAS3/SATA3 HDD/SDD and 4 x SAS3/SATA3/NVMe Storage Devices) |
Front Panel |
Buttons | Power On/Off button, System Reset button |
LEDs | 2 Network Activity LEDs, HDD Fail LED, Power Status LED, Power Fail LED, System Information LED |
System Cooling |
Fans | 4x 80x38mm PWM fan |
| 4x FAN-0118L4 |
Miscellaneous |
Applications | Chassis Intrusion switch |
Operating Environment (System) |
Humidity Range | 8% ~ 90% (non-condensing) |
Non-Operating Temperature Range | -40C ~ 60C (-40F ~ 140F) |
Operating Temperature Range | 5C ~ 35C (41F ~ 95F) |
Environmental Parameters |
Operating Humidity | 5 - 95% (non-condensing) |
Power Supply |
Certification | 80PLUS Titanium Level |
Power Supply | 2x PWS-1K02A-1R |
| 1000W Redundant Titanium Level Power Supply with PMBus |
Regulatory (Power Supply) |
Power Supply Safety / EMC | USA - UL listed, FCC |
| Canada - CUL listed |
| Germany - TUV Certified |
| Europe/CE Mark |
| EN 60950/IEC 60950-Compliant |
Parts List - (Items Included) |
Air Shroud | 1x MCP-310-82901-0B |
Backplane | 1x BPN-SAS3-829HA-A4, 1x BPN-SAS3-826EL1-N4 |
Drive Trays | 1x MCP-220-82902-0N, 1x MCP-290-82607-0N, 12x MCP-220-00075-0B, 4x MCP-220-82903-0N |
Mounting Rails | 1x MCP-290-00053-0N-01 |
Parts List |
Cables | 2x CBL-0160L, 1x CBL-0217L |
Standard Parts List |
Chassis | 1x CSE-829HE1C4-R1K02LPB |
Front Panel | 1x FPB-FP829H, 1x MCP-280-00018-0N |
Power Distributor | 1x PDB-PT829H-2824 |
Optional Parts List |
Adaptor Bracket | 1x MCP-120-82503-0N |
Cable Management Arm | 1x MCP-290-00073-0N |
HDD Cage | 1x MCP-220-82609-0N |
HDD Tray Converter | 1x MCP-220-00043-0N |
