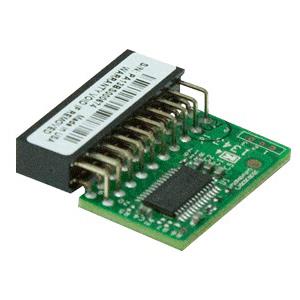

Supermicro AOM-TPM-9665V Standard Vertical TPM No Provisioning
• Power saving sleep mode
• Over/Under voltage detection
• Improved encryption capability
• Protection against Dictionary Attack
Standard Vertical TPM without Provisioning - Supported: Any Motherboard With TPM Support With 20-Pin
• 3.3 V power supply
• Power saving sleep mode
• General Purpose Input/output
• Compliant embedded software
• Tick counter with tamper detection
• Protection against Dictionary Attack
• True Random Number Generator (TRNG)
• TCG 2.0 compliant trusted platform module (TPM)
• Microcontroller in 0.22/0.09 ìm CMOS technology
• Intel Trusted Execution Technology (TXT) Support
• Hardware accelerator for SHA-1 and SHA-256 hash algorithm
• Full personalization with Endorsement Key (EK) and EK certificate
• EEPROM for TCG firmware enhancements and for user data and keys
Extra Specifications for Supermicro AOM-TPM-9665V Standard Vertical TPM No Provisioning
| Main Specifications | ||
| Device Type | Add-on-Module | |
| Dimensions (WxDxH) | 8mm x 26mm x 25mm | |
| Form Factor | Vertical Design | |
| Included Quantity | 1 | |
| Supported CPUs | Any MBs Supported CPU | |
| Security Features | ||
| Security Features | Over/Under voltage detection | |
| Low frequency sensor | ||
| High frequency filter | ||
| Reset filter | ||
| Memory Encryption/Decryption (MED) | ||
| TPM 2.0 improvements | ||
| TPM 2.0 improvements | Improved encryption capability | |
| Improved TPM to application integration | ||
| Enhanced authorization mechanisms | ||
| Simplified TPM management with additional capabilities to enhance platform security | ||
| Provides specific-use algorithms to meet geographies based or market specific requirement | ||
| Environmental Parameters | ||
| Min Operating Temperature | -20C to 80C (-4F to 176F) | |
| -40C to 85C (-40F to 185F) | ||
| Miscellaneous | ||
| Application Supports | Microsoft Outlook and Outlook Express | |
| Microsoft Office 2010, Office 2000, Office XP and Office 2003 | ||
| Microsoft Internet Explorer | ||
| Mozilla Firefox, Mozilla Thunderbird | ||
| Netscape Communicator | ||
| Microsoft Encrypted File System | ||
| RSA Secure ID | ||
| Entrust Desktop Manager Solutions | ||
| Adobe Acrobat 6.0 Professional | ||
| Check Point SecuRemote/SecureClient, Check Point VPN-1/FireWall-1 NG | ||
| Compatibility | Supermicro motherboards with 20-pin TPM connectors | |
| Any MBs with TPM support | ||
| Compliance Standards | RoHS Compliant 6/6 (2011/65/EU), Pb Free | |
| Features | Easy to manage: Integrates with existing X10/B10 MB Platform | |
| Flexibility: Supports any Supermicro Systems/Motherboards with multiple RAID controllers & HDDs | ||
| Strong authentication: Uses hardware module, TPM and Software TXT to provide two-factor authentication | ||
| Low TCO: 50% or more reduction in total cost of ownership (TCO) by leveraging existing hardware and lowering ongoing costs, providing a highest security at lowest cost per TB | ||
| Low risk: Two Authentication methods utilizing TPM & TXT ensuring interoperability by authentication, platform Integrity check, RSA key creation management and storing the encrypted key with in the TPM chipset | ||
