- Supermicro SYS-5018D-LN4T 1U Barebone Embedded Intel Pentium D1508 Processor

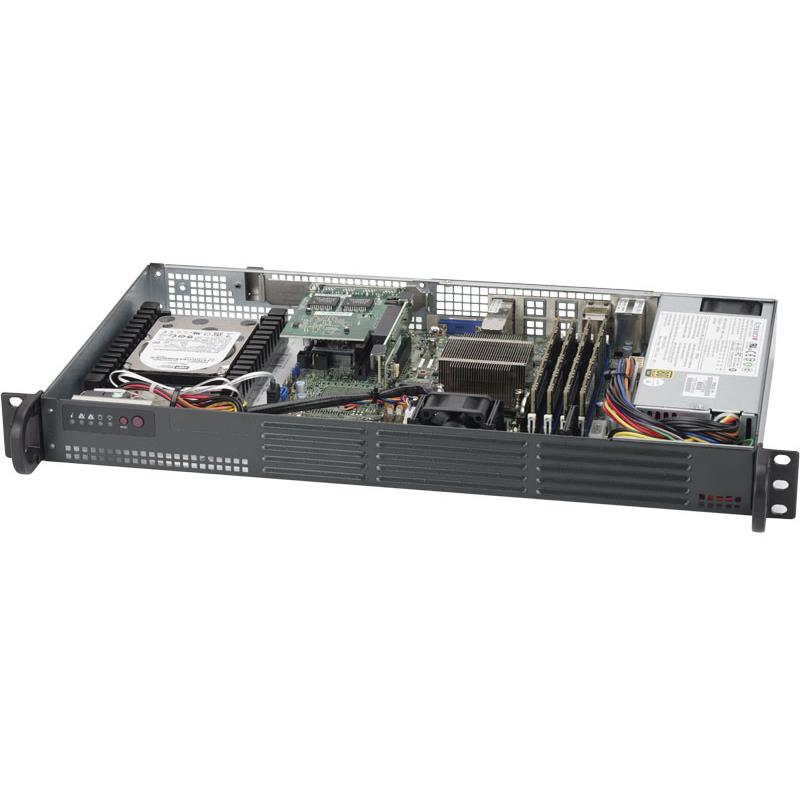

Supermicro SYS-5018D-LN4T 1U Barebone Embedded Intel Pentium D1508 Processor
• Compact Network Appliance
• FireWall Applications
• Software Definded WAN
• 7 year life cycle
1U Barebone SuperServer, Embedded Intel Pentium D1508 Processor, 2.20GHz 2 Core/4 Thread. Supports up to 128GB DDR4 ECC RDIMM in 4x sockets - On-Board : SATA3 6Gbps via SoC (RAID 0,1,5,10 RSTe), 2x 10G SFP+ and 2x 1GbE LAN, IPMI 2.0, VGA - Includes : 1x 3.5in Drive Bays (or optionally 4x 2.5in SATA3 fixed HDD Bays), 1x Riser Card (RSC-RR1U-E8), 200W 80 Plus Gold Certified Power Supply (PWS-203-1H), MBD-X10SDV-2C-TP4F Motherboard, SC504-203B 1U Chassis - (Black)
This product is no longer available.
1. Intel® Pentium® processor D1508, Single socket FCBGA 1667; 2-Core, 4 Threads, 25W
2. Intel® System-on-Chip Design
3. 1x 3.5" fixed drive bay or up to 4x 2.5" fixed drive bays
4. 1x PCI-E 3.0 x8 slot, M.2 PCIe 3.0 x4, M Key 2242/2280/22110, Mini-PCIe w/ mSATA support
5. Up to 128GB ECC RDIMM DDR4 1866MHz or 64GB ECC/non-ECC UDIMM in 4 sockets
6. Dual 10G SFP+ and dual 1GbE LAN
7. DOM power connector
8. 200W Low-noise power supply w/ PFC
Extra Specifications for Supermicro SYS-5018D-LN4T 1U Barebone Embedded Intel Pentium D1508 Processor
| Motherboard | ||
| Motherboard | Super X10SDV-2C-TP4F | |
| Processor/Cache | ||
| CPU | Intel® Pentium® processor D1508 , 2.2GHz-2.6GHz; CPU TDP support 25W | |
| FCBGA 1667 | ||
| Cores / Cache | 2 Cores, 4 Threads / 3MB | |
| System Memory | ||
| Memory Capacity | 4x DDR4 DIMM sockets | |
| Supports up to 128GB DDR4 ECC RDIMM | ||
| Supports up to 64GB DDR4 ECC/non-ECC UDIMM | ||
| Memory Type | 1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM | |
| DIMM Sizes | 32GB, 16GB, 8GB, 4GB | |
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices | ||
| Chipset | System on Chip | |
| SATA | SoC controller for 4 SATA3 (6Gbps) ports; RAID 0,1,5,10 RSTe | |
| Network Controllers | Dual 10G SFP+ from D-1500 SoC | |
| Dual 1GbE with Intel I210 | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Video | Aspeed AST2400 | |
| Input / Output | ||
| SATA | 4x SATA3 (6Gbps) ports | |
| LAN | 2x 1GbE LAN ports | |
| 2x 10G SFP+ LAN ports | ||
| 1x Dedicated IPMI LAN port | ||
| USB | 2x USB 3.0 ports (rear) | |
| 5x USB 2.0 ports (4 via headers, 1 Type A) | ||
| Serial Port / Header | 1x COM port (header) | |
| DOM | 2x SuperDOM (Disk on Module) power connectors | |
| Video | 1x VGA port | |
| TPM | TPM 2.0 header | |
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-504-203B | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 9.8" (249mm) | |
| Weight | Gross Weight: 12 lbs (5.44 kg) | |
| Net Weight: 8 lbs (3.63 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| Information LED (temp., status) | ||
| Hard drive activity LED | ||
| 2x Network activity LEDs | ||
| System Overheat LED | ||
| Expansion Slots | ||
| PCI-E | 1x PCIe 3.0 x8 slots | |
| M.2 PCIe 3.0 x4, M Key 2242/2280/22110 | ||
| Mini-PCIe with mSATA support | ||
| Drive Bays | ||
| HDD | 1x 3.5" or up to 4x 2.5" Fixed drive bays | |
| System Cooling | ||
| Fans | 1x 40x28mm 13K RPM 4-pin PWM fan | |
| Power Supply | ||
| Power Supply | 200W Low Noise AC-DC power supply with PFC | |
| AC Voltage | 100 - 240V, 50-60Hz, 2.6 Amp Max | |
| +5V | 8.0 Amp (max.) | |
| +5V standby | 2.0 Amp (max.) | |
| +12V | 16 Amp (max.) | |
| -12V | 0.5 Amp (max.) | |
| +3.3V | 8.0 Amp (max.) | |
| Certification | Gold Certified | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash with AMI BIOS | |
| BIOS Features | UEFI 2.4 | |
| ACPI 5.0 | ||
| USB Keyboard support | ||
| RTC (Real Time Clock) Wakeup | ||
| PCI 3.0 | ||
| Hardware BIOS Virus protection | ||
| SMBIOS 2.8 | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 10°C to 40°C (50°F to 104°F) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 5018D-LN4T (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X10SDV-2C-TP4F | 1 | Super X10SDV-2C-TP4F Motherboard | |
| Motherboard / Chassis | CSE-504-203B | 1 | 1U Chassis | |
| Cable 1 | CBL-SAST-0538 | 1 | SATA,INT,ROUND,ST-RA,29CM,30AWG | |
| Cable 2 | CBL-0082L | 1 | Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG | |
| Fan | FAN-0065L4 | 1 | 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M | |
| Label | LBL-0997 | 1 | Fan Warning Label 30x11mm,RoHS/REACH | |
| Parts | MCP-260-00100-0B | 1 | 1U I/O Shield | |
| Riser Card | RSC-RR1U-E8 | 1 | RSC-RR1U-E8 | |
| Rear Window | MCP-240-00091-0N | 2 | 1U universal riser card bracket for standard chassis,HF,RoHS/REACH,PBF | |
| Power Supply | PWS-203-1H | 1 | 1U 200W Multi-output 80Plus Gold PWS |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| HDD Bracket | MCP-220-00044-0N | $ 18.00 | 0 | Dual 2.5" fixed HDD bracket for SC502, 503, 510, 512, 515U | ||
| HDD Bracket | MCP-220-00051-0N | $ 19.50 | 0 | Single 2.5" fixed HDD bracket for SC502, 503, 510, 512, 515U |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
