- Supermicro AOC-S25G-B2S Standard LP 2-port 25GbE SFP28 LAN Adapter

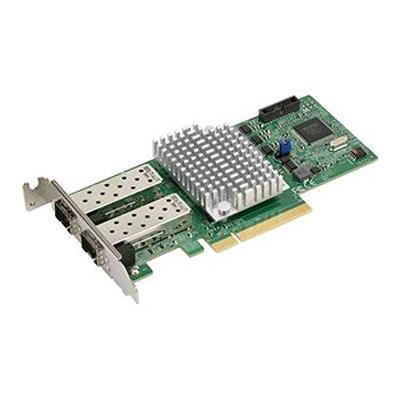

Supermicro AOC-S25G-B2S Standard LP 2-port 25GbE SFP28 LAN Adapter
2-Port 25GbE SFP28 Network Adapter PCIe 3.0 x8, 25GbE per port, Broadcom BCM57414, Low-Profile- For system integration / bundle, ONLY
• Dual SFP28 Connectors
• Low-Profile, Short Length Standard Form Factor
• PCI-E 3.0 x8 interface
• Asset Management Features with thermal sensor
• Broadcom Dual-Port 25 Gbps PCI Express Gen3 Ethernet
Controller
• Data Center Bridging (DCB)
• IEEE1588 Time Sync
• TruFlow
• NPAR
• VXLAN and NVGRE
• RDMA over Converged Ethernet (RoCE)
• NetQueue, VMQueue, and Multiqueue
• PCI-SIG SR-IOV compliant
• Jumbo Frames support up to 9600-Byte
• NC-SI for IPMI support
• RoHS compliant 6/6
Extra Specifications for Supermicro AOC-S25G-B2S Standard LP 2-port 25GbE SFP28 LAN Adapter
| Add-on Card | ||
| Add-on Card | The Supermicro AOC-S25G-b2S is one of the most feature rich and versatile 25GbE controllers in the market. Based on the Broadcom BCM57414 chipset with features such as VXLAN, NVGRE, and RoCE it is backward compatible with 10GbE network and the most cost effective upgrade from 10GbE to 25GbE in data center or cloud deployments. The unique features including TruFlow and NPAR (NIC Partitioning) technology provide flexible connectivity for different networking requirements. SupermicroR Asset Management and thermal detection give the extra layer of controller health management and a peace of mind. The Supermicro AOC-S25G-b2S is one of the most versatile 25GbE controllers in the market and an excellent choice to enhance network connectivity in data centers and enterprise environments. This product is only available through Supermicro. | |
| Compliance | ||
| RoHS | RoHS Compliant 6/6, Pb Free | |
| Downloads | ||
| User's Guide | [ https://www.supermicro.com/manuals/other/AOC-S25G-b2S.pdf ] | |
| Datasheet | [ https://www.supermicro.com/manuals/other/datasheet-AOC-S25G-b2S.pdf ] | |
| Driver | Choose the latest CDR-NIC folder, and then click on the Broadcom folder for driver [ https://www.supermicro.com/wdl/Networking_Drivers/ ] | |
| Driver CD | Click on the latest CDR-NIC ISO file to download [ https://www.supermicro.com/wdl/Networking_Drivers/ ] | |
| Compatibility Matrices | ||
| Cables & Transceivers | Networking Cables & Transceivers :https://www.supermicro.com/support/resources/AOC/Networking_Cables_Transceivers_Compatibility.cfm | |
| Specification | ||
| Specification | • General - Broadcom BCM57414 dual-port 25Gbps controller - Compact size low-profile standard form factor - PCI-E 3.0 x8 (8GT/s, 5GT/s or 2.5GT/s) interface - Dual SFP28 connectors - Typical power consumption: 5.2W • Host Interface - PCI-E v3.0 (8GT/s) - MCTP over SMBus - Function Level Reset (FLR) support - Message Signal Interrupt (MSI-X) • Networking features - Jumbo frames (up to 9600-Byte) - 802.3x flow control - Link Aggregation (802.3ad) - Virtual LANs – 802.1q VLAN tagging - Configurable Flow Acceleration - IEEE 1588 and Time Sync • Stateless Offload Features - TCP, UDP, IPv4, IPv6 checksum offload - Large Send Offload - Receive Segment Coalescing - TCP segmentation Offload - Large Receive Offload - Receive Side Scaling (RSS) - Transmit Side Scaling (TSS) • NIC Partitioning (NPAR) - 16 Physical Functions - QoS per partition - Partitioning control via sideband communication - Up to 64 MAC/VLAN filter per partition - Per partition statistics support - Stateless offloads configuration per partition - VEB/VEPA support • Virtualization Features - NetQueue, VMQueue, and Multiqueue - Support for 128 Virtual Functions - VXLAN - NVGRE - Geneve - Edge Virtual Bridging (EVB) • Flow Processing - Exact/Wildcard Match Flow Lookup - VLAN insertion/deletion - NAT/NAPT - Mirroring • Data Center Bridging - Priority-based flow control (PFC; IEEE 802.1Qbb) - Enhanced transmission selection (ETS; IEEE802.1Qau) - Quantized congestion Notification (QCN; IEEE802.1Qau) - Data Center Bridging Capability eXchange (DCBX; IEEE802.1Qaz) - 8 traffic classes per port; fully DCB compliant per 802.1Qbb • Manageability - Network Controller Sideband Interface (NC-SI) - PXE v2.1 remote boot - Asset Management with Thermal Sensors • Power Savings - ACPI compliant power management - PCI Express Active State Power Management (ASPM) - Ultra low-power mode • Operating Conditions - Storage temperature: -40°C to 70°C (-40°F to 158°F) - Storage humidity: 90% non-condensing relative humidity at 35°C • Physical Dimensions - Card PCB dimensions: 14.224cm x 6.89cm (5.6in x 2.71in) (LxW) - Height of end brackets: standard – 12cm (4.725in), low-profile – 8cm (3.15in) • Weight - 90.5g (0.2lb) | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
