• Dual RJ45 Connectors
• Lower power consumption
• PCI-E 3.0 x4 (8GT/s) interface
• Load balancing on multiple CPUs

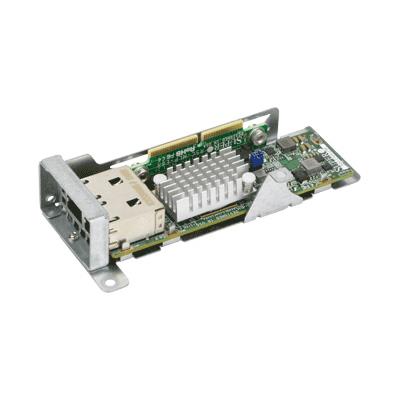

MicroLP 2x 10GBase-T Adapter Card, PCI-E 3.0 x4, RJ45 for 12-node MicroCloud, Intel X550 - Dual 10 Gigabit Ethernet For system integration / bundle, ONLY
• DMA coalescing
• MicroLP Form Factor
• Ethernet Flow Director
• RoHS compliant 6/6
• Dual RJ45 Connectors
• PCI Express 3.0 x4 (8GT/s)
• Asset Management Features
• Jumbo Frames support up to 15.5KB
• IEEE 802.3az Energy Efficient Ethernet (EEE)
• VMDq and SR-IOV for Virtualized Environment
• Supports RJ-45 Category-6 and 6A (10GBASE-T)
• Network Virtualization Offloads: VXLAN and NVGRE
| Main Specifications | ||
| Device Type | Card PCB dimensions: 11.3cm (4.45") x 3.9cm (1.54") | |
| Form Factor | MicroLP | |
| Interface (Bus) Type | PCI Express 3.0 x4 (8GT/s) | |
| Storage Controller | ||
| Connectivity Technology | Wired | |
| Networking | ||
| Port Quantity | Dual RJ45 connectors with speeds up to 10Gb/s per port | |
| Power | ||
| Comsumtion Operational | 12W | |
| Environmental Parameters | ||
| Operating Temperature | Operating temperature: 0C to 55C (32F to 131F) | |
| Storage temperature: -40C to 70C (-40F to 158F) | ||
| Storage humidity: 90% non-condensing relative humidity at 35C | ||
| Software / System Requirements | ||
| OS Supports | Windows Server 2012 R2, 2012, 2008 R2 X86-64 | |
| Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64 | ||
| Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64 | ||
| FreeBSD 9 and 10 IA-32, X86-64, and IA-64 | ||
| UEFI 2.1 and 2.3 X86-64 and I-64 | ||
| VMware ESXi 5.1, ESXi 5.5 and ESXi 6.0 X86-64 | ||
| Miscellaneous | ||
| Cables Type | Cables Support: RJ-45 Category-6 up to 55m, Category-6A up to 100m | |
| RoHS | RoHS Compliant 6/6, Pb Free | |
| Features | Supports RJ-45 Category-6 and 6A (10GBASE-T) | |
| Included Accessories | 1x AOM-CTGS-i2TM | |
| 1x MCP-240-93907-0N | ||
| 1x RSC-MLP-E8R | ||
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
