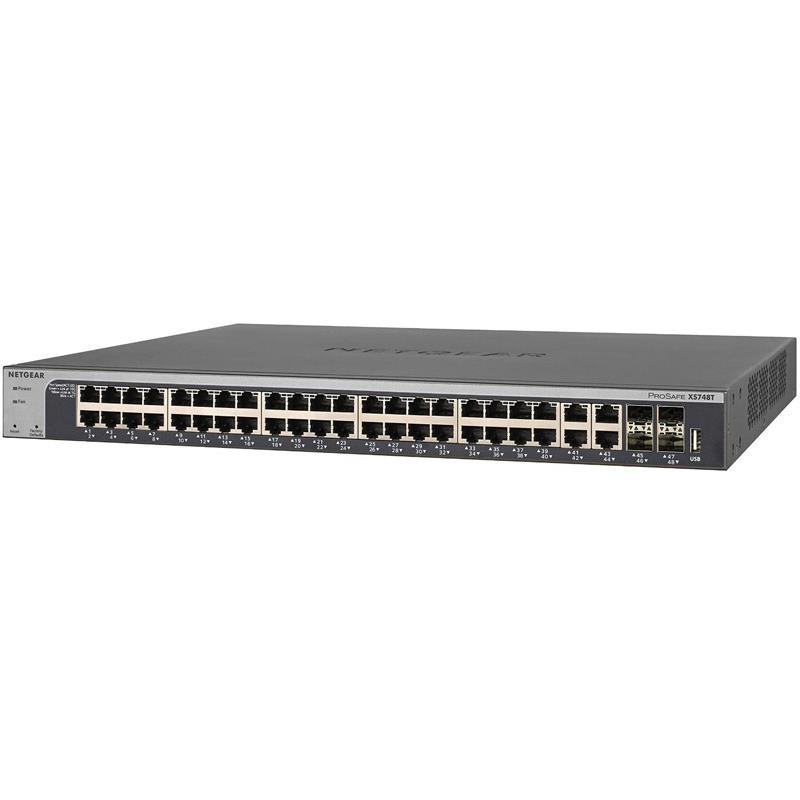

NETGEAR XS748T-100NES ProSafe 48-Port 10-Gigabit Ethernet Smart Managed Switch
• Configurable management VLAN
• LIFETIME 24x7 Online Chat Technical Support
• 10GBASE-T Connections - RJ-45 Ethernet jack
• Quickly & conveniently upgrade or restore firmware
ProSafe 48-Port 10-Gigabit Ethernet Smart Managed Switch - Manageable, 48 x RJ-45, 2 x Expansion Slots, 10/100/1000Base-T, Rack-mountable, Desktop
• 44 x 10-Gigabit Copper + 4 x dedicated 10-Gigabit SFP+ ports for connections to 10G-capable servers and NAS
• Advanced management features with web browser-based management GUI with IPv6 management support
• Powerful L2+/Layer 3 Lite features make them the most cost-effective core switches for SMB and virtualization environment
• LIFETIME Hardware Warranty, LIFETIME Next-Business-Day Replacement Warranty, LIFETIME Chat Technical Support
• Comprehensive networking features such as VLAN, QoS, IGMP and MLD snooping, IPv4 & IPv6 Static Routing, Link Aggregation, ACLs
Extra Specifications for NETGEAR XS748T-100NES ProSafe 48-Port 10-Gigabit Ethernet Smart Managed Switch
| Main Specifications | ||
| Device Type | Switch - 48 ports - L3 Lite - smart | |
| Dimensions (WxDxH) | 17.3 in x 12.2 in x 1.7 in | |
| Enclosure Type | Desktop, rack-mountable 1U | |
| Location | Latin America, North America, Europe | |
| Weight | 13.78 lbs | |
| Bus Speed | 800 MHz | |
| Capacity | ACL: 164, Virtual interfaces (VLANs): 512, IGMP groups: 512, IPv4 routes: 64, IPv6 routes: 64, Priority queues per port: 8, ARP entries: 1024, DHCP snooping entries: 1000 | |
| Networking | ||
| Data Link Protocol | 10 Gigabit Ethernet | |
| Jumbo Support | 10KB | |
| MAC Address Table Size | 16K entries | |
| Performance | Switching fabric bandwidth: 960 Gbps, Forwarding performance (64-byte packet size): 238 Mpps | |
| Ports Qty | 44x 10GBase-T, 4x 10 Gigabit SFP+ | |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS | |
| Routing Protocol | Static IPv4 routing, static IPv6 routing | |
| Status Indicators | Port transmission speed, power, link/activity, fan | |
| Optical Storage | ||
| Buffer Size | 256 MB | |
| Memory | ||
| RAM | 512 MB | |
| Miscellaneous | ||
| Authentication Method | RADIUS, TACACS+ | |
| Encryption Algorithm | TLS 1.0, SSL 2.0, TLS 1.2 | |
| Features | Flow control, ARP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, store and forward, MAC address filtering, Broadcast Storm Control, IP address filtering, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, MLD snooping, reset button, LACP support, LLDP support, Port Security, DHCP client, Energy Efficient Ethernet, Strict Priority Queuing (SPQ), Class of Service (CoS), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, 4 fans, 3MB packet buffer, cable test, layer 2+ switching | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az | |
| cUL, EN 60950, IEC950, UL 1950, EN55024, CSA 22.2 No. 950, EN55022 Class A, CISPR 22, CCC, FCC Part 15 A, C-Tick Class A, SCC, VCCI Class A, TLS v1.2, TLS v1.0, EN 55024 | ||
| Included Accessories | Rubber feet | |
| MTBF | 483,808 hours | |
| Rack Mounting Kit | Included | |
| Expansion / Connectivity | ||
| Interfaces | 4 x 10GBase-X - SFP+ | |
| 1 x USB 2.0 - management | ||
| 44x 10GBase-T - RJ-45 | ||
| Software / System Requirements | ||
| Software Included | Drivers & Utilities | |
| Environmental Parameters | ||
| Max Operating Temperature | 122 F | |
| Min Operating Temperature | 32 F | |
| Operating Humidity | 90% (non-condensing) | |
| Environmental | ||
| Storage Temperature | Min: -4 F - Max: 158 F | |
| Power | ||
| Consumption Operational | 262.8 Watt | |
| Power Device | Internal power supply | |
