| Main Specifications |

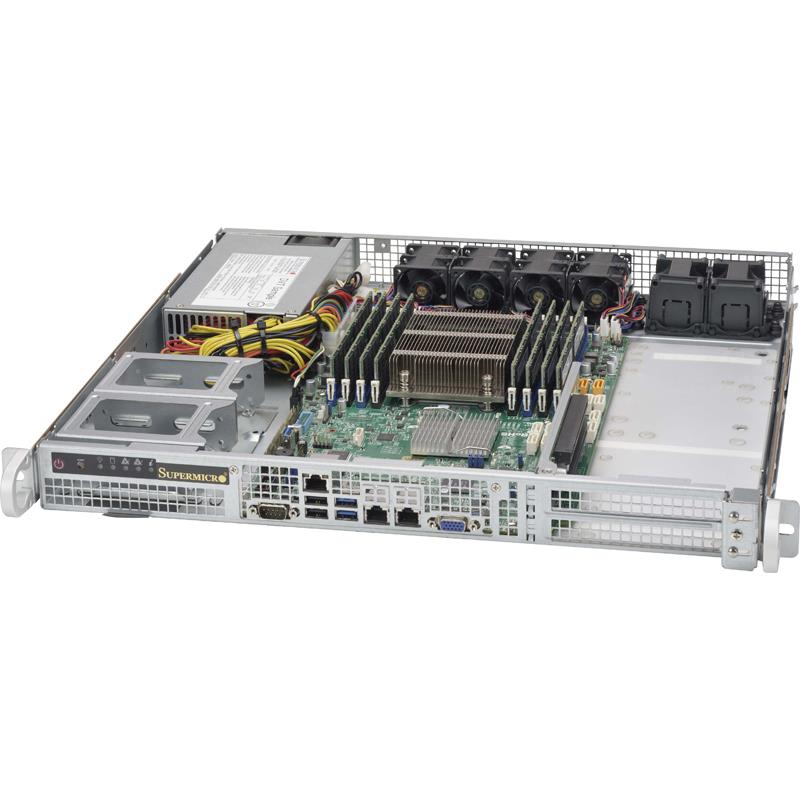

| Device Type | SuperChassis |
| Dimensions (WxDxH) | Height 1.7" (43mm) x Width 17.2" (437mm) x Depth 16.9" (429mm) |
| Enclosure Color | No Paint |
| Form Factor | 1U - Support STD and WIO MB |
| Weight | 16 lb (7.26 kg) |
| Processor Support |
| Processor Support | Supports dual, single Intel / AMD processors |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | Up to 2x Full-height expansion slot(s) |
| Drive Bays |
| Internal | Up to 1x 3.5" fixed drive bay |
| Optional up to 4x 2.5" fixed drive bay with bracket |
| Front Panel |
| Buttons | Power On/Off button, System Reset button |
| LEDs | 2 Network Activity LEDs, Fan Fail/System Over Heat LED, HDD activity LED, Power Status LED |
| System Cooling |
| Fans | Optional 2x fans for AOC cooling |
| 4x 40x56mm PWM fan |
| Operating Environment (System) |
| Operating Temperature Range | Operating Temperature Range: 5C ~ 35C (41F ~ 95F) |
| Non-Operating Temperature Range: -40C ~ 60C (-40F ~ 140F) |
| Operating Relative Humidity Range: 8% ~ 90% (non-condensing) |
| Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) |
| Power Supply |
| Certification | 80PLUS Platinum Level Certified |
| Power Supply | 1U 350W Multi-output power supply Platinum level |
| Regulatory Safety / EMC | BSMI, CCC, CE/EMC, FCC class B, TUV/CB |
| Parts List - (Items Included) |
| Parts | 1x MCP-230-51501-0N, 1x MCP-270-51501-0N, 1x MCP-260-00078-0N, 24x MCP-320-00027-0B, 3x MCP-320-81801-0B, 2x MCP-340-00035-0B |
| Cable(s) | 1x CBL-0160L, 1x CBL-0306L |
| Power Supply Number | 1x PWS-350-1H |
| Front Panel Control | 1x MCP-280-51201-0N |
| Mounting Rails | 1 set MCP-290-00102-0N, 1 set MCP-290-00108-0N |
| Rear Window | 1x MCP-240-51501-0N |
| Bracket(s) | 1x MCP-240-51504-0N |
| Fan(s) | 4x FAN-0157L4 |
