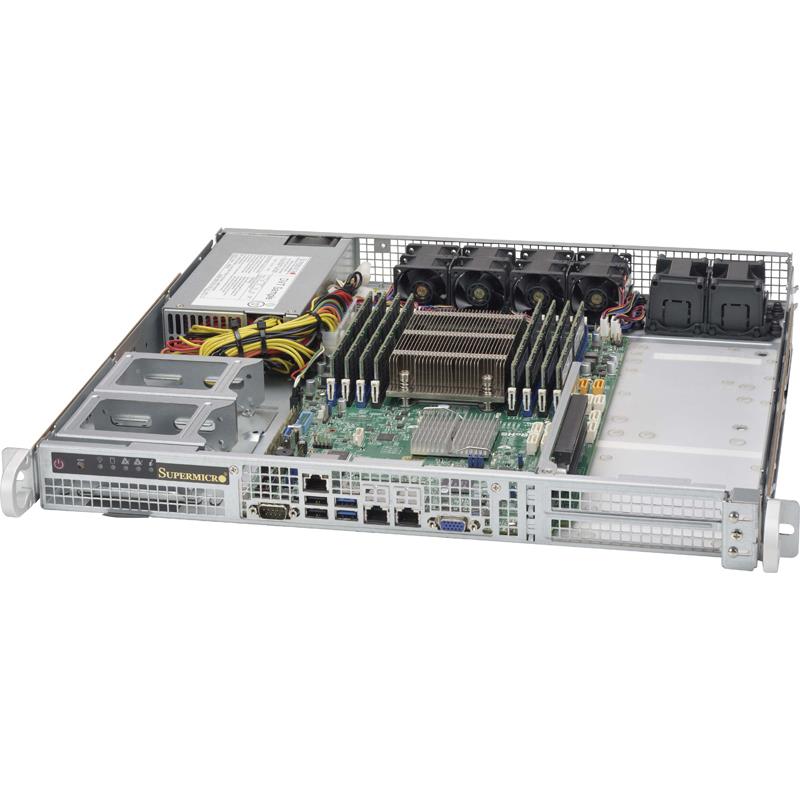

Supermicro CSE-515-350 Server Chassis 1U Rackmount
Rackmount 1U w/ 350W 80 Plus Platinum Certified Power Supply

Supermicro CSE-515-350 Server Chassis 1U Rackmount

  • Design for highly efficient cooling and quiet operation

  • Optimized for Dual and Single Intel and AMD processors

  • Equipped 350W Multi-output power supply Platinum level

  • Includes 2x FH expansion slot, system status LED indicators

Rackmount 1U w/ 350W 80 Plus Platinum Certified Power Supply - Supports STD and WIO MB, for Single Intel / AMD processors - Up to Optional 4x 2.5in fixed with bracket / Up to 1x 3.5in fixed drive bay, Up to Without Universal I/O (UIO) Card: 2 full height expansion slot(s), Mounting Rails Kit - SC515-350 (NO Paint)

$ 403.50$ 403.50403.5USD

$ 403.50

Option not available

PreOrder
24 lb

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    1. Support STD and WIO MB size up to 12”x13”
    2. Optional Up to 4 x 2.5" fixed with bracket, Up to 1 x 3.5" fixed drive bay
    3. 1U 350W Multi-output power supply Platinum level
    4. Up to , 2 full height expansion slot(s)
    5. 4 x 40x56mm PWM fan(s) Optional 2 x fans for AOC cooling

    Extra Specifications for Supermicro CSE-515-350 Server Chassis 1U Rackmount

    Processor Support
    Processor SupportDual and Single Intel® and AMD processors
    Operating Environment (System)
    Operating Temperature Range5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range-40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range8% - 90% (non-condensing)
    Non Operating Relative Humidity Range5% - 95% (non-condensing)
    Power Supply
    CertificationPlatinum Certified
    Power Efficiency93%
    Total Output Power and Input350W with Input 100 - 240Vac
    AC Input Frequency50-60Hz
    Dimensions (L x W x H)180 x 100 x 40 mm
    Output Type24pin ATX
    -12VMax: 0.2A / Min: 0A
    +12VMax: 29A / Min: 0.5A (100Vac - 240Vac)
    +5VMax: 15A / Min: 0.2A
    +3.3VMax: 12A / Min: 0.2A
    +5VsbMax: 3A / Min: 0A
    Product SKUs
    Product SKUsCSE-515-350
    Form Factor
    Form FactorSupport STD and WIO MB size up to 12”x13”
    Dimensions
    Height1.7" (43 mm)
    Width17.2" (437 mm)
    Depth16.9" (429 mm)
    Gross Weight16 lbs (7.26 kg)
    Packaging (W x H x L)27" (686 mm) x 8" (203 mm) x 24" (610 mm)
    Available ColorNo Paint
    Expansion Slots
    Expansion SlotsUp to 2x Full-height expansion slot(s)
    Drive Bays
    Drive BaysUp to 1x 3.5" fixed drive bay
    Optional up to 4x 2.5" fixed drive bay with bracket (required both MCP-220-51402-0N and MCP-220-51401-0N)
    Front Panel
    ButtonPower On/Off button
    System Reset button
    LEDPower status LED
    HDD activity LED
    2 Network Activity LEDs
    Fan Fail/System Over Heat LED
    Systems Cooling
    FansOptional 2x fans for AOC cooling
    4x 40x56mm PWM fan(s)
    Regulatory (Power Supply)
    Power Supply Safety / EMCCCC
    BSMI
    CE/EMC
    TUV/CB
    FCC class B

    Warranty:3 years labor, 1 year parts, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
