| Main Specifications |
| Device Type | SuperChassis |
| Dimensions (WxDxH) | Height 1.7" (43mm) x Width 17.2" (437mm) x Depth 16.9" (429mm) |
| Enclosure Color | No Paint |
| Form Factor | Support STD and WIO MB |
| Weight | 18 lb (8.16 kg) |
| Processor Support |
| Processor Support | Single Intel and AMD processors |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | Up to Without Universal I/O (UIO) Card: 2 full height expansion slot(s) |
| Drive Bays |
| Internal | Up to 2x 2.5" fixed with bracket |
| Front Panel |
| Buttons | Power On/Off button, System Reset button |
| LEDs | 2 Network Activity LEDs, Fan Fail/System Over Heat LED, HDD activity LED, Power Status LED |
| System Cooling |
| Fans | 4x 40x56mm PWM fan, 2x fans for AOC cooling |
| Operating Environment (System) |
| Operating Temperature Range | Operating Temperature Range: 5C ~ 35C (41F ~ 95F) |
| Non-Operating Temperature Range: -40C ~ 60C (-40F ~ 140F) |
| Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) |
| Power Supply |
| Certification | 80PLUS Platinum Level Certified |
| Power Supply | 400W 1U Redundant Power Supplies with PMbus |
| 2x PWS-407P-1R |
| Regulatory (Power Supply) |
| Power Supply Safety / EMC | USA - UL listed, FCC, Canada - CUL listed, Germany - TUV Certified, Europe/CE Mark, EN 60950/IEC 60950-Compliant |
| Parts List |
| Cables | 2x CBL-0160L, 1x CBL-0306L |
| Standard Parts List |

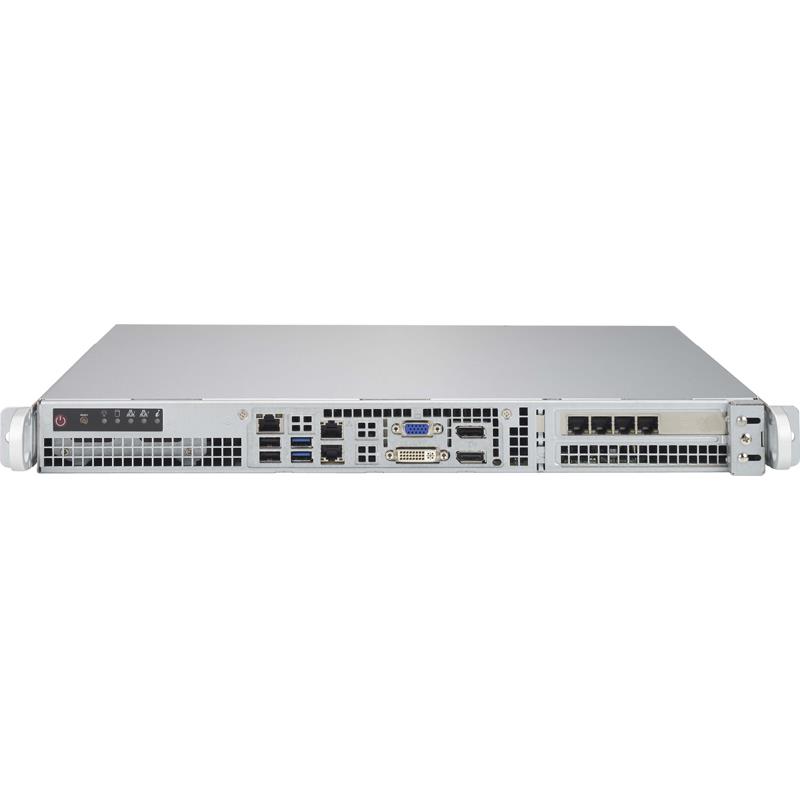

| Chassis | 1x CSE-515-R407 |
| Fan Holder | 3x MCP-320-81801-0B, 2x MCP-340-00035-0B |
| Accessory | 4x FAN-0157L4 |
| Front Panel | 1x MCP-280-51201-0N |
| Power Distributor | 1x PDB-PT514-2824 |
| Rear Window | 1x MCP-240-51503-0N, 1x MCP-240-51504-0N |
| Parts List - (Items Included) |
| Drive Trays | 1x MCP-220-51401-0N |
| Mounting Rails | 1set MCP-290-00102-0N, 1set MCP-290-00108-0N |
| Miscellaneous |
| Compatible With | Motherboards: X10SDV-2C-7TP4F, X10SDV-4C-7TP4F, X10SDV-7TP4F, X10SDV-7TP8F, X10SRM-F, X10SRM-TF |
| Server: 1018D-FRN8T |
