| Motherboard |
| Motherboard | Super X10OBi-CPU |
| Processor/Cache |
| CPU | Intel® Xeon® processor E7-8800 v4/v3 family (up to 24 Cores and 165W TDP) |
| Socket R1 (LGA 2011) |
| Cache | Up to 60 MB |
| System Bus | QPI up to 9.6 GT/s |
| System Memory |
| Memory Capacity | 192x 288-pin DDR4 DIMM slots |
| Supports up to 24TB DDR4 ECC 3DS LRDIMM in 192 DIMM slots |
| Memory Type | 2400*/2133*/1866*/1600/1333MHz ECC DDR4 SDRAM 72-bit, 288-pin gold-plated DIMMs * Run up to 1600MHz depend on setting. |
| DIMM Sizes | 128GB, 64GB, 32GB, 16GB, 8GB, 4GB |
| Memory Voltage | 1.2 V |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | Intel® C602J chipset |
| Storage | Intel C602J including 2 SATA3 (6Gbps, for SATA DOM) + 4 SATA2 (3Gbps, 2 for M.2, 2 for HDD) with RAID 0, 1, 5, 10 |
| Network Controllers (via AOM) | 4-port 10GBase-T Ethernet SIOM (Intel® X550 controller) |
| IPMI (via AOM) | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| ASPEED 2400 |
| Graphics | ASPEED AST2400 BMC |
| Input / Output |
| Storage | 2 SATA2 (HDD) ports |
| 2 SATA2 (M.2) ports |
| 2 SATA3 (SATADOM) ports |
| LAN | 4 10GBase-T ports via SIOM |
| 1 dedicated LAN port for IPMI |
| USB | 2 USB 2.0 ports via KVM port |
| Serial Port / Header | 1 Fast UART 16550 ports: 1 front via KVM port |
| System BIOS |
| BIOS Type | 16MB SPI Flash EEPROM with AMI® BIOS |
| BIOS Features | USB Keyboard support |
| Plug and Play (PnP) |
| PCI 2.2 |
| ACPI up to 3.0 |
| Chassis |
| Form Factor | 7U Rackmountable |
| Rackmount Kit: Comes with the system |
| Model | CSE-718TQC-R4800B |
| Dimensions and Weight |
| Height | 12.2" (310mm) |
| Width | 17.63" (448mm) |
| Depth | 28.87" (733mm) |
| Weight | Gross Weight: 208 lbs (93.35 kg) |
| Available Colors | Black |
| Drive Bays |
| Hot-swap | 12 Hot-swap 2.5" SAS3 drive bays (w/ RAID cards) |
| 20x 2.5" or 6x 3.5" internal drive bays (w/ RAID cards) |
| Expansion Slots |
| PCI-Express | 15 PCI-E 3.0 FH slots total |
| 8 PCIE 3.0 x16 + 7 PCIE 3.0 x8 (in x16) slots |
| Up to 16 U.2 NVMe option available |
| Backplane |
| Backplane | 2x 6-port 12G backplane supports 6x 2.5" SAS3/SATA3 HDD/SSD |
| System Cooling |
| Fans | 8x 9cm Hot-Swap Counter-rotating Rear Fans |
| Power Supply |
| Power Supply | 1600W Redundant Power Supplies with PMBus |
| Total Output Power | 1600W/1000W |
| Dimension (W x H x L) | 73.5 x 40 x 203 mm |
| Input | 100-127Vac / 13 - 9A / 50-60Hz |
| 200-240Vac / 10 - 8A / 50-60Hz |
| +12V | Max: 83.3A / Min: 0A (100-127Vac) |
| Max: 133A / Min: 0A (200-240Vac) |
| 12Vsb | Max: 2.1A / Min: 0A |
| Output Type | 25 Pairs Gold Finger Connector |
| Certification | Titanium Level |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages. |
| 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V |
| FAN | 4-pin fan headers with tachometer status monitoring |
| Low noise fan speed control mode |
| Temperature | Monitoring for CPU and system environment |
| Thermal Control for 9x fan connectors |
| Other Features | Chassis intrusion detection |
| Operating Environment / Compliance |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Product SKUs |

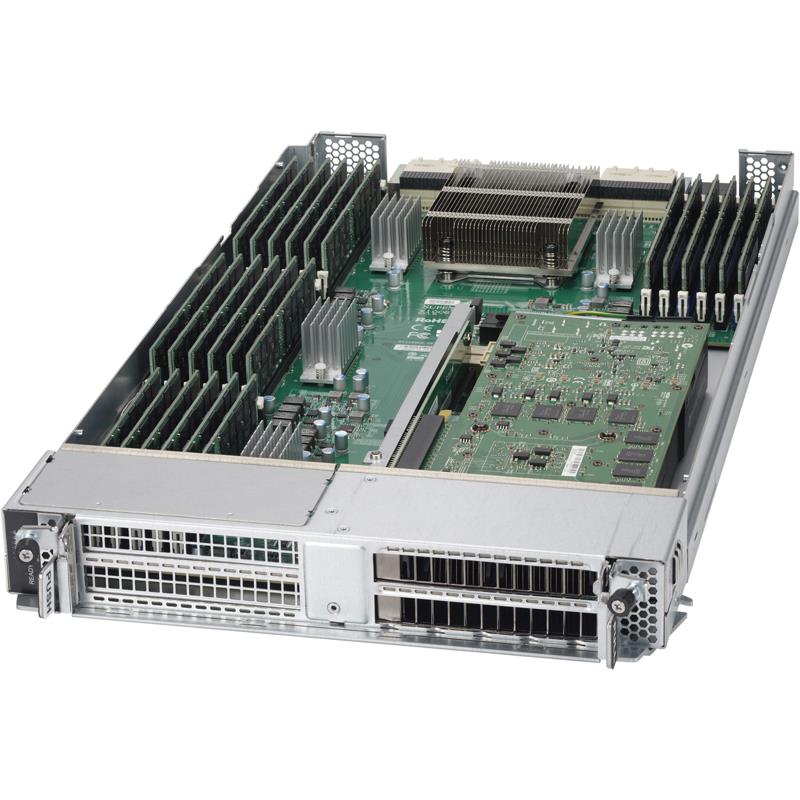

| Product SKUs | SuperServer 7088B-TR4FT (Black) |
