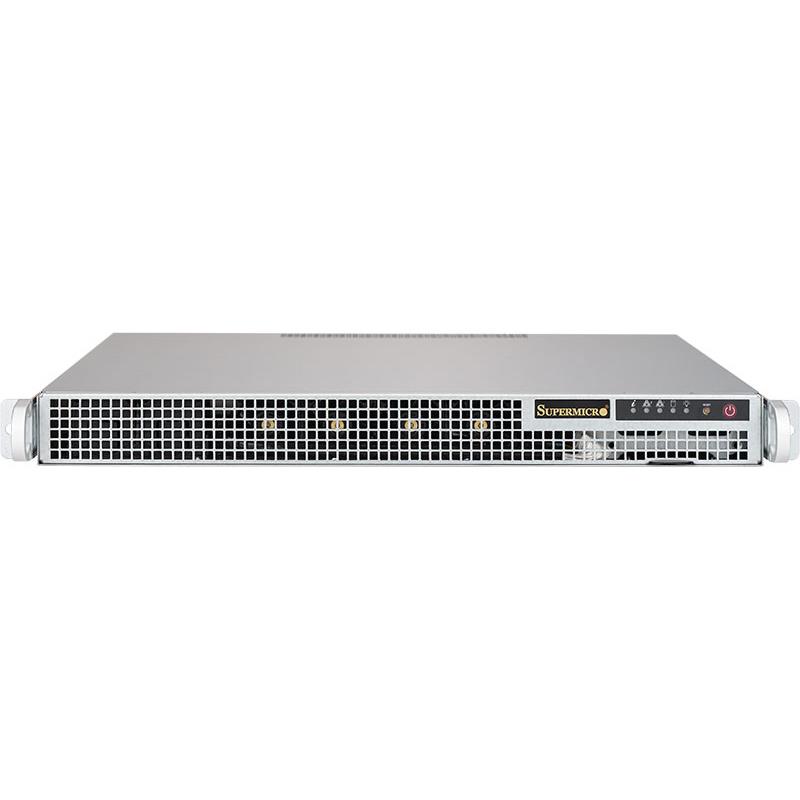

Supermicro SYS-1019S-WR Compact Single Intel Processor Barebone
• Appliance Server, WIO
• Embedded Applications
Barebone 1U Rackmount SuperServer, Support Single Socket H4 (LGA 1151), Supporting Intel Xeon E3-1200 v6/v5, Intel Core i3 7th/6th Generation, Intel Pentium, Intel Celeron Processors. Supports up to 64GB DDR4 ECC UDIMM in 4x 288-pin slots - On-Board: Intel C236 chipset, SATA3 6Gbps via C236 controller (RAID 0, 1, 5, 10), IPMI 2.0, 2x Gigabit LAN, VGA - Includes 2x 2.5in fixed drive bays, Left riser slot: 1x PCI-E 3.0 x16 or 2x PCI-E 3.0 x8, 1x PCI-E 3.0 x4 (in x8 slot), 1x M.2 PCI-E 3.0 x4, 2x Riser Cards (1x RSC-W-68 and 1x RSC-R1UW-E8R), 1x Heatsink (SNK-P0046P), 400W Redundant Platinum Level Power Supply (2x PWS-407P-1R), MBD-X11SSW-F Motherboard, SC514-R407W 1U Chassis (Black)
This product is no longer available.
1. Single Socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium®
2. Intel® C236 chipset
3. 2 fixed 2.5" drive bays
4. Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots
5. 1 PCI-E 3.0 x16 or 2 PCI-E 3.0 x8 Left Riser slot; 1 PCI-E 3.0 x4 (in x8 slot)
6. 2 GbE ports with Intel® i210-AT, 1 dedicated IPMI port
7. 1 VGA, 1 COM, 2 USB 3.0, 2 USB 2.0
8. 400W Redundant Platinum Level power supplies
Extra Specifications for Supermicro SYS-1019S-WR Compact Single Intel Processor Barebone
| Motherboard | ||

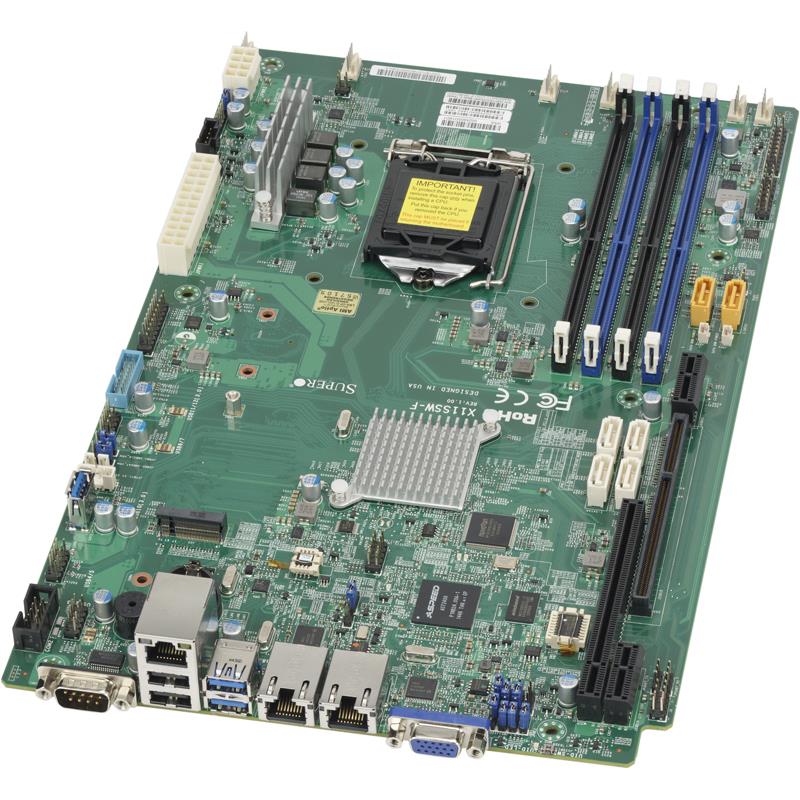

| Motherboard | Super X11SSW-F | |
| Processor/Cache | ||
| CPU | Single Socket H4 (LGA 1151) supports: | |
| CPU TDP up to 80W | ||
| Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen Core™ i3, Intel® Pentium®, Intel® Celeron® processors | ||
| Note | BIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series or 7th Generation Intel® Core™ Processors | |
| System Memory | ||
| Memory Capacity | 4x 288-pin DDR4 DIMM slots | |
| Up to 64GB DDR4 ECC UDIMM | ||
| Memory Type | 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs | |
| DIMM Sizes | 16GB, 8GB, 4GB | |
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices | ||
| Chipset | Intel® C236 chipset | |
| SATA | SATA3 (6Gbps) via C236 controller | |
| RAID 0, 1, 5, 10 support | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | |
| Dual Intel® I210-AT Gigabit Ethernet LAN ports | ||
| Video | ASPEED AST2400 BMC | |
| Input / Output | ||
| SATA | 6 SATA3 (6Gbps) ports | |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| 1 RJ45 dedicated IPMI LAN port | ||
| USB | 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A) | |
| 6 USB 2.0 ports (2 rear + 4 headers) | ||
| Video | 1 VGA port | |
| Serial Port / Header | 2 COM ports (1 rear, 1 header) | |
| SuperDOM | 2 SuperDOM (Disk on Module) ports with built-in power | |
| PC Health Monitoring | ||
| Voltage | Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. | |
| FAN | Status monitor for speed control | |
| Status monitor for on/off control | ||
| Low noise fan speed control | ||
| Pulse Width Modulated (PWM) fan connectors | ||
| Total of 6 fan headers supporting up to 6 fans | ||
| 4 fans with tachometer status monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU thermal trip support | ||
| I 2 C temperature sensing logic | ||
| Thermal Monitor 2 (TM2) support | ||
| PECI | ||
| LED | UID/Remote UID | |
| Suspend static indicator LED | ||
| System Information LED | ||
| Other Features | Chassis intrusion detection | |
| Chassis intrusion header | ||
| RoHS, Halogen Free | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-514-R407W | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 16.9" (429mm) | |
| Package | 23.8" (W) x 8" (H) x 27" (L) | |
| Weight | Gross Weight: 27 lbs (12.25 kg) | |
| Net Weight: 15.5 lbs (7.03 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| System Information LED | ||
| Information LED (temp., status) | ||
| Hard drive activity LED | ||
| 2 Network activity LEDs | ||
| Expansion Slots | ||
| PCI-Express | Left riser slot: 1 PCI-E 3.0 x16 or 2 PCI-E 3.0 x8 | |
| 1 PCI-E 3.0 x4 (in x8 slot) | ||
| M.2 | Key: M-Key | |
| Double Height Connector | ||
| 1x M.2 Interface: PCI-E 3.0 x4 and SATA | ||
| Form Factor: 2260, 2280, 22110 | ||
| Drive Bays | ||
| Internal | 2 fixed 2.5" drive bays | |
| System Cooling | ||
| Fans | 4x 40x56mm PWM Cooling Fans | |
| 2x Optional fans for AOC cooling | ||
| AC/DC240V Input Redundant Power Supplies | ||
| AC/DC240V Input Redundant Power Supplies | 400W 1U Redundant Power Supplies with PMbus | |
| Total Output Power | 400W | |
| Dimension (W x H x L) | 54.5 x 40 x 220 mm | |
| Input | 100 - 240Vac / 6.0 - 3.0A / 50-60Hz | |
| 200 - 240Vdc / 3.4 - 3.2A (CCC Only) | ||
| +12V | Max: 33A / Min: 0.5A | |
| +5V sb | Max: 3A / Min: 0A | |
| Output Type | Gold Finger Connector Mating with Molex 45984-4343 | |
| Certification | Platinum Level Certified | |
| System BIOS | ||
| BIOS Type | 8MB SPI Flash EEPROM with AMI BIOS | |
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 1019S-WR (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11SSW-F | 1 | Super X11SSW-F Motherboard | |
| Motherboard / Chassis | CSE-514-R407W | 1 | 1U Chassis | |
| Air Shroud | MCP-310-19007-0N | 1 | SC811/SC512L/SC512F/SC813M/SC113M/SC513L-410B/SC513L-420B/SC513F, UP X9SRE/I, X9 Mylar Air Shroud, 12"x9.6" MB | |
| Cable 1 | CBL-0082L | 1 | Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG | |
| Cable 2 | CBL-0227L | 1 | SATA, INT, ROUND, ST-RA, 48CM, 26AWG | |
| Label | LBL-0108 | 1 | CAUTION LABEL FOR REDUNDANT PWR SYSTEMS | |
| Manual | MNL-1880-QRG | 1 | X11SSW-F, CSE-514-R407W | |
| Riser Card | RSC-R1UW-E8R | 1 | 1U RHS WIO Riser card with one PCI-E x8 slot | |
| Riser Card | RSC-W-68 | 1 | 1U LHS WIO w/ 2 PCI-E x8 slots or PCI-E x16 slot | |
| Heatsink / Retention | SNK-P0046P | 1 | 1U PASSIVE CPU HS FOR INTEL LGA1156 | |
| Power Supply | PWS-407P-1R | 2 | AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/REACH | |
| Fan | FAN-0156L4 orFAN-0086L4 | 4 | 40x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH40x56 4Pin PWM, Primary for SC815, Secondary for SC818, 825M |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| SATA cable for 2nd HDD | CBL-0227L | $ 17.00 | 1 | 48cm 30AWG SATA straight to RA cable | ||
| GPU Optional Parts | FAN-0141L4 | $ 36.00 | 2 | 40x40x56mm 20.5K RPM, Counter-rotation fan | ||
| GPU Optional Parts | CBL-0424L | $ 23.00 | 1 | 8 pin to Daul 6+2 pin GPU power extenstion, 40cm | ||
| GPU Optional Parts | CBL-0296L | $ 17.00 | 1 | 4pin to 4pin fan extension cord for PWM fan 23cm | ||
| Network Card(s) | AOC-SGP-i2 | 0 | Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2 | |||
| Network Card(s) | AOC-SGP-i4 | 0 | Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350 | |||
| Network Card(s) | AOC-STGN-i2S | 0 | Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES | |||
| Network Card(s) | AOC-STGF-i2S | 0 | Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2 | |||
| Network Card(s) | AOC-STG-B4S | $ 408.00 | 0 | Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S | ||
| Network Card(s) | AOC-STGS-i2T | 0 | Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2 | |||
| TPM security module | AOM-TPM-9665V | $ 43.00 | 1 | TPM 2.0, vertical form factor | ||
| TPM security module | AOM-TPM-9655V | $ 43.00 | 1 | TPM 1.2, vertical form factor | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
