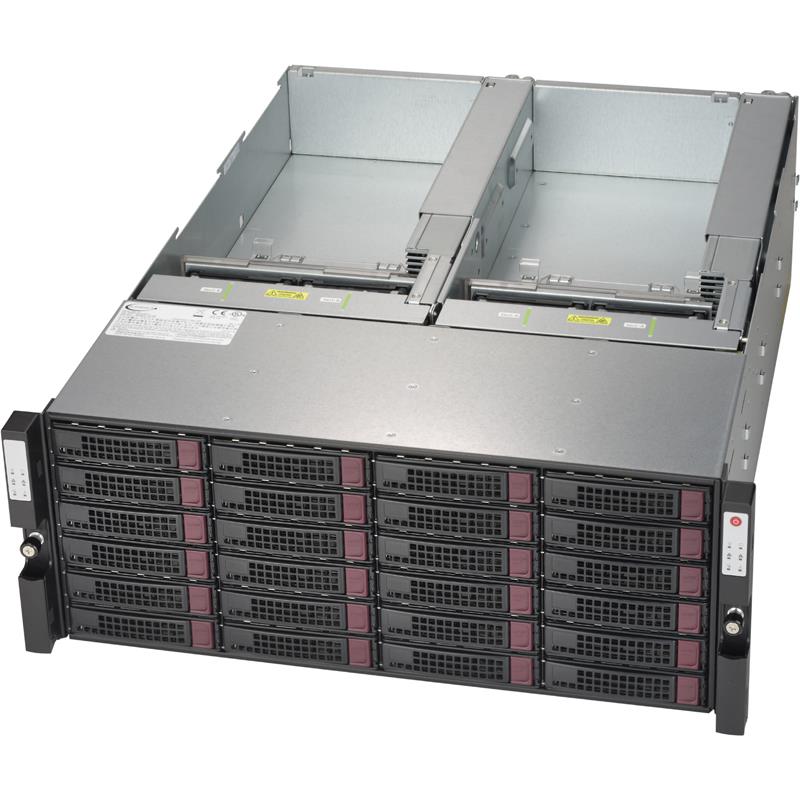

Supermicro SSG-6048R-DE2CR24L 4U Storage Barebone Dual Processor
Barebone 4U SuperStorage Server with Two Nodes - Supports (per Node) : up to two Intel Xeon E5-2600 v4/v3 processors, up to 1.0TB DDR4 ECC 3DS LRDIMM up to 2400MHz, in 8x 288-pin slots - On-Board (per Node) : Intel C612 chipset, SAS3 12Gbps via LSI 3008, SATA3 6Gbps (RAID 0, 1, 5, 10), 2x 10GBase-T LAN with Intel X540 Ethernet Controller, IPMI 2.0, VGA - System includes : 24x 3.5in Hot-swap SAS drive bays with SES2, 4x Heatsinks (SNK-P0048PS), 1600W Redundant 80 Plus Titanium Power Supply (2x PWS-1K68A-1R), MBD-X10DRS-4U 4U Motherboard, SC947ETS-R0NDBP 4U Chassis (Black)
This product is no longer available.
To maintain quality and integrity, this product is sold only as a completely-assembled system (including 4 CPUs, 4 DIMMs, 1 HDD).

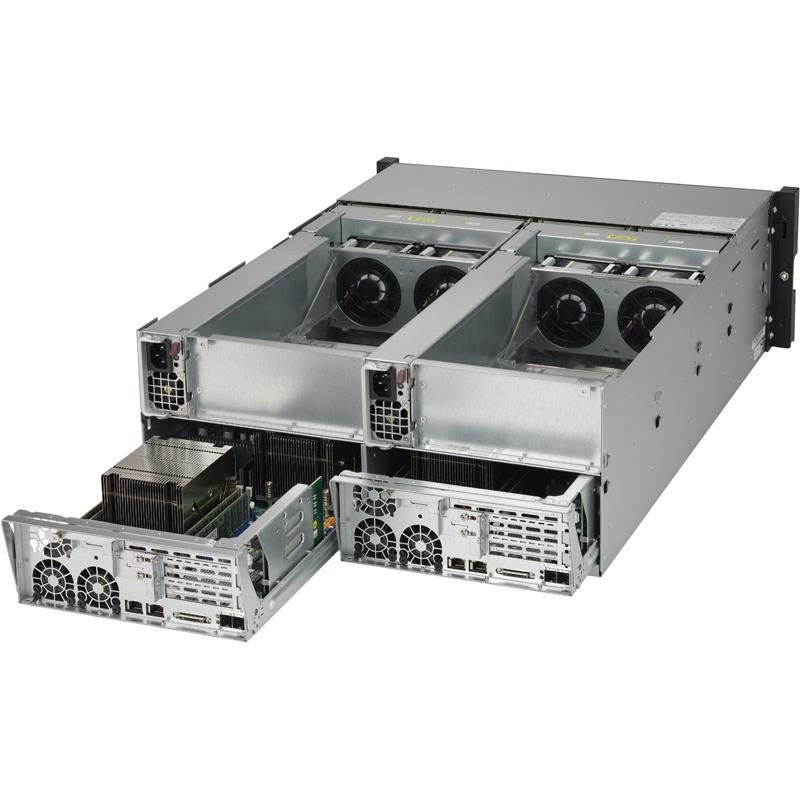

Two hot-pluggable systems (nodes) in a 4U form factor. Each node supports the following:
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 family; QPI up to 9.6GT/s
2.Up to 1TB † ECC 3DS LRDIMM, up to DDR4- 2400 † MHz; 8x DIMM slots
3. 3 PCI-E 3.0 x8 (1 FHHL, 2 LPHL) expansion slots per controller
4. Dual 10GBase-T LAN w/ Intel® X540; 100Mb private Ethernet between controller nodes
5. 24x 3.5" Hot-swap SAS drive bays with SES2
6. SAS3 via Broadcom 3008 controller
7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
8. 4x 8cm and 4x 4cm PWM cooling fans
9. 1600W Redundant Power Supplies Titanium Level (96%)
Extra Specifications for Supermicro SSG-6048R-DE2CR24L 4U Storage Barebone Dual Processor
| Motherboard (Two per System) | ||
| Motherboard (Two per System) | Super X10DRS-4U | |
| Processor/Cache (per Node) | ||
| CPU | Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 145W TDP) * | |
| Dual Socket R3 (LGA 2011) | ||
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache | |
| System Bus | QPI up to 9.6 GT/s | |
| Note | † BIOS version 2.0 or above is required | |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. | ||
| System Memory (per Node) | ||
| Memory Capacity | 8x 288-pin DDR4 DIMM slots | |
| Up to 1TB † ECC 3DS LRDIMM, 256GB ECC RDIMM | ||
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| DIMM Sizes | LRDIMM: 64GB, 32GB | |
| 3DS LRDIMM: 128GB | ||
| RDIMM: 32GB, 16GB, 8GB, 4GB | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| On-Board Devices (per Node) | ||
| Chipset | Intel® C612 chipset | |
| SAS | SAS3 (12Gbps) via Broadcom 3008 | |
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead | |
| Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| Dual 10GBase-T LAN with Intel® X540 Ethernet Controller | ||
| Realtek RTL8201N PHY (dedicated IPMI) | ||
| Graphics | ASPEED AST2400 BMC | |
| Others | PCI-E 3.0 x8 node to node/NTB connectivity | |
| PLX Technology PEX8717; PLX ExpressNIC SDK available from PLX. NDA required | ||
| Input / Output (per Node) | ||
| SAS | 2 JBOD expansion ports per node (mini-SAS HD) | |
| LAN | 2 RJ45 10GBase-T LAN ports | |
| IPMI LAN shared port | ||
| USB | 3 USB 3.0 ports (2 rear + 1 Type A) | |
| VGA | 1 VGA port | |
| Serial Port / Header | 1 COM port (rear) | |
| Chassis | ||
| Form Factor | 4U Rackmount | |
| Model | CSE-947ETS-R0NDBP | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| LEDs | Power LED | |
| Power Fail LED | ||
| 2 Network activity LEDs | ||
| Heartbeat LED | ||
| Overheat/Fan Fail LED | ||
| Expansion Slots (per Node) | ||
| PCI-Express | 3 PCI-E 3.0 x8 (1 FHHL, 2 LPHL) slots per controller | |
| Drive Bays | ||
| Hot-swap | 24x 3.5" Hot-swap SAS drive bays with SES2 | |
| Backplane | ||
| Backplane | SAS3 12Gbps passive backplane, redundant architecture with single expander on each motherboard. Motherboard also support 2x mini-SAS HD connectors for JBOD expansion | |
| System Cooling | ||
| Fans | Redundant cooling | |
| 4x 8cm and 4x 4cm PWM cooling fans | ||
| Power Supply (76mm Width) | ||
| Power Supply (76mm Width) | 1600W 1U Redundant Power Supplies with PMBus | |
| Total Output Power | 800W: 100 – 140Vac | |
| 1600W: 180 – 240Vac | ||
| Dimension (W x H x L) | 76 x 40.4 x 336 mm | |
| Input | 100-140Vac / 10-7A / 50-60Hz | |
| 180-240Vac / 11-8A / 50-60Hz | ||
| +12V | Max: 67A / Min: 0A (100-140Vac) | |
| Max: 133A / Min: 0A (180-240Vac) | ||
| +5Vsb | Max: 1A / Min: 0A | |
| Output Type | 27 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| BIOS Features | USB Keyboard support | |
| Plug and Play (PnP) | ||
| PCI 2.2 | ||
| SMBIOS 2.3 | ||
| ACPI 1.0 / 2.0 | ||
| UEFI | ||
| APM 1.2 | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SuperStorage 6048R-DE2CR24L (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X10DRS-4U | 2 | Super X10DRS-4U Motherboard | |
| Motherboard / Chassis | CSE-947ETS-R0NDBP | 1 | 4U Chassis | |
| Add-on Card / Module | AOM-S3008-L8-SB-P | 2 | AOM-S3008-L8-SB | |
| Backplane | BPN-SAS3-947 | 1 | 24-port 4U SBB SAS3 12Gbps midplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD | |
| Label | LBL-0108 | 1 | CAUTION LABEL FOR REDUNDANT PWR SYSTEMS | |
| Riser Card | RSC-R2US-3E8R | 2 | RSC-R2US-3E8R-O-P | |
| Heatsink / Retention | SNK-P0048PS | 4 | 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB | |
| Cable | CBL-0218L | 2 | 11.5CM KVM/SUVI 36 PIN TO 9 PIN/15 PIN 2USB, 30/28AWG | |
| Cable | CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH | |
| Air Shroud | MCP-310-94701-0N | 1 | Two set plastic air shroud for SC947 | |
| Drive Tray | MCP-220-93703-0B | 24 | SC937 SBB SATA/SAS HDD tray with Broadcom Interposer Bracket | |
| Power Supply | PWS-1K68A-1R | 2 | 1600W Redundant Titanium Power Supply 76m width 27Pair,PBF |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Converter Tray | MCP-220-93707-0B | $ 31.00 | 0 | Hot-swap 3.5" to 2.5" converter drive tray | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
