| Main Specifications |
| Device Type | SuperChassis |
| Dimensions (HxWxD) | Height 1.7" (43mm) x Width 17.2" (437mm) x Depth 19.85" (503mm) |
| Color | Black |
| Form Factor | 1U chassis for motherboard support size 12" x 10", 9.6" x 9.6" |
| Processor Support |
| Processor Support | Supports dual, single Intel / AMD processors |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1 full-height & full-length expansion slot(s) |
| Drive Bays |
| Internal | 4x 3.5" hot-swap SAS/SATA drive bay with SES2 |
| Front Panel |
| Buttons | Power On/Off button, System Reset button |
| LEDs | 2 Network Activity LEDs, Fan Fail/System Over Heat LED, HDD activity LED, Power Status LED |
| System Cooling |
| Fans | 4x 40x28mm PWM fan |
| Optional 2x 40x28mm PWM fan |
| Operating Environment (System) |
| Operating Temperature Range | Operating Temperature Range: 5C ~ 35C (41F ~ 95F) |
| Non-Operating Temperature Range: -40C ~ 60C (-40F ~ 140F) |
| Operating Relative Humidity Range: 8% ~ 90% (non-condensing) |
| Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) |
| Power Supply |
| Certification | 80PLUS Platinum Certified |
| Power Supply | 500W High-Efficiency Power Supply w/PMBus 1.2, I2C, and PFC |
| 1x PWS-505P-1H, 1x PWS-441P-1H |
| Regulatory (Power Supply) |
| Power Supply Safety / EMC | USA - UL listed, FCC, Canada - CUL listed, Germany - TUV Certified, Europe/CE Mark, EN 50950/IEC 50950-Compliant |
| Parts List - (Items Included) |
| Backplane | 1x BPN-SAS3-815TQ |
| Drive Trays | 1x MCP-220-00081-0N, 1x MCP-220-00024-1B, 1x MCP-220-00024-1B, 1x MCP-220-00081-0N |
| Standard Parts List |

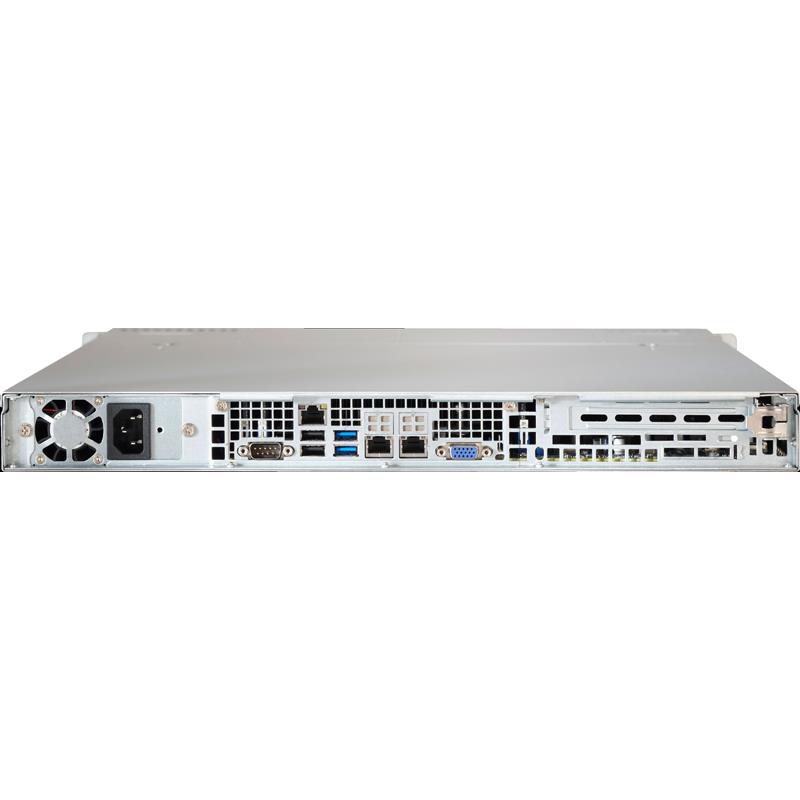

| Chassis | 1x CSE-813MFTQC-505CB |
| Miscellaneous |
| Compatible With | Motherboards: X10DRL-C, X10DRL-CT, X10DRL-iT, X11SSH-CTF, X11SSH-F, X11SSH-LN4F, X11SSH-TF, X11SSi-LN4F, X11SSL, X11SSL-CF, X11SSL-F, X11SSL-nF, X11SSM, X11SSM-F |
