| Main Specifications |
| Device Type | SuperChassis |
| Dimensions (HxWxD) | Height 1.7" (43mm) x Width 17.2" (437mm) x Depth 19.85" (503mm) |
| Color | Black |
| Form Factor | 1U chassis for motherboard support size 12" x 10", 9.6" x 9.6" |
| Processor Support |
| Processor Support | Supports dual, single Intel / AMD processors |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1 full-height & full-length expansion slot(s) |
| Drive Bays |
| Internal | 4x 3.5" hot-swap SAS/SATA drive bay with SES2 |
| Front Panel |
| Buttons | Power On/Off button, System Reset button |
| LEDs | 2 Network Activity LEDs, Fan Fail/System Over Heat LED, HDD activity LED, Power Status LED |
| System Cooling |
| Fans | 4x 40x28mm PWM fan |
| Optional 2x 40x28mm PWM fan |
| 4x FAN-0147L4 |
| Operating Environment (System) |
| Operating Temperature Range | Operating Temperature Range: 5C ~ 35C (41F ~ 95F) |
| Non-Operating Temperature Range: -40C ~ 60C (-40F ~ 140F) |
| Operating Relative Humidity Range: 8% ~ 90% (non-condensing) |
| Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) |
| Power Supply |
| Certification | 80PLUS Platinum Certified |
| Power Supply | 350W AC power supply w/ PFC |
| 1x PWS-350-1H |
| Regulatory (Power Supply) |
| Power Supply Safety / EMC | USA - UL listed, FCC, Canada - CUL listed, Germany - TUV Certified, Europe/CE Mark, EN 50950/IEC 50950-Compliant |
| Parts List - (Items Included) |
| Backplane | 1x BPN-SAS3-815TQ |
| Drive Trays | 4x MCP-220-00075-0B |
| Mounting Rails | 1set MCP-290-00102-0N, 1set MCP-290-00108-0N, 1set MCP-290-00110-0N |
| Parts List |
| Cables | 1x CBL-0071L |
| Standard Parts List |

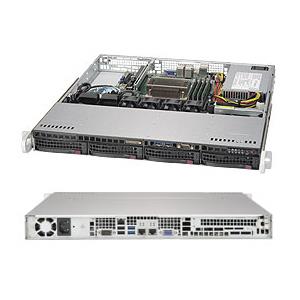

| Chassis | 1x CSE-813MFTQC-350CB |
| Cooling Fan & Accessory | 1x MCP-320-00031-0B |
| Front Panel | 1x FPB-FP813-D |
| Peripheral Drive Covers | 1x CSE-PT93L-B |
