Main Specifications |
Device Type | SuperChassis |
Dimensions (WxDxH) | Height 1.7" (43mm) x Width 17.2" (437mm) x Depth 25.6" (650mm) |
Color | Black |
Form Factor | 1U chassis for motherboard support size of Proprietary 12.3" x 13", Proprietary 8.15" x 13.05" |
Processor Support |
Processor Support | Supports dual, single Intel / AMD processors |
Expansion / Connectivity |
Expansion Slots Total (Free) | 1 low-profile expansion slot(s) |
| 2 full-height & full-length expansion slot(s) |
Expansion Bays Total (Free) | 4x 3.5" hot-swap SAS/SATA |
Drive Bays |
Hot-swap | SAS or enterprise SATA HDD only recommended |
Front Panel |
Buttons | Power On/Off button, System Reset Button, Unit Identification (UID) button |
LEDs | 2 Network Activity LEDs, Fan Fail/System Over Heat LED, HDD activity LED, Power Status LED, Unit Identification (UID) LED |
System Cooling |
Fans | 4x FAN-0156L4 |
| 4x 40x56mm PWM fan |
Operating Environment (System) |
Operating Temperature Range | Operating Temperature Range: 5C ~ 35C (41F ~ 95F) |
| Non-Operating Temperature Range: -40C ~ 60C (-40F ~ 140F) |
| Operating Relative Humidity Range: 8% ~ 90% (non-condensing) |
| Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) |
Power Supply |
Certification | 80PLUS Platinum Certified |
Power Supply | 600W High-Efficiency Power Supply w/PMBus 1.2, I2C, PFC, and Digital Switching |
| 1x PWS-605P-1H |
Regulatory (Power Supply) |
Power Supply Safety / EMC | USA - UL listed, FCC, Canada - CUL listed, Germany - TUV Certified, Europe/CE Mark, EN 60950/IEC 60950-Compliant |
SAS / SATA Backplane |
SAS / SATA Backplane | 1U SAS/SATA Backplane with SES2 support |
| SAS3 12Gb/s support |
Standard Parts List |
Accessory | 2x MCP-120-00053-0N |

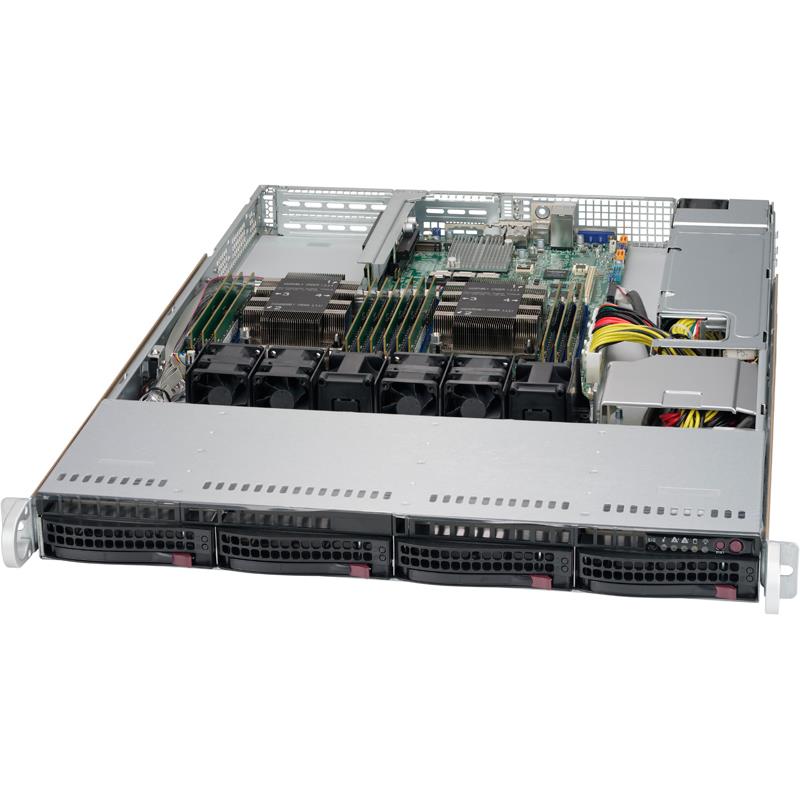

Chassis | 1x CSE-815TQC-605WB |
Fan Holder | 1x CSE-PT0135, 2x MCP-340-00035-0B |
Front Panel | 1x FPB-FP815U |
Peripheral Drive Covers | 1x CSE-PT93L-B |
Rear Window | 1x MCP-240-00097-0N |
Parts List - (Items Included) |
Air Shroud | 1x MCP-310-19001-0N |
Backplane | 1x BPN-SAS3-815TQ |
Drive Trays | 4x MCP-220-00075-0B |
Mounting Rails | 1x MCP-290-00054-0N, 2x MCP-290-00102-0N, 1set MCP-290-00105-0N, 1set MCP-290-00109-0N, 1set MCP-290-00101-0N |
Parts List |
Cables | 1x CBL-0335L, 1x CBL-0160L |
