| Main Specifications |
| Device Type | SuperChassis |
| Dimensions (WxDxH) | Height 3.5" (89mm) x Width 17.2" (437mm) x Depth 25.5" (647mm) |
| Color | Black |
| Form Factor | 2U chassis - supports for maximum motherboard sizes: 13.68" x 13.4", E-ATX 12" x 13", ATX 12" x 10" motherboards |
| Weight | 55 lb (24.95 kg) |
| Processor |
| Compatible Processors | Dual and Single Intel and AMD processors |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 7 low-profile expansion slot(s) |
| Drive Bays |
| Internal | 2x 3.5" fixed drive bay |
| 8x 3.5" hot-swap SAS/SATA drive bay with SGPIO |
| Front Panel |
| Buttons | Power On/Off button, System Reset button |
| LEDs | 2 Network Activity LEDs, HDD activity LED, Power Status LED, Power Fail LED, System Information LED |
| System Cooling |
| Fans | 3 x 8cm (7000 RPM) hot-swap PWM cooling fan |
| 3x FAN-0126L4 |
| Peripheral Drives |
| CD-ROM / DVD-ROM | 1 x Optional slim DVD-ROM drive bay |
| Peripheral Bay | 2 x Optional USB 2.0 ports |
| 1 x Optional COM port tray |
| 2 x Optional USB 3.0 ports |
| SAS / SATA Backplane |
| SAS / SATA Backplane | BPN-SAS3-825TQ (2U 8-Slot 12G Backplane for 8x3.5" SAS/SATA HDD/SSD) |
| Environmental |
| Operating Relative Humidity | 8% - 90% (non-condensing) |
| Environmental Parameters |
| Operating Humidity | 5 - 95% (non-condensing) |
| Operating Environment (System) |
| Non-Operating Temperature Range | -40C - 70C (-40F - 158F) |
| Operating Temperature Range | 5C - 35C (41F - 95F) |
| Power Supply |
| Certification | 80PLUS Platinum Certified |
| Power Supply | 600W High-Efficiency Power Supply w/PMBus 1.2, I2C, PFC, and Digital Switching |
| 1x PWS-605P-1H |
| Regulatory (Power Supply) |
| Power Supply Safety / EMC | USA - UL listed, FCC, Canada - CUL listed, Germany - TUV Certified, Europe/CE Mark, EN 60950/IEC 60950-Compliant |
| Parts List - (Items Included) |
| Air Shroud | 1x MCP-310-29001-0N |
| Backplane | 1x BPN-SAS3-825TQ |
| Drive Trays | 1x MCP-220-00007-01, 8x MCP-220-00075-0B, 2x MCP-220-82502-0B |
| Mounting Rails | 1x MCP-290-00053-0N |
| Parts List |
| Cables | 1x CBL-0071L, 1x CBL-0160L |
| Standard Parts List |

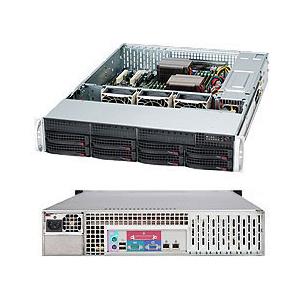

| Chassis | 1x CSE-825TQC-600LPB |
| Front Panel | 1x FPB-FP836-D |
| Rear Window | 1x MCP-240-82506-0N |
