| Main Specifications |

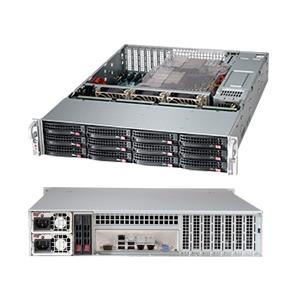

| Device Type | SuperChassis |
| Dimensions (WxDxH) | Height 3.5" (89mm) x Width 17.2" (437mm) x Depth 25.5" (647mm) |
| Color | Black |
| Form Factor | 2U chassis for motherboard support size of 12" x 13" 13.68" x 13" |
| Weight | 55 lb (24.95 kg) |
| Processor Support |
| Processor Support | Supports dual, single Intel / AMD processors |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 7 low-profile expansion slot(s) |
| Drive Bays |
| Hot-swap | 8x SAS3 12Gbps and 4x Hybrid (NVMe/SAS3) 3.5" HDD |
| Internal | Enterprise SATA HDD recommended |
| Front Panel |
| Buttons | Power On/Off button, System Reset button |
| LEDs | 2 Network Activity LEDs, Fan Fail/System Over Heat LED, HDD activity LED, Power Status LED, Unit Identification (UID) LED |
| System Cooling |
| Fans | 3x 8cm high-performance PWM fans |
| 3x FAN-0126L4 |
| Optional 5x 6cm hot-swap cooling fans |
| Miscellaneous |
| Applications | Chassis Intrusion switch |
| Compatible With | Motherboards: X10DRC-LN4+, X10DRC-T4+, X10DRH-C, X10DRH-CLN4, X10DRH-CT, X10DRH-I, X10DRH-iT, X10SRH-CLN4F |
| Environmental |
| Operating Relative Humidity | 8% - 90% (non-condensing) |
| Environmental Parameters |
| Operating Humidity | 5 - 95% (non-condensing) |
| Operating Environment (System) |
| Non-Operating Temperature Range | -40C - 70C (-40F - 158F) |
| Operating Temperature Range | 5C - 35C (41F - 95F) |
| Power Supply |
| Certification | 80PLUS Platinum Certified |
| Power Supply | 920W high-efficiency (94+%) power supply with PMBus |
| 2x PWS-920P-SQ |
| Regulatory (Power Supply) |
| Power Supply Safety / EMC | USA - UL listed, FCC, Canada - CUL listed, Germany - TUV Certified, Europe/CE Mark, EN 60950/IEC 60950-Compliant, CCC |
| Standard Parts List |
| Accessory | Rail Adaptor: MCP-290-00060-0N |
| Chassis | 1x CSE-826BAC4-R920LPB |
| Power Distributor | 1x PDB-PT826-8824 |
| Rear Window | 1x MCP-240-82608-0N |
| Parts List - (Items Included) |
| Air Shroud | 1x MCP-310-29001-0N |
| Backplane | 1x BPN-SAS3-826A-N4 |
| Drive Trays | 12x MCP-220-00075-0B |
| Mounting Rails | 1x MCP-290-00053-0N, 1x MCP-410-00007-0N |
