- Supermicro CSE-826BAC4-R920WB Server Chassis 2U Rackmount

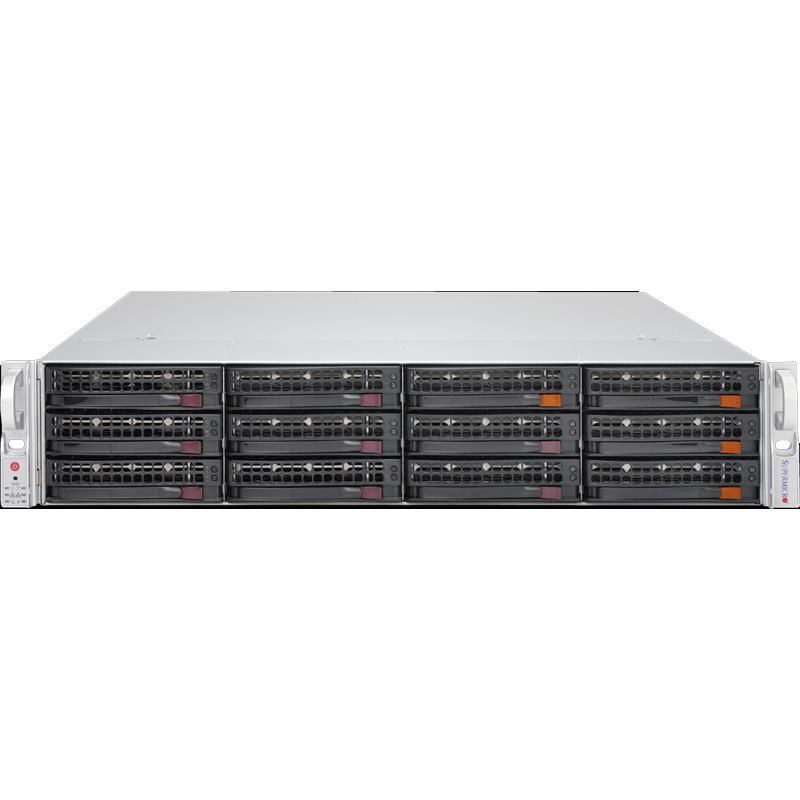

Supermicro CSE-826BAC4-R920WB Server Chassis 2U Rackmount
Rackmount 2U Chassis w/ 920W Platinum Power Supply w/ PMBus for up to Dual Intel / AMD Processors (Motherboard sizes 12in x 13in, 13.68in x 13in - Includes : 8x SAS3 12Gbps and 4x Hybrid (NVMe/SAS3) 3.5in HDD (SAS or enterprise SATA HDD only recommended), 2U Backplane for 3.5in, 4x full height expansion slos, 3x low-profile expansion slots, Rails Kit - SC826BAC4-920WB (Black)
1. 2U chassis support for SMC Proprietary WIO motherboards max. motherboard size - 12" x 13", 13" x 13.68". Support up to 12"x13" MB with rear 2.5" HDD option installed
2. 12 x 3.5" hot-swap drive bay, optional 2 x 2.5" hot-swap drive bay
3. 8x SAS3 12Gbps and 4x Hybrid (NVMe/SAS3) 3.5" HDD
4. 12-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices
5. 1U 920W Redundant Platinum Super Quiet power supply W/PMbus
6. WIO Slots (4x Full-height, Half-length + 3x Low-profile)
7. 3 x 8cm high-performance PWM fan(s)
8. Optional 5 x 6cm 4pin high performance fan(s)
Extra Specifications for Supermicro CSE-826BAC4-R920WB Server Chassis 2U Rackmount
| Processor Support | ||
| Processor Support | Dual and Single Intel® and AMD processors | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset Button | ||
| LEDs | Unit Identification (UID) LED | |
| Power Status LED | ||
| 2 Network Activity LEDs | ||
| HDD activity LED | ||
| Fan Fail/System Over Heat LED | ||
| Operating Environment (System) | ||
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Power Supply | ||
| Certification | Platinum Certified | |
| Power Supply | 1U 920W Redundant Platinum Super Quiet power supply W/PMbus | |
| Power Efficiency | 94% | |
| Total Output Power and Input | 920W with Input 100 - 240Vac | |
| AC Input Frequency | 50-60Hz | |
| Dimensions (L x W x H) | 336 x 76 x 40 mm | |
| Output Type | Backplanes (gold finger) | |
| -12V | Max: NAA | |
| +12V | Max: 75A / Min: 1A (100Vac - 240Vac) | |
| +5Vsb | Max: 4A / Min: 0A | |
| +12Vsb | Max: NAA | |
| Power Distributor | PDB-PT826-8824 | |
| O/P: 12V/135 | ||
| -12V Max: 0.6 | ||
| +3.3V Max: 24 | ||
| +5V Max: 40 | ||
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | CCC | |
| BSMI | ||
| CE/EMC | ||
| TUV/CB | ||
| UL/CUL | ||
| FCC class B | ||
| Product SKUs | ||
| Product SKUs | ||
| Form Factor | ||
| Form Factor | 2U chassis support for SMC Proprietary WIO motherboards max. motherboard size - 12" x 13", 13" x 13.68". Support up to 12"x13" MB with rear 2.5" HDD option installed | |
| Dimensions | ||
| Height | 3.5" (89 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 25.5" (647 mm) | |
| Net Weight | 40 lbs (18.14 kg) | |
| Gross Weight | 55 lbs (24.95 kg) | |
| Packaging (W x H x L) | 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm) | |
| Available Color | Black | |
| Expansion Slots | ||
| Expansion Slots | WIO Slots (4x Full-height, Half-length + 3x Low-profile) | |
| Drive Bays | ||
| Drive Bays | Optional 2 x 2.5" hot-swap drive bay | |
| 12 x 3.5" hot-swap drive bay | ||
| 8x SAS3 12Gbps and 4x Hybrid (NVMe/SAS3) 3.5" HDD | ||
| Backplane | ||
| Backplane | 12-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices | |
| Systems Cooling | ||
| Fans | 3 x 8cm high-performance PWM fan(s) | |
| Optional 5 x 6cm 4pin high performance fan(s) | ||
| System Monitoring | ||
| System Monitoring | Chassis intrusion switch | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Short Rail | MCP-290-00058-0N | $ 103.00 | 0 | Quick-release outer rail for square hole short-depth rack (19"~26.4") | ||
| Fan Kit | MCP-320-82603-0N | $ 134.00 | 0 | 6cm fan cooling module for 826B/216B | ||
| HDD Kit | MCP-220-82609-0N | $ 65.50 | 0 | Rear 2.5 x 2 Hot swap HDD kit for 216B/826B/417B/846X/847B | ||
| Front Bezel | MCP-210-82601-0B | $ 31.00 | 0 | Black Front Bezel for 826 chassis | ||
| Tray(s) | MCP-220-00116-0B | $ 33.50 | 0 | Black gen-5 3.5-to-2.5 NVMe drive tray, Orange tab (for hotswap NVMe drive),RoHS/REACH | ||
| HDD Kit | MCP-220-82616-0N | $ 89.00 | 0 | 12G 2.5x2 Drive Kit w/ Status LED (216B/826B/417B/846X/847B |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
