- Supermicro AOC-MGP-I2M 2-Port Gigabit Ethernet Controller Card - Super I/O Module (SIOM) Form Factor

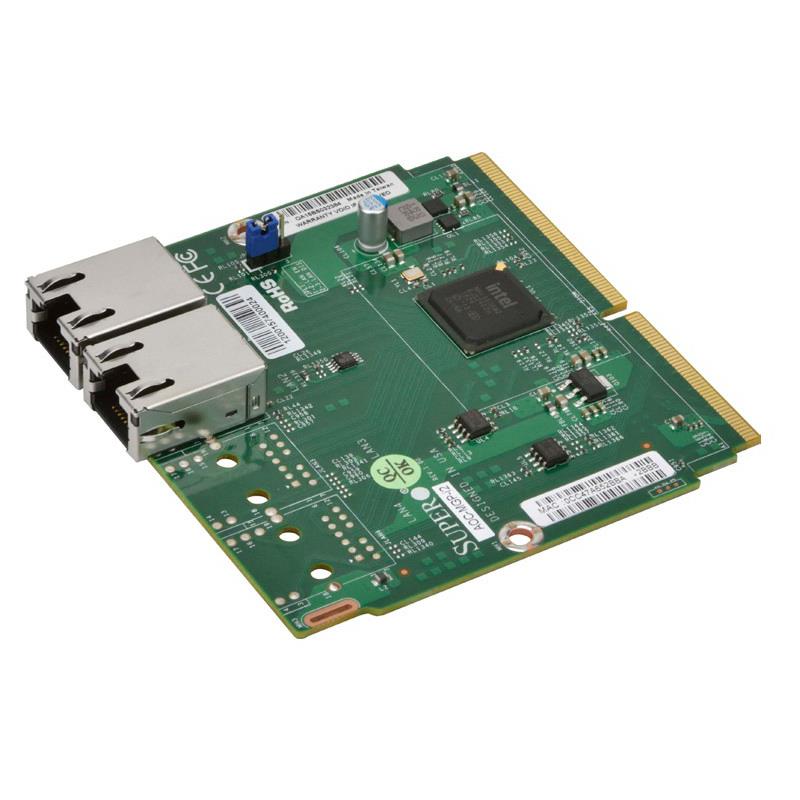

Supermicro AOC-MGP-I2M 2-Port Gigabit Ethernet Controller Card - Super I/O Module (SIOM) Form Factor
• Ideal for 2U/4U TwinPro/Storage Servers
• Super I/O Module (SIOM); Dual RJ45 Ports
• Support for most Network Operating Systems
• VMDq and SR-IOV for Virtualized Environments
2-Port Gigabit Ethernet Controller Card - Super I/O Module (SIOM) Form Factor, Intel i350, Dual RJ45 ports, Intel I/O Acceleration Technology (Intel I/OAT) - Includes Internal bracket for 1U Chassis Can be ordered in bundle with Supermicro System ONLY
• PXE Boot Support
• Jumbo Frames support
• Intel® i350 GbE controller
• iSCSI Remote Boot Support
• Asset Management Features
• NC-SI for Remote Management
• Energy Efficient Ethernet (EEE)
• Dual RJ45 Connectors
• Super I/O Module (SIOM) Form Factor
• Support for most Network Operating Systems
• VMDq and SR-IOV for Virtualized Environments
Extra Specifications for Supermicro AOC-MGP-I2M 2-Port Gigabit Ethernet Controller Card - Super I/O Module (SIOM) Form Factor
| Main Specifications | ||
| Device Type | Ethernet Controller | |
| Form Factor | Super I/O Module (SIOM) | |
| Dimensions (WxDxH) | Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in) (W x D) | |
| Connectivity | ||
| Connectors | Dual RJ45 Ports | |
| Networking | ||
| Controller Type | Intel i350 GbE Controller | |
| Ethernet | IEEE 802.3 auto-negotiation for speed, duplex, and flow control, IEEE 802.3x and 802.3z compliant flow control support, Automatic cross-over detection function (MDI/MDI-X), 1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications Compliant, IEEE 1588 protocol and 802.1AS implementation | |
| Power Management and Efficiency | Energy Efficient Ethernet (EEE), DMA Coalescing reduces platform power consumption, Active State Power Management (ASPM) support, LAN disable function, MAC Power Management controls, Low Power Link Up - Link Speed Control | |
| Virtualization Features | PC-SIG SR-IOV support, VM to VM Packet forwarding (Packet Loopback), Flexible Port Partitioning, IEEE 802.1q VLAN support, IEEE 802.1q advanced packet filtering, Jumbo Frames support | |
| Performance | TCP/UDP, IPv4 and IPv6 checksum offloads to improve CPU usage, Low Latency Interrupts, Tx TCP segmentation offload (IPv4, IPv6) increases throughput and lowers processor usage, Receive Side Scaling (RSS) for Windows environment, Scalable I/O for Linux environments, Intelligent interrupt generation | |
| Management Features | Preboot eXecution Environment (PXE) support, iSCSI Remote Boot Support, Asset Management support on Supermicro® platforms, Controller asset tags such as part number, revision, serial number, and MAC addresses, NC-SI for remote management | |
| Software / System Requirements | ||
| OS Support | Windows Server 2012 R2, 2012, 2008 R2 (x64 Edition), Windows 8.1, 8, 7 (x64 Edition), RedHat Linux, SUSE Linux, FreeBSD, UEFI, VMWare | |
| Power | ||
| Power Consumption | 3.7W | |
| Environmental | ||
| Operating Environment | Operating temperature: 0°C to 55°C (32°F to 131°F) | |
| Storage temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Storage humidity: 90% non-condensing relative humidity at 35°C | ||
| Miscellaneous | ||
| Compatible Motherboards | Supermicro motherboards with Super I/O Module slot | |
| Compatible Servers | Supermicro server systems with Super I/O Module slot | |
| Cables Required | RJ45 Category 5/5e up to 100m | |
| Compliant Standards | RoHS Compliant 6/6, Pb Free | |
| Bracket | 1x BKT-0085L | |
