| Motherboard |
| Motherboard | Super X10SDV-TP8F |
| Processor/Cache |
| CPU | FCBGA 1667 |
| Intel® Xeon® processor D-1518 , 2.2GHz; CPU TDP support 35W |
| Cores / Cache | 4 Cores, 8 Threads / 6MB |
| System Memory |
| Memory Capacity | 4x DDR4 DIMM sockets |
| Supports up to 128GB DDR4 ECC RDIMM |
| Supports up to 64GB DDR4 ECC/non-ECC UDIMM |
| Memory Type | 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM |
| DIMM Sizes | 32GB, 16GB, 8GB, 4GB |
| Memory Voltage | 1.2 V |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | System on Chip |
| SATA | SoC controller for 4 SATA3 (6Gbps) ports; RAID 0,1,5,10 RSTe |
| Network Controllers | Quad 1GbE with Intel I350-AM4 |
| Dual 10G SFP+ from D-1500 SoC |
| Dual 1GbE with Intel I210 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Graphics | Aspeed AST2400 |
| USB 3.0 | Intel® SoC |
| TPM | TPM 2.0 header |
| Input / Output |
| SATA | 4 SATA3 (6Gbps) ports |
| LAN | 2 10G SFP+ LAN ports |
| 1 Dedicated IPMI LAN port |
| 6 1GbE LAN ports |
| USB | 2 USB 3.0 ports (rear) |
| Display | 1 VGA port |
| DOM | 2 SuperDOM (Disk on Module) power connectors |
| TPM | TPM 2.0 header |
| Chassis |
| Form Factor | Mini-1U |
| Model | CSE-E300 |
| Dimensions |
| Width | 10.43" (264.8mm) / 15" (381mm) - pkg. |
| Height | 1.7" (43mm) / 10.87" (276mm) - pkg. |
| Depth | 8.9" (226mm) / 5.59" (142mm) - pkg. |
| Weight | Gross Weight: 7.5 lbs (3.4 kg) |
| Net Weight: 3.45 lbs (1.56 kg) |
| Available Colors | Black |
| Front Panel |
| Buttons | Power On/Off button |
| LEDs | Power LED (Hard drive activity LED) |
| Expansion Slots |
| PCI-Express | 1 PCI-E 3.0 x8 slots |
| M.2 | Interface: PCI-E 3.0 x4 |
| Form Factor: M Key 2242/2280/22110 |
| Support SATA devices |
| Mini PCI-E | Interface: PCI-E 2.0 x1 |
| Support mSATA |
| Drive Bays |
| Internal | 1x 2.5" fixed drive bay with bracket (when AOC area is not occupied) |
| System Cooling |
| Fans | Passive CPU heat sink and max. 3x 40mm chassis fans |
| Power Supply |
| Power Supply | DC Power Adapter |
| System BIOS |
| BIOS Type | 128Mb SPI Flash with AMI BIOS |
| BIOS Features | UEFI 2.4 |
| ACPI 5.0 |
| USB Keyboard support |
| RTC (Real Time Clock) Wakeup |
| PCI 3.0 |
| Hardware BIOS Virus protection |
| SMBIOS 2.8 |
| Management |
| Software | Watch Dog |
| NMI |
| KVM with dedicated LAN |
| SuperDoctor® 5 |
| Intel® Node Manager |
| IPMI 2.0 |
| SUM |
| Power Configurations | +12V DC Power Input |
| ACPI Power Management |
| Control of power-on for recovery from AC power loss |
| CPU thermal trip support for processor protection |
| M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL |
| Fan | Fans with tachometer status monitoring |
| Status monitor for speed control |
| Low noise fan speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Operating Environment / Compliance |
| RoHS | RoHS Compliant |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 0°C to 40°C (32°F to 104°F) |
| Product SKUs |

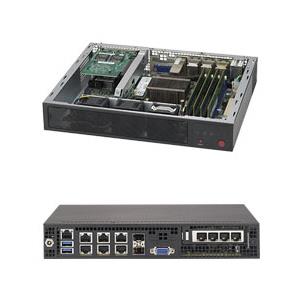

| Product SKUs | SuperServer E300-8D (Black) |
