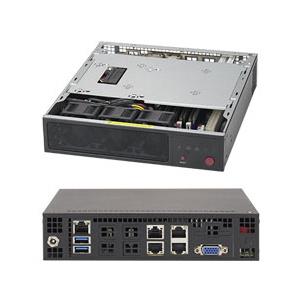

Supermicro SYS-E200-8D Compact Embedded Intel Processor IoT Barebone

• Embedded Networking Applications
• Network Security Appliance
• FireWall Applications
• Virtualization Server

Mini-ITX 1U Server with Intel Xeon processor D-1528 1.9-2.2GHz, SoC controller for single socket FCBGA 1667, 6-Core, 12 Threads, 35W - Supports up to 128GB DDR4 ECC RDIMM up to 2133MHz, in 4x DDR4 Sockets - On-Board : SoC controller for 6 SATA3 (6Gbps) ports, Dual LAN via Intel® i350-AM2 Gigabit Ethernet Dual LAN via SoC 10GBase-T, IPMI 2.0, VGA - Includes : 2.5in fixed drive bay with bracket (Design for 9.5mm thickness HDD with Low Profile Memory), Interface / PCI-E 3.0 x4, Form Factor / M Key 2242/2280/22110, Support SATA devices, 60W DC Power Adapter (MCP-250-10117-0N), MBD-X10SDV-6C-TLN4F Motherboard, SC101F Embedded Mini-ITX Chassis (Black)


    977.00977.00977.0USD

    977.00

    Option not available

    FREE SHIPPING

    This combination does not exist.

    Add to Cart


    1. Intel® Xeon® processor D-1528, Single socket FCBGA 1667; 6-Core, 12 Threads, 35W
    2. System on Chip
    3. 2.5" fixed drive bay with bracket (Design for 9.5mm thickness HDD with Low Profile Memory)
    4. Up to 128GB ECC RDIMM DDR4 2133MHz or 64GB ECC/non-ECC UDIMM in 4 sockets
    5. M.2 PCI-E 3.0 x4 (SATA support), M Key 2242/2280
    6. 2 10GbE, 2 GbE LAN ports, and dedicated LAN for IPMI 2.0
    7. VGA via BMC, 2 USB 3.0 ports
    8. Passive CPU heat sink and 2x 40mm chassis fans
    9. DC power adapter

    Extra Specifications for Supermicro SYS-E200-8D Compact Embedded Intel Processor IoT Barebone

    Product SKUs
    SYS-E200-8DSuperServer E200-8D ( Black )
    Motherboard
    MotherboardSuper X10SDV-6C-TLN4F
    Processor/Cache
    CPUFCBGA 1667
    Intel® Xeon® processor D-1528
    CPU TDP support 35W, 9MB, 6 Cores, 12 Threads, 1.9-2.2GHz
    System Memory
    Memory Capacity4x DDR4 DIMM sockets
    Supports up to 128GB DDR4 ECC RDIMM
    Supports up to 64GB DDR4 ECC/non-ECC UDIMM
    Memory Type2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
    DIMM Sizes32GB, 16GB, 8GB, 4GB
    Memory Voltage1.2 V
    Error DetectionCorrects single-bit errors
    Detects double-bit errors (using ECC memory)
    On-Board Devices
    ChipsetSystem on Chip
    SATASoC controller for 6 SATA3 (6Gbps) ports
    Network ControllersVirtual Machine Device Queues reduce I/O overhead
    Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    1 Realtek RTL8201N PHY (dedicated IPMI)
    Dual LAN via SoC 10GBase-T
    Dual LAN via Intel® i350-AM2 Gigabit Ethernet
    IPMISupport for Intelligent Platform Management Interface v.2.0
    IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    GraphicsAspeed AST2400
    Input / Output
    SATA6 SATA3 (6Gbps) ports
    LAN2 RJ45 Gigabit Ethernet LAN ports
    2 RJ45 10GBase-T ports
    1 RJ45 Dedicated IPMI LAN port
    USB2 USB 3.0 ports (rear)
    Display1 VGA port
    DOM1 SuperDOM (Disk on Module) power connector
    TPMTPM 2.0 header
    Chassis
    Form FactorMini-1U
    ModelCSE-101F
    Dimensions
    Width7.6" (193mm) / 15" (381mm) - pkg.
    Height1.7" (43mm) / 10.87" (276mm) - pkg.
    Depth8.9" (226mm) / 5.59" (142mm) - pkg.
    WeightGross Weight: 6.5 lbs (2.95 kg)
    Net Weight: 3.0 lbs (1.36 kg)
    Available ColorsBlack
    Front Panel
    ButtonsPower On/Off button
    LEDsPower LED (Hard drive activity LED)
    Expansion Slots
    M.2Interface: PCI-E 3.0 x4
    Support SATA devices
    Form Factor: M Key 2242/2280
    Drive Bays
    Internal2.5" fixed drive bay with bracket (Design for 9.5mm thickness HDD with Low Profile Memory)
    System Cooling
    FansPassive CPU heat sink and 2x 40mm chassis fans
    Power Supply
    Power SupplyDC Power Adapter
    System BIOS
    BIOS Type128Mb SPI Flash with AMI BIOS
    BIOS FeaturesUEFI 2.4
    ACPI 5.0
    USB Keyboard support
    RTC (Real Time Clock) Wakeup
    PCI 3.0
    Hardware BIOS Virus protection
    SMBIOS 2.8
    Management
    SoftwareWatch Dog
    NMI
    KVM with dedicated LAN
    SuperDoctor® 5
    IPMI 2.0
    SUM
    Power ConfigurationsPower-on mode for AC power recovery
    ACPI / APM Power Management
    CPU Fan auto-off in sleep mode
    FanFans with tachometer status monitoring
    Status monitor for speed control
    Low noise fan speed control
    Pulse Width Modulated (PWM) fan connectors
    Operating Environment / Compliance
    RoHSRoHS Compliant
    Environmental Spec.Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)
    Operating Temperature: 0°C to 40°C (32°F to 104°F)
    NamePart NumberQuantityDescription
    Motherboard / ChassisMBD-X10SDV-6C-TLN4F1Super X10SDV-6C-TLN4F Motherboard
    Motherboard / ChassisCSE-101F1Embedded Mini-ITX Chassis
    Power AdapterMCP-250-10137-0N1Lockable 12V DC 84W power adapter

    Warranty:3 years labor, 1 year parts, 1 year advanced replacement (doa)
