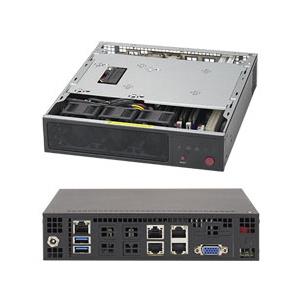

Supermicro SYS-E200-8D Compact Embedded Intel Processor IoT Barebone

• 2x10GbE; 2x GbE LAN ports
• 2.5 fixed drive bay with bracket
• Embedded Networking Applications
• Intel Xeon processor D-1528; 6-Core

Mini-ITX 1U Server with Intel Xeon processor D-1528 1.9-2.2GHz, SoC controller for single socket FCBGA 1667, 6-Core, 12 Threads, 35W - Supports up to 128GB DDR4 ECC RDIMM up to 2133MHz, in 4x DDR4 Sockets - On-Board : SoC controller for 6 SATA3 (6Gbps) ports, Dual LAN via Intel® i350-AM2 Gigabit Ethernet Dual LAN via SoC 10GBase-T, IPMI 2.0, VGA - Includes : 2.5in fixed drive bay with bracket (Design for 9.5mm thickness HDD with Low Profile Memory), Interface / PCI-E 3.0 x4, Form Factor / M Key 2242/2280/22110, Support SATA devices, 60W DC Power Adapter (MCP-250-10117-0N), MBD-X10SDV-6C-TLN4F Motherboard, SC101F Embedded Mini-ITX Chassis (Black)


    859.50 859.50 859.5 USD

    859.50

    Option not available

    FREE SHIPPING

    This combination does not exist.

    Add to Cart


    • System on Chip
    • DC power adapter
    • VGA via BMC, 2 USB 3.0 ports
    • Passive CPU heat sink and 2x 40mm chassis fans
    • M.2 PCI-E 3.0 x4 (SATA support), M Key 2242/2280/22110
    • 2 10GbE, 2 GbE LAN ports, and dedicated LAN for IPMI 2.0
    • Intel® Xeon® processor D-1528; Single socket FCBGA 1667; 6-Core, 12 Threads, 35W
    • Up to 128GB ECC RDIMM DDR4 2133MHz or 64GB ECC/non-ECC UDIMM in 4 sockets
    • 2.5 fixed drive bay with bracket (Design for 9.5mm thickness HDD with Low Profile Memory)

    Extra Specifications for Supermicro SYS-E200-8D Compact Embedded Intel Processor IoT Barebone

    Main Specifications
    Built-in Devices Super X10SDV-6C-TLN4F
    Color Black
    Device Type SuperServer
    Dimensions (WxDxH) Width 7.6" (193mm) / 15" (381mm) - pkg
      Height 1.7" (43mm) / 10.87" (276mm) - pkg
      Depth 8.9" (226mm) / 5.59" (142mm) - pkg
    Form Factor Mini-1U - CSE-101F
    Weight Gross Weight: 6.5 lbs (2.95 kg) - Net Weight: 3.0 lbs (1.36 kg)
    Processor
    Built-In Processor Intel® Xeon® processor D-1528, CPU TDP support 35W, 9MB, 6 Cores, 12 Threads, 1.9-2.2GHz
    Compatible Socket FCBGA 1667
    System Memory
    DIMM Sizes 32GB, 16GB, 8GB, 4GB
    Error Detection Corrects single-bit errors, Detects double-bit errors (using ECC memory)
    Memory Capacity 4x DDR4 DIMM sockets
      Supports up to 128GB DDR4 ECC RDIMM
      Supports up to 64GB DDR4 ECC/non-ECC UDIMM
    Memory Type 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
    Memory Voltage 1.2 V
    On-Board Devices
    Chipset System on Chip
    Graphics Aspeed AST2400
    IPMI Support for Intelligent Platform Management Interface v.2.0
      IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Network Controllers Dual LAN via Intel® i350-AM2 Gigabit Ethernet
      Dual LAN via SoC 10GBase-T
      Virtual Machine Device Queues reduce I/O overhead
      Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
      1 Realtek RTL8201N PHY (dedicated IPMI)
    SATA SoC controller for 6 SATA3 (6Gbps) ports
    Input / Output
    Display Port 1 VGA port
    DOM 2 SuperDOM (Disk on Module) power connectors
    LAN 2 RJ45 Gigabit Ethernet LAN ports
      2 RJ45 10GBase-T ports
      1 RJ45 Dedicated IPMI LAN port
    SATA 6 SATA3 (6Gbps) ports
    TPM TPM 2.0 header
    USB 2 USB 3.0 ports (rear)
    System BIOS
    BIOS Features PCI 3.0, ACPI 5.0, USB Keyboard support, Hardware BIOS Virus protection, SMBIOS 2.8, UEFI 2.4, RTC (Real Time Clock) Wakeup
    BIOS Type 128Mb SPI Flash with AMI BIOS
    Management
    Fan Fans with tachometer status monitoring
      Status monitor for speed control
      Low noise fan speed control
      Pulse Width Modulated (PWM) fan connectors
    Power Configurations ACPI / APM Power Management
      CPU Fan auto-off in sleep mode
      Power-on mode for AC power recovery
    Software IPMI 2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watch Dog
    Front Panel
    Buttons Power On/Off button
    LEDs Power LED (Hard drive activity LED)
    Expansion / Connectivity
    Expansion Slots Total (Free) M.2: Interface: PCI-E 3.0 x4
      M.2: Form Factor: M Key 2242/2280/22110
      M.2: Support SATA devices
    Drive Bays
    Internal 2.5" fixed drive bay with bracket (Design for 9.5mm thickness HDD with Low Profile Memory)
    System Cooling
    Fans Passive CPU heat sink and 2x 40mm chassis fans
    Power Supply
    Power Supply DC Power Adapter
    Operating Environment / Compliance
    Environmental Spec Operating Temperature: 0°C to 40°C (32°F to 104°F)
      Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
      Operating Relative Humidity: 8% to 90% (non-condensing)
      Non-operating Relative Humidity: 5% to 95% (non-condensing)
    RoHS RoHS Compliant
    Parts List - (Items Included)
    Motherboard / Chassis 1x MBD-X10SDV-6C-TLN4F / 1x CSE-101F
    Parts MCP-250-10117-0N
    Miscellaneous
    Features Embedded Networking Applications
      Network Security Appliance
      FireWall Applications
      Virtualization Server
    Warranty:3 years labor, 1 year parts, 1 year advanced replacement (DOA)
    Provider:Manufacturer
    Phone No.:305-640-0300
    E-mail:returnservices@wiredzone.com
    URL:Click here for Manufacturer Website
    Coverage:Replacement or Repair
    Average Service Time:Overnight Replacement for 1 year, 2 weeks afterwards
    If you need Technical Support for this item please contact:

    Provider:Supermicro Computer, Inc.
    Type of Support:FULL
    Phone No: 408-503-8029
    URL:Click here for Manufacturer Website
