• For Twin Systems; 100 Gbps link speed
• Frees PCI-E slot for additional Add-on Cards
• Efficient storage communication with 8K/10K MTUs
• 1x QSFP28 Connector; Designed specifically for HPC

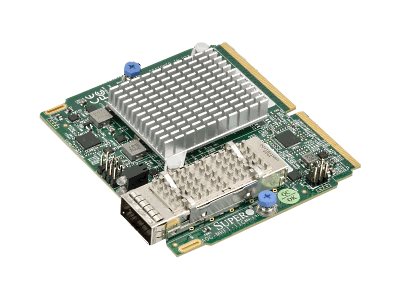

SIOM 1-port QSFP28 (100Gb/port) Omni Path interface adapter, Intel OP HFI ASIC (Wolf River WFR-B) - Includes brackets BKT-0102L and BKT-0104L
• NC-SI for IPMI support
• Asset Management features
• Optimized mechanical and thermal design
• Better cost compared to standard PCI-E networking adapters
• GbE, 10GbE (SFP+ or RJ45), 25GbE, 50GbE, 100GbE, InfiniBand, Omni-Path and more
• Better flexibility and cost effectiveness for upgrading networking capabilities without replacing the entire system or motherboard
| On-Board Devices | ||
| Chipset | Intel OP HFI ASIC (Wolf River WFR-B) | |
| Main Specifications | ||
| Device Type | Mezzanine card - Super I/O Module (SIOM) | |
| Interface (Bus) Type | SIOM | |
| Included Quantity | 1 | |
| Storage Controller | ||
| Channel Quantity | 1x QSFP28 (100Gb/port) | |
| Connectivity Technology | Wired | |
| Data Transfer Rate | 100Gb | |
| Power | ||
| Details | 15W | |
| Miscellaneous | ||
| Cables Type | Supports Copper Cables and Active Optical Cables | |
| Designed For | Supported Motherboards: X10DRT-PS, X10DSC+, X10DSC-TP4S | |
| 2U TwinPro2 Server Systems: SYS-2028TP-HTR-SIOM, SYS-2028TP-HC0R-SIOM, SYS-2028TP-HC1R-SIOM, SYS-6028TP-HTR-SIOM, SYS-6028TP-HC0R-SIOM, SYS-6028TP-HC1R-SIOM | ||
| 2U SuperStorage Simply Double 24-Bay Server: SSG-6028R-E1CR24N, SSG-6028R-E1CR24L | ||
| 2U SuperStorage Simply Double 48-Bay Server: SSG-2028R-NR48N, SSG-2028R-E1CR48N, SSG-2028R-E1CR48L | ||
| 4U SuperStorage HyperScale 60-Bay Server: SSG-6048R-E1CR60N, SSG-6048R-E1CR60L | ||
| 4U SuperStorage HyperScale 90-Bay Server: SSG-6048R-E1CR90L | ||
| Features | Mezzanine card design frees a regular PCI-E slot on the motherboard for additional Add-on Cards (AOCs) | |
| Low Power Consumption | ||
| Supports Omni-Path Switches | ||
| Included Accessories | BKT-0102L, BKT-0104L | |
| Networking | ||
| Remote Management Protocol | Asset Management features with thermal sensor | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
