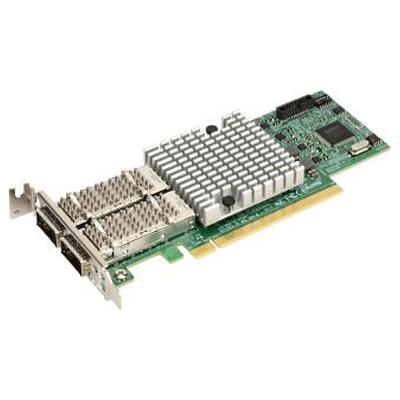

Supermicro AOC-S100G-M2C Standard LP 2-port 100GbE with 2 QSFP28, Mellanox chipset

Standard LP 2-port 100GbE with 2 QSFP28, Mellanox chipset For system integration / bundle, ONLY



    Option not available

    This combination does not exist.

    Add to Cart

    Extra Specifications for Supermicro AOC-S100G-M2C Standard LP 2-port 100GbE with 2 QSFP28, Mellanox chipset

    Main Specifications
    Device TypeEthernet Controller Card
    Form FactorLow-Profile, Short Length Standard
    Interface (Bus) TypePCI-E 3.0 x16
    Weight116.12g (0.2560lb)
    Dimensions (WxDxH)Card PCB dimensions: 16.76cm x 6.89cm (6.6in x 2.71in) (LxW)
    HeightHeight of end brackets: standard – 12cm (4.725in), low-profile – 8cm (3.15in)
    CPU OffloadsRDMA over Converged Ethernet (RoCE), TCP/UDP/IP stateless offload, LSO, LRO, checksum offload, RSS, TSS, HDS, VLAN insertion/stripping. Receive flow steering, Intelligent interrupt coalescence
    Ports2x External ports
    Management FeaturesAsset Management features with thermal sensor, NC-SI for IPMI Support
    Virtualization FeaturesSR-IOV: up to 256 Virtual Functions, SR-IOV: up to 16 Physical Functions per port, 1K ingress and egress QoS levels, Guaranteed QoS for VMs
    Hardware-based I/O VirtualizationSingle Root IOV, Multi-function per port, Address translation and protection, Multiple queues per virtual machine, Enhanced QoS for vNICs, VMware NetQueue support
    Storage OffloadsRAID offload - erasure coding (Reed-Solomon) offload
    RoHSRoHS Compliant 6/6, Pb Free
    Compatible Motherboards and ServersSupermicro motherboards with minimum PCI-E 3.0 x16 expansion slot
    Supermicro server systems with low-profile or full-height PCI-E 3.0 x16 expansion slot
    NC-SI feature is only supported by Supermicro motherboards with corresponding NC-SI connectors
    Environmental Parameters
    Operating Temperature0°C to 55°C (32°F to 131°F)
    Min Storage Temperature-40°C to 70°C (-40°F to 158°F)
    Storage Humidity90% non-condensing relative humidity at 35°C
    Software / System Requirements
    OS RequiredRHEL/CentOS, Windows, FreeBSD, VMware, OpenFabrics Enterprise Distribution (OFED), OpenFabrics Windows Distribution (WinOF-2)
    Power Consumption16.3W
    Expansion / Connectivity
    Expansion Slot(s) Total Free1x PCI-E 3.0 x16 interface
    Interface PortsDual QSFP28 connectors
