  2. Supermicro CSE-E300 Server Chassis 1U Rackmount

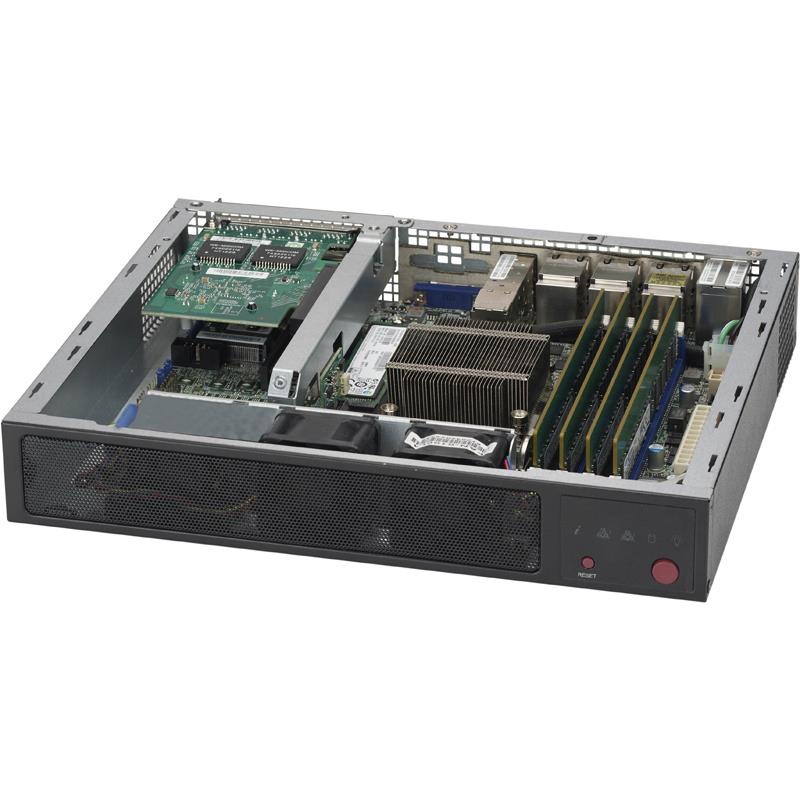

Supermicro CSE-E300 Server Chassis 1U Rackmount

Supermicro CSE-E300 Server Chassis 1U Rackmount

  • Versatile Storage & Expansion – Supports 2x 2.5" internal HDDs or 1x LP AOC

  • Durable Embedded Chassis – Built for reliable embedded appliance deployments

  • Flexible Motherboard Support – Compatible with Flex-ATX and Mini-ITX motherboards

  • Compact 1U Design – Space-saving Desktop Server BOX PC for embedded applications

Flex-ATX Mini 1U Server BOX PC Chassis, NO Power Supply (Optional 60W/80W, DC-DC Power Adapter - MCP-250-10122-0N or MCP-250-10117-0N) - Supports single Intel / AMD processor - Optimized for Flex-ATX and Mini-ITX Motherboard - Embedded Appliance Chassis - Includes 2 x 2.5in fixed drive bay (Support 2x 2.5 internal HDD or 1x Standard LP AOC) - Black

$ 135.00$ 135.00135.0USD

$ 135.00

Option not available

InStock
3 lb

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    1. Compact Desktop 1U Server BOX PC
    2. Embedded Appliance Chassis
    3. Optimized for Flex-ATX and Mini-ITX Motherboard
    4. Support 2x 2.5 internal HDD or 1x Standard LP AOC
    5. Power Switch, Reset Button and LED Indicators

    Extra Specifications for Supermicro CSE-E300 Server Chassis 1U Rackmount

    Processor Support
    Processor SupportSingle Intel® and AMD processors
    Front Panel
    ButtonsPower On/Off button
    System Reset Button
    LEDsUnit Identification (UID) LED
    Power Supply
    Power SupplyOptional 60W/84W, DC-DC Power Adapter or DC/DC Power converter board
    CertificationN/A
    Product SKUs
    Product SKUs
    Form Factor
    Form FactorFlex-ATX 9.0" x 7.25", Mini-ITX chassis
    Dimensions
    Height1.7" (43 mm)
    Width10" (254 mm)
    Depth8.9" (226 mm)
    Net Weight2.76 lbs (1.25 kg)
    Gross Weight3.7 lbs (1.68 kg)
    Packaging (W x H x L)15" (381 mm) x 10.87" (276 mm) x 5.59" (142 mm)
    Available ColorBlack
    Drive Bays
    Drive Bays2 x 2.5" fixed drive bay
    Operating Environment (System)
    Operating Temperature Range0°C - 40°C (32°F - 104°F)
    Non-Operating Temperature Range-20°C - 60°C (-4°F – 140°F)
    Operating Relative Humidity Range10% - 85% (non-condensing)
    Non-Operating Relative Humidity Range10% - 95% (non-condensing)
    Regulatory (Power Supply)
    Power Supply Safety / EMCCCC
    CE/EMC
    TUV/CB
    UL/CUL
    FCC
    NamePart NumberPriceAdd to CartQty.Description
    Power AdapterMCP-250-10117-0N$ 50.50060W DC power adapter with US power cord 18AWG 6ft
    Power AdapterMCP-250-10122-0N$ 87.50084W DC power adapter with US power cord 18AWG 6ft
    IO shieldMCP-260-10108-0B$ 87.500CSE-101F, E300 Rear I/O for X11SSV-Q
    IO shieldMCP-260-10107-0B$ 31.000CSE-101F, E300 Rear I/O for A1SAi And A1SRi
    Chassis partsMCP-290-30002-0B$ 60.000CSE-E300 Rackmount kit
    CableCBL-SAST-1034$ 25.000SATA Splitter Cable with Power for dual SATA HDD
    CableCBL-CUSB-0975$ 26.000RJ45 SERIAL Cabel for Console
    Fan KitFAN-0065L4$ 26.0004028mm 13K RPM 4-PIN PWM FAN
    Fan KitFAN-0100L4$ 26.00040X28MM 4-PIN PWM FAN FOR SC510 & SC511
    Riser CardRSC-RR1U-E8$ 31.500RSC-RR1U-E8
    Power AdapterMCP-250-10128-0N$ 101.000150W DC power adapter with US power cord 18AWG 6ft

    Warranty:3 years labor, 1 year parts, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Supermicro
    Type of Support:FULL
    Phone No.:408-503-8000
    URL:Click here for Manufacturer Website
