- Supermicro CSE-101F Mini-ITX Compact Desktop BOX Chassis, NO Power Supply

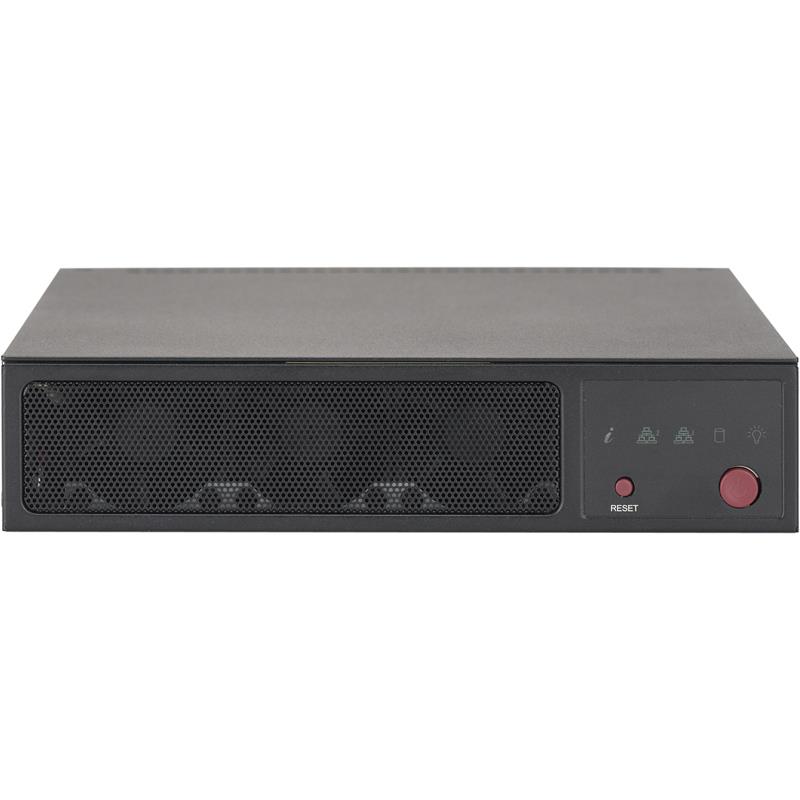

Supermicro CSE-101F Mini-ITX Compact Desktop BOX Chassis, NO Power Supply
Mini-ITX Compact Desktop BOX Chassis, NO Power Supply - Supports single Intel® / AMD processor - Includes 1 x 2.5in fixed drive bay - Optional 60W/80W, DC-DC Power Adapter or DC/DC Power converter board (MCP-250-10122-0N or MCP-250-10117-0N) - SC101F (Black)
1. Compact Desktop BOX Server PC
2. Embedded Appliance Chassis
3. Optimized for Server Mini-ITX Motherboard
4. Support 1x 2.5 fixed drive
5. Power Switch, Reset Button and LED Indicators
Extra Specifications for Supermicro CSE-101F Mini-ITX Compact Desktop BOX Chassis, NO Power Supply
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset Button | ||
| LEDs | Unit Identification (UID) LED | |
| Power Supply | ||
| Power Supply | Optional 60W/84W, DC-DC Power Adapter or DC/DC Power converter board | |
| Certification | N/A | |
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | CCC | |
| CE/EMC | ||
| TUV/CB | ||
| UL/CUL | ||
| FCC | ||
| Operating Environment (System) | ||
| Operating Temperature Range | 0°C - 40°C (32°F - 104°F) | |
| Non-Operating Temperature Range | -20°C - 60°C (-4°F 140°F) | |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) | |
| Non-Operating Relative Humidity Range | 10% - 95% (non-condensing) | |
| Product SKUs | ||
| Product SKUs | ||
| Form Factor | ||
| Form Factor | Mini-ITX 6.75" x 6.75" | |
| Processor Support | ||
| Processor Support | Single Intel® and AMD processors | |
| Dimensions | ||
| Height | 1.7" (43 mm) | |
| Width | 7.6" (193 mm) | |
| Depth | 8.9" (226 mm) | |
| Net Weight | 2.76 lbs (1.25 kg) | |
| Gross Weight | 7.5 lbs (3.4 kg) | |
| Packaging (W x H x L) | 15" (381 mm) x 10.87" (276 mm) x 5.59" (142 mm) | |
| Available Color | Black | |
| Drive Bays | ||
| Drive Bays | 1 x 2.5" fixed drive bay | |
| Systems Cooling | ||
| Fans | 1 x 4cm high performance PWM fan(s) | |
| Optional 2 x 4cm high performance PWM fan(s) | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Power Adapter | MCP-250-10117-0N | $ 50.50 | 0 | 60W DC power adapter with US power cord 18AWG 6ft | ||
| Power Adapter | MCP-250-10122-0N | $ 87.50 | 0 | 84W DC power adapter with US power cord 18AWG 6ft | ||
| IO shield | MCP-260-10107-0B | 0 | CSE-101F, E300 Rear I/O for A1SAi And A1SRi | |||
| Chassis parts | MCP-290-10110-0B | $ 65.50 | 0 | CSE-101F Rackmount kit | ||
| Cable | CBL-CUSB-0975 | $ 26.00 | 0 | RJ45 SERIAL Cabel for Console | ||
| Fan Kit | FAN-0065L4 | $ 26.00 | 0 | 4028mm 13K RPM 4-PIN PWM FAN | ||
| Chassis parts | MCP-290-10108-0B | 0 | Dual system tray for Mini-ITX system |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
