• Redundant Switch; 1 Console port
• Switch access password protection
• Broadcom BCM56151 1GbE Switch
• 10 gigabit optical Ethernet SFP+/copper

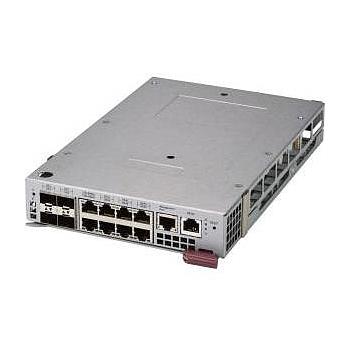

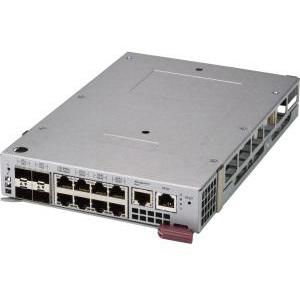

MicroBlade Switch Module - Broadcom BCM56151 1GbE Switch - 4x 10Gbps SFP+ and 8x 1Gbps RJ45 uplinks - 28x 1Gbps downlinks - 1 Console port
• 1 Console port
• 28x 1Gbps Ethernet Downlinks
• Broadcom BCM56151 1Gbps Ethernet Low Latency Switch
• 4x 10Gbps Ethernet SFP+ and 8x 1Gbps Ethernet RJ45 Uplinks
| Main Specifications | ||
| Device Type | MicroBlade Switch Module | |
| Dimensions (WxDxH) | 267 x 159 x 36 mm (10.5x6.25x1.4) | |
| Weight | 3.1lbs/1.4kg | |
| Capacity | Switching Capacity: 176Gbps | |
| Networking | ||
| Advanced Layer 2 Features | Storm control, Flow control, Port mirroring, Uplink Failure Detection | |
| Jumbo Support | Jumbo frames up to 9KB | |
| Layer 2 Features | 4K VLANS, Spanning Tree (802.1D), Rapid Spanning Tree (802.1w), Multiple Spanning Trees (802.1s), IEEE 802.lQ VLANs/ port-based VLANs, IEEE 802.3ad with LACP, IEEE 802.1AB Link Layer Discovery Protocol (LLDP) | |
| Miscellaneous | ||
| Features | Switch access password protection | |
| RADIUS and TACACS+ Authentication | ||
| Optional 10Gbps Ethernet optical/copper | ||
| 1Gbps Ethernet copper | ||
| Encryption Algorithm | SSH, SSL Encryption | |
| Security Features | ||
| Security Features | Access Control Lists (ACLs) | |
| Expansion / Connectivity | ||
| Connections | 4x 10Gbps Ethernet SFP+ and 8x 1Gbps Ethernet RJ45 Uplinks | |
| 28x 1Gbps Ethernet Downlinks | ||
| 1 Console port | ||
| Management | ||
| Management | Industry Standard CLI, Context Sensitive Help, Command Completion, SNMP v1/v2/v3, SSH, Syslog, DHCP (Client), Web-based management interface, NTP, RMON | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
