Supermicro SYS-F618H6-FT+ Twin Barebone Dual CPU, 4-Node
Supports Intel Xeon processor E5-2600 v4/v3
Onboard: SAS3 (12Gbps) via Broadcom 3008 SW RAID
Lan: 2 RJ45 GbE ports, 1 RJ45 Dedicated IPMI LAN port
Up to 2TB DDR4-2400MHz in 16x 288-pin DDR4 DIMM slots

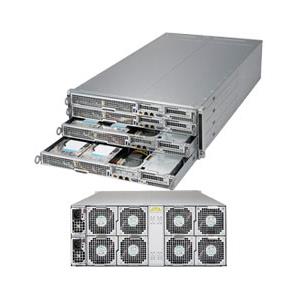

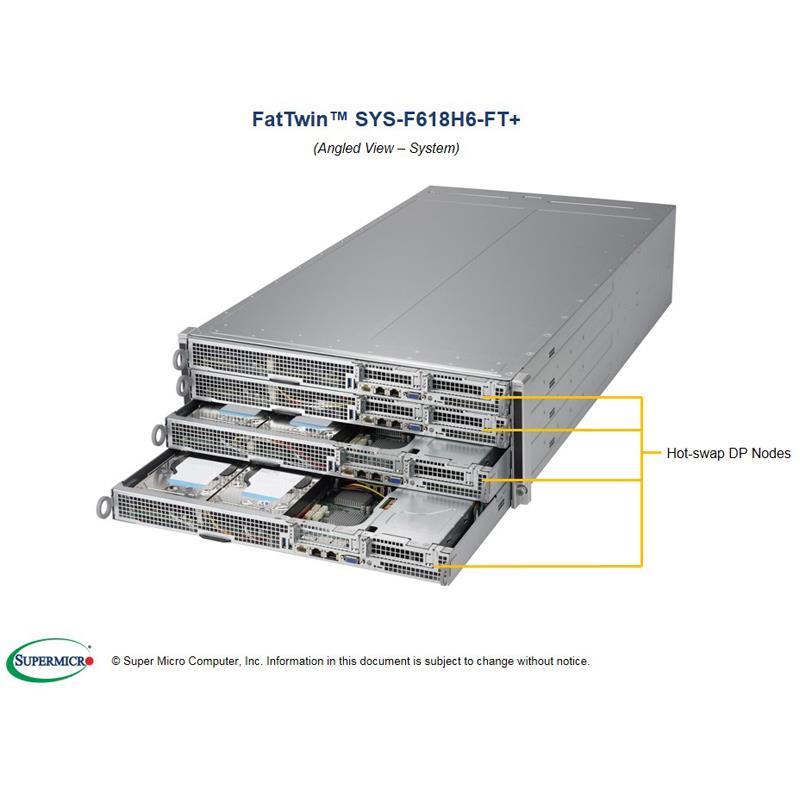

Server 4U Rackmount FatTwin Hadoop with 4 Systems (Nodes) - Each Node Supports : Up to two Intel Xeon E5-2600 v4/v3 series, Up to 2TB DDR4 ECC 3DS LRDIMM up to 2400MHz memory in 16x 288-pin slots - On-Board (per Node) : SAS3 12Gbps via LSI 3008 (SW RAID 0, 1, 10), SATA3 6Gbps (RAID 0, 1, 5, 10), IPMI 2.0, 2x 10GBase-T Ethernet, VGA - Included (per Node) :12x 3.5in Fixed SAS3/SATA3 HDD trays (Optionally 2.5in drives mounted in PCI-E slot), 2x Riser Cards (1x RSC-88-F1, 1x RSC-88-F2), 2x Heatsinks (1x SNK-P0047PS, 1x SNK-P0047PSC) - System includes : 2000W Redundant 80 Plus Titanium Level Certified Power Supply (2x PWS-2K04A-1R), 4x MBD-X10DRFF-CG Motherboards, CSE-F414IS3-R2K04BP 4U Chassis - (Black)
This product is no longer available.
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 family; QPI up to 9.6GT/s
2.Up to 2TB † ECC 3DS LRDIMM, up to DDR4- 2400 † MHz; 16x DIMM slots
3. 2 PCI-E 3.0 x8 (LP) slots
4. Dual GbE LAN via Intel® i350
5. Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
6. 2 USB 3.0 ports, 1 VGA connector
7. 12 Fixed 3.5" SATA3 Drive Bays Optional 2.5" drives mounted in PCI-E
8. 2000W Redundant Power Supplies Titanium Level (96%)
Extra Specifications for Supermicro SYS-F618H6-FT+ Twin Barebone Dual CPU, 4-Node
| Motherboard | ||
| Motherboard | Super X10DRFF-CG | |
| Processor/Cache | ||
| CPU | Dual Socket R3 (LGA 2011) | |
| Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 145W TDP) * | ||
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache | |
| System Bus | QPI up to 9.6 GT/s | |
| Note | † BIOS version 2.0 or above is required | |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. | ||
| System Memory | ||
| Memory Capacity | 16x 288-pin DDR4 DIMM slots | |
| Up to 2TB † ECC 3DS LRDIMM, 1TB ECC RDIMM | ||
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| DIMM Sizes | LRDIMM: 64GB, 32GB | |
| 3DS LRDIMM: 128GB | ||
| RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| On-Board Devices | ||
| Chipset | Intel® C612 chipset | |
| SAS | SAS3 (12Gbps) via Broadcom 3008 | |
| SW RAID 0, 1, 10 support | ||
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead | |
| Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| 1 Realtek RTL8211E PHY (dedicated IPMI) | ||
| Intel® i350 Dual Port Gigabit Ethernet | ||
| Graphics | ASPEED AST2400 BMC | |
| Input / Output (per node) | ||
| SAS | 8 SAS3 (12Gbps) ports | |
| SATA | 10 SATA3 (6Gbps) ports | |

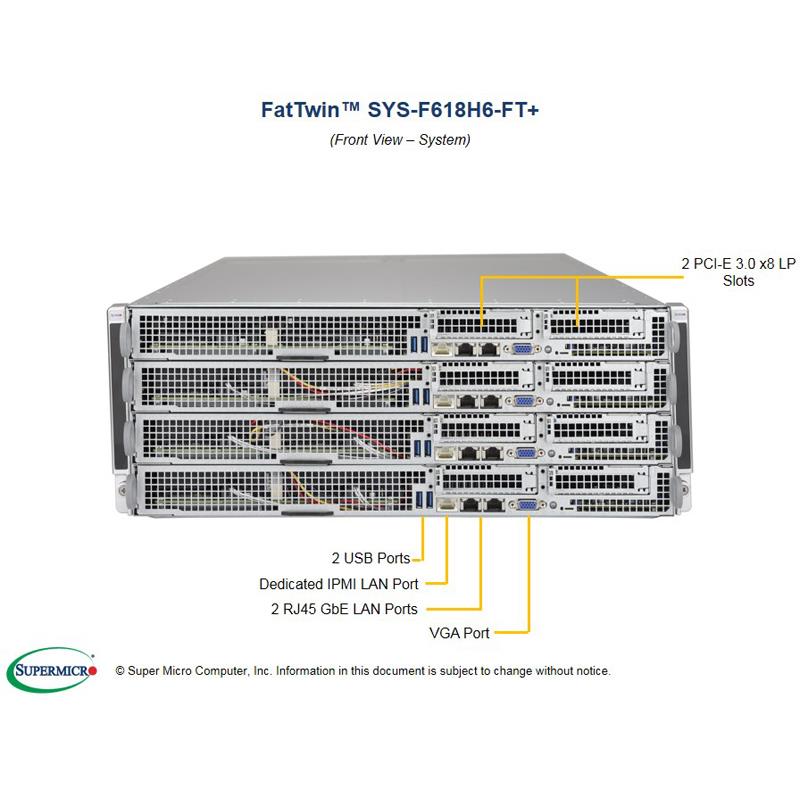

| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2 RJ45 GbE ports | ||
| USB | 2 USB 3.0 ports | |
| VGA | 1 VGA connector | |
| Chassis | ||
| Form Factor | 4U Rackmount | |
| Model | CSE-F414IS3-R2K04BP | |
| Dimensions | ||
| Width | 17.63" (448mm) | |
| Height | 6.96" (177mm) | |
| Depth | 35" (889mm) | |
| Package | 25.6" (W) x 11.8" (H) x 48.0" (D) | |
| Weight | Gross Weight: 240 lbs (108.86 kg) | |
| Net Weight: 200 lbs (90.72 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| UID button | ||
| LEDs | 2 Network activity LEDs | |
| Power status LED | ||
| Expansion Slots (per node) | ||
| PCI-Express | 2 PCI-E 3.0 x8 Low-profile via riser card | |
| Drive Bays (per node) | ||

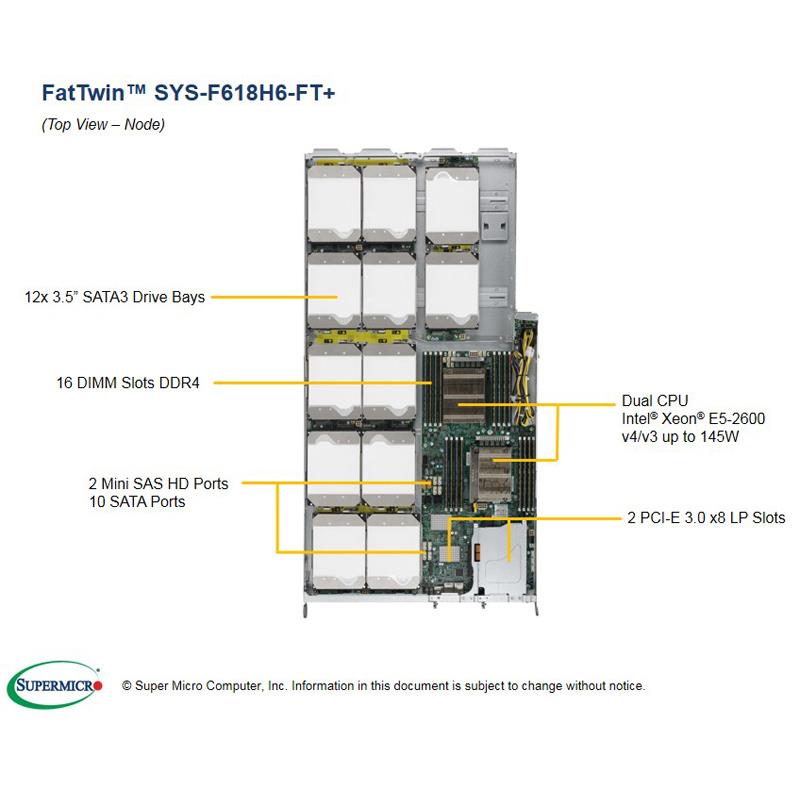

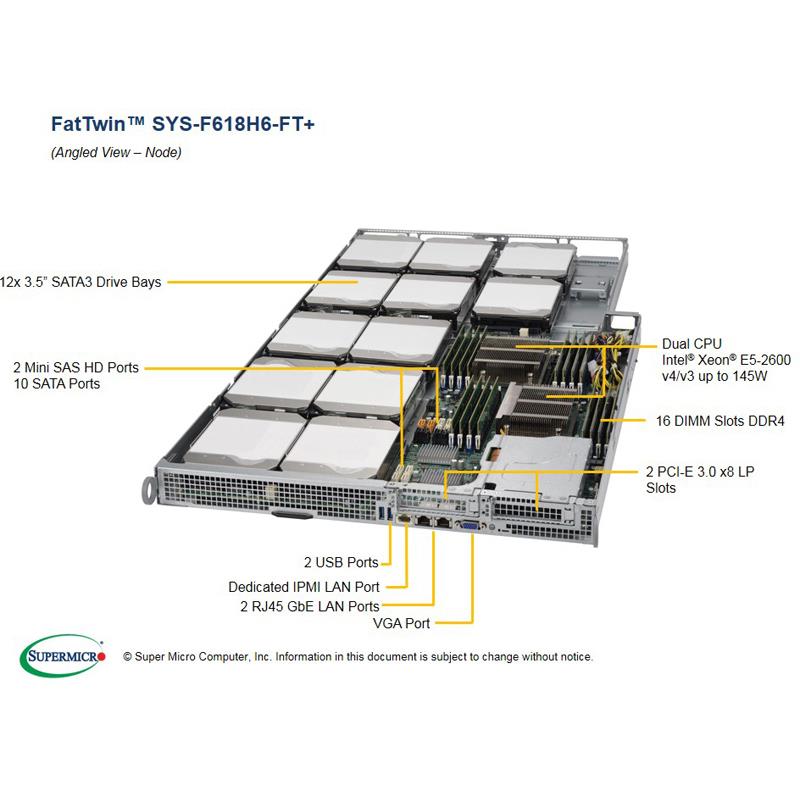

| Fixed | 12 Fixed 3.5" SATA3 drive bays | |
| Optional 2.5" drives mounted in PCI-E slot | ||
| System Cooling | ||

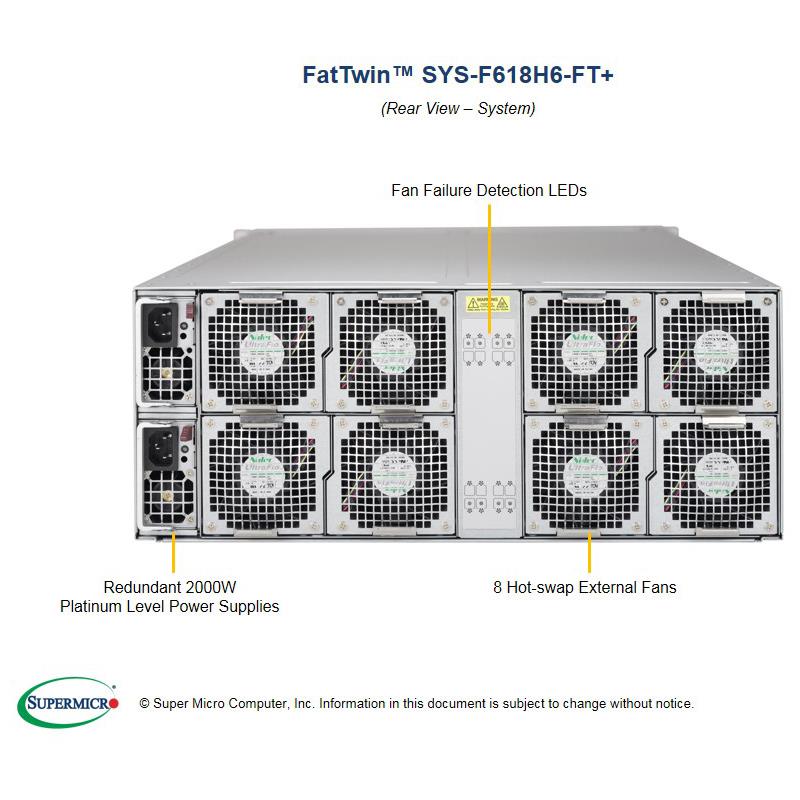

| Fans | 8x 8cm heavy duty fans and PWM fan speed control | |
| Power Supply (76mm Width) | ||
| Power Supply (76mm Width) | 2000W Redundant Power Supplies with PMBus | |
| Total Output Power | 1000W: 100 – 127Vac | |
| 1800W: 200 – 220Vac | ||
| 1980W: 220 – 230Vac | ||
| 2000W: 230 – 240Vac | ||
| 2000W: 200 – 240Vdc (UL/cUL only) | ||
| Dimension (W x H x L) | 76 x 40 x 336 mm | |
| Input | 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz | |
| 1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz | ||
| 2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz | ||
| 2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only) | ||
| 1000W: 100-127 Vac / 12-9.5 A / 50-60 Hz | ||
| +12V | Max: 166.7A / Min: 0A (200-240 Vac) (UL/cUL only) | |
| Max: 83.3A / Min: 0A (100-127 Vac) | ||
| Max: 150A / Min: 0A (200-220 Vac) | ||
| Max: 165A / Min: 0A (220-230 Vac) | ||
| Max: 166.7A / Min: 0A (230-240 Vac) | ||
| +5Vsb | Max: 1A / Min: 0A | |
| Output Type | 27 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| BIOS Features | USB Keyboard support | |
| Plug and Play (PnP) | ||
| PCI 2.2 | ||
| SMBIOS 2.3 | ||
| ACPI 1.0 / 2.0 | ||
| UEFI | ||
| APM 1.2 | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SuperServer F618H6-FT+ | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X10DRFF-CG | 4 | Super X10DRFF-CG Motherboard | |
| Motherboard / Chassis | CSE-F414IS3-R2K04BP | 1 | 4U Chassis | |
| Backplane | BPN-ADP-F418L | 4 | BPN;SASADP;SAS827-H8;H8DTT;cable req | |
| Backplane | BPN-SAS-801T-A1 | 8 | 1-port 1U CSE-801 cold storage backplane with thermistor and individual HDD power cycle, support up to 1x 3.5-inch SAS2/SATA3 HDD/SSD | |
| Backplane | BPN-SAS-801T-A2 | 4 | 2-port 1U CSE-801 backplane with thermistor and individual HDD power cycle, support up to 2x 3.5-inch HDD/SSD | |
| Backplane | BPN-SAS-801T-A4 | 8 | 4-port 1U CSE-801 backplane with thermistor and individual HDD power cycle, support up to 4x 3.5-inch HDD/SSD | |
| Cable 1 | CBL-0481L | 4 | SATA,INT,ROUND,ST-ST,81CM,30AWG | |
| Cable 2 | CBL-OTHR-0758 | 8 | INT P0.3 40p to 40p HS FPC 85 ohms impedance,11cm,0.2mm thick,RoHS/REACH | |
| Cable 3 | CBL-PWCD-0578 | 2 | PWCD,US,IEC60320 C14 TO C13,3FT,14AWG | |
| Cable 4 | CBL-PWEX-0821 | 4 | PWYCB,2X4F/GPU to 3 2X2F,P4.2, 36/54/65CM, 18AWG, 5/12V | |
| Cable 5 | CBL-PWEX-0822 | 4 | PWYCB,2X4F/GPU to 2 2X2F,P4.2,39/41CM+2 RA SATA PWR 29CM,18G | |
| Cable 6 | CBL-SAST-0556 | 4 | MINI SAS HD-4 SATA,6G,INT,90/90,ST 75/75CM,75CM SB,30AWG | |
| Cable 7 | CBL-SAST-0616 | 4 | MINI SAS HD-4 SATA,6G,INT,50CM,50CM SB,30AWG | |
| Cable 8 | CBL-SAST-0639 | 4 | SATA,INT,ROUND,ST-RA,31CM,30AWG | |
| Cable 9 | CBL-SAST-0641 | 8 | SATA,INT,ROUND,ST-RA,45CM,30AWG | |
| Riser Card | RSC-88-F1 | 4 | LHS Riser Card with PCI-Ex8,RoHS/REACH(F1) | |
| Riser Card | RSC-88-F2 | 4 | RoHS/REACH LHS 1U PCI-E x8 (F2) | |
| Heatsink / Retention | SNK-P0047PS | 4 | 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB | |
| Heatsink / Retention | SNK-P0047PSC | 4 | 1U Passive Front CPU Heat Sink w/ a Side Air Channel for X9, X10 Systems Equipped with a Narrow ILM MB |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| HDD Bracket | MCP-240-00134-0N | $ 28.50 | 2/node | FIXED 2.5 HDD bracket for add-on-card slot(2 CBL-0734L per node required) | ||
| HDD Bracket | MCP-120-00096-0N | $ 24.50 | 1/node | Riser card bracket | ||
| HDD Bracket | MCP-120-00097-0N | $ 24.50 | 1/node | Riser card bracket | ||
| Software | SFT-OOB-LIC • | 4 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 4 | DataCenter Management Package (per node license) | |||
| AOC | AOM-TPM-9655V-S | $ 43.00 | 0 | Based on AOM-TPM-9655V with Server TXT package,RoHS/REACH | ||
| AOC | AOM-TPM-9665V-S | $ 43.00 | 0 | Verical TPM TCG 2.0 Provisioned for server,RoHS/REACH |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
