| Main Specifications |
| Built-in Devices | Super K1SPE |
| Dimensions (WxDxH) | Height 18.1" (460mm) x Width 7.9" (201mm) x Depth 19.4" (493mm) |
| Color | Black |
| Form Factor | Tower - CSE-GS5A-753B |
| System Type | SuperWorkstation |
| Weight | Net Weight: 28 lbs (12.7 kg) - Gross Weight: 35 lbs (15.88 kg) |
| Processor |
| Compatible Socket | Socket P (LGA 3647) |
| Cache | Up to 72 Cores |
| 16GB MCDRAM on package |
| Compatible processor | Intel Xeon Phi x200 Processor, CPU TDP support up to 260W |
| System Memory |
| DIMM Sizes | RDIMM: 32GB, 16GB, 8GB, 4GB |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
| Memory Capacity | 6x 288-pin DDR4 DIMM slots |
| Up to 192GB ECC RDIMM |
| Memory Voltage | 1.2 V |
| Cache Memory |
| Memory Type | 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit (RDIMM) |
| On-Board Devices |
| Chipset | Intel C612 chipset |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Nuvoton WPCM450 BMC |
| Network Controllers | Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| Intel I350 Dual port Gigabit Ethernet |
| USB | 6 USB 3.0 ports (4 rear + 2 front) |
| Input / Output |
| SATA | RAID 0, 1, 5, 10 support |
| 10 SATA3 (6Gbps) ports |
| SATA3 (6Gbps) via C612 controller |
| VGA | 1 VGA port |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports |
| 1 Dedicated IPMI LAN port |
| Others | 1 COM port (header) |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1 PCI-E 3.0 x4 slot |
| 2 PCI-E 3.0 x16 slots |
| System BIOS |
| BIOS Features | Plug and Play (PnP), APM 1.2, DMI 2.3, PCI 2.3, ACPI 1.0 / 2.0 / 3.0 / 4.0, USB Keyboard support, Hardware BIOS Virus protection, SMBIOS 2.7.1, UEFI 2.3.1, RTC (Real Time Clock) Wakeup |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |

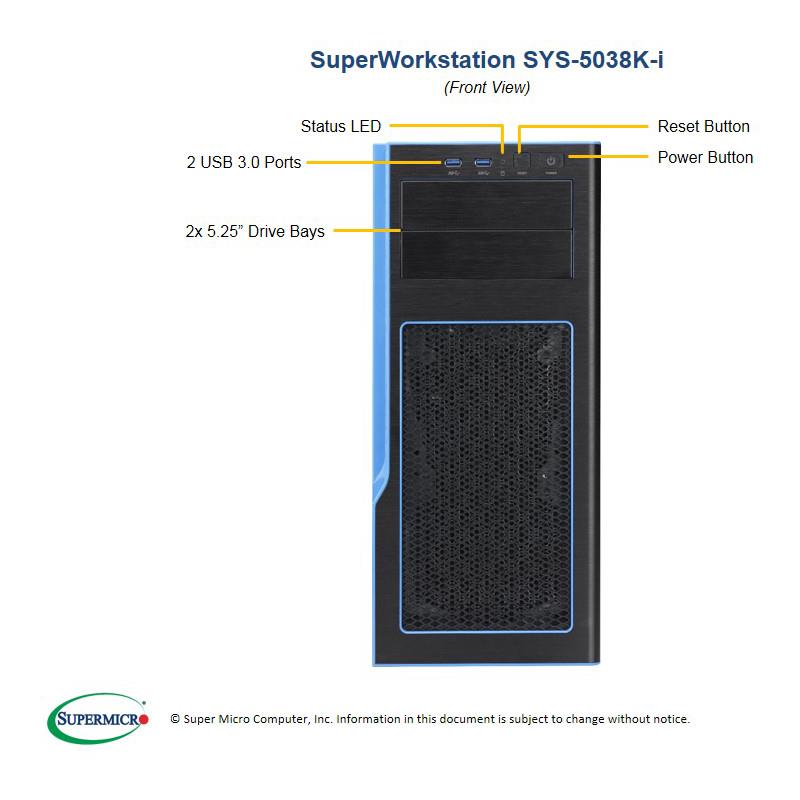

| Front Panel |
| Buttons | Power On/Off button, Reset button |
| LEDs | Power LED, Hard drive activity LED |
| Networking |
| Ports | 2x USB 3.0 Ports |
| Drive Bays |
| Internal | 6x 3.5" and 4x 2.5" tool-less drive bays |
| Peripheral Drives |
| Peripheral Bay | 2x 5.25" peripheral drive bays |
| System Cooling |
| Fans | 2x 12cm front chassis fans |
| 1x 8cm mid chassis fan |
| 1x 12cm rear chassis fans |
| 2x 12cm radiator exhaust fans |
| 1x FAN-0172L4 |
| Liquid Cooling | Closed loop Liquid Cooling unit (UL Tested) |
| Power Supply |
| Certification | 80PLUS Gold Certified |
| Power Supply | 750W Multi-output Power Supply for Desktop, semi-modular cable output |
| 1x PWS-753-PQ |
| Miscellaneous |
| Compliant Standards | RoHS Compliant |
| Environmental Parameters |
| Operating Temperature | Operating Temperature: 10C to 35C (50F to 95F) |
| Non-operating Temperature: -40C to 70C (-40F to 158F) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Temperature | Monitoring for CPU and chassis environment |
| PECI |
| Thermal Control for fan connectors |
| Parts List |
| Cables | 1x CBL-0062L, 2x CBL-0296L, 4x CBL-SAST-0624, 1x CBL-0042L |
| I/O Shield | 1x MCP-260-00042-0N |
| Parts List - (Items Included) |
| Heatsink / Retention | 1x SNK-P3000A4 |
| Motherboard / Chassis | 1x MBD-K1SPE, 1x CSE-GS5A-753B |
| Management |
| Software | SFT-OOB-LIC |
| PC Health Monitoring |
| CPU | +12V, +3.3V, +5V, +5V standby, 3.3V standby, Supports system management utility, System level control, VBAT |
| FAN | Low noise fan speed control |
