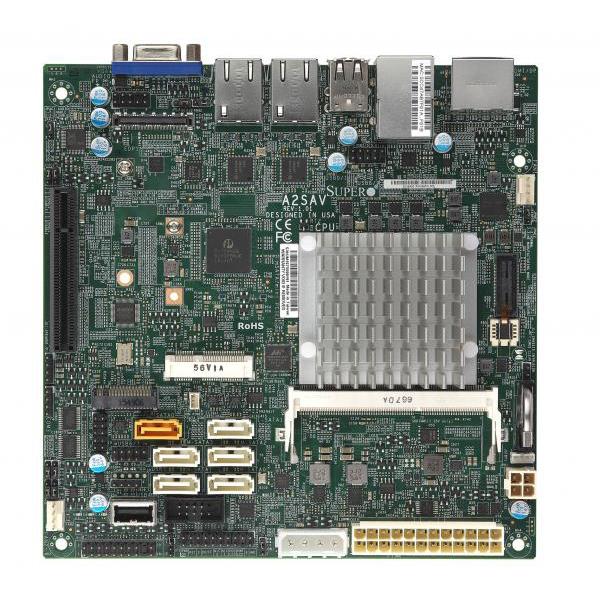

Supermicro A2SAV Motherboard Mini-ITX w/ Intel Atom Processor E3940 FCBGA 1296 System-on-Chip

• Intel TXE 3.0 dedicated security
• CPU (1.7x) and GPU (2.9x) performance
• Up to 8GB DDR3 Unbuffered; 1 DIMM slot
• Featuring Intel processor Atom E3940 SoC

Motherboard Mini-ITX w/ Intel Atom Processor E3940 FCBGA 1296 System-on-Chip - Supports Up to 8GB Unbuffered non-ECC DDR3-1866MHz SO-DIMM in 1 DIMM slot - Onboard : SoC controller for 2 SATA3 (6Gbps), Marvel 88SE9230 controller for 4 SATA3 (6Gbps), 2x Gigabitl Ethernet ports via Intel I210-AT Controller, Intel HD Graphics - MBD-A2SAV w/ Passive Heatsink


    235.00235.00235.0USD

    235.00

    Option not available

    FREE SHIPPING

    This combination does not exist.

    Add to Cart


    • 4-pin 12v DC power connector
    • Dual GbE LAN ports via Intel I210-AT
    • 3 COM ports (1 rear, 2 headers), 1 SuperDOM
    • Intel Atom processor E3940, SoC, FCBGA 1296
    • 2 USB 3.0 (2 rear), 7 USB 2.0 (2 rear, 4 via headers, 1 Type A)
    • 2 SATA3 (6Gbps) via SoC, 4 SATA3 (6Gbps) via Marvel 88SE9230
    • Up to 8GB Unbuffered non-ECC DDR3-1866MHz SO-DIMM in 1 DIMM slot
    • 1 PCI-E 2.0 x2 (in x8) slot, M.2 PCIe 2.0 x2, M Key 2242/2280, 1 Mini-PCIe with mSATA
    • 1 DP (DisplayPort), 1 HDMI, 1 VGA, 1 eDP (Embedded DisplayPort), 1 Intel HD Graphics

    Extra Specifications for Supermicro A2SAV Motherboard Mini-ITX w/ Intel Atom Processor E3940 FCBGA 1296 System-on-Chip

    Main Specifications
    Device Type Atom Board
    Dimensions (WxDxH) 6.75" x 6.75" (17.145cm x 17.145cm)
    Form Factor Mini-ITX
    Processor
    Installed Brand Intel® Atom™ Processor E3940
    Note System-on-Chip
    Processor Sockets FCBGA 1296
    System Memory
    DIMM Sizes 8GB, 4GB, 2GB
    Memory Capacity 1x 204-pin DDR3 SO-DIMM socket
    Memory Type 1866/1600/1333MHz Unbuffered non-ECC SO-DIMM DDR3, 204-pin gold-plated DIMMs
    Memory Voltage 1.5 V, 1.35 V
    On-Board Devices
    Network Controllers Dual GbE LAN with Intel i210-AT controller
      Virtual Machine Device Queues reduce I/O overhead
      Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    SATA SoC controller for 2 SATA3 (6Gbps)
      Marvel 88SE9230 controller for 4 SATA3 (6Gbps)
    VGA Intel HD Graphics
    Input / Output
    DOM 1 SATA DOM (Disk on Module) power connector
    LAN 2 RJ45 Gigabit Ethernet LAN ports
    Others 3 COM ports (1 rear, 2 headers)
      1 in RJ45, 1 in RS232, and 1 in RS485
      4-pin 12V DC power connector
    SATA 6 SATA3 (6Gbps) ports
    USB 2 USB 3.0 (2 rear), 7 USB 2.0 (2 rear, 4 via headers, 1 Type A)
    VGA 1 VGA, 1 DP (Display Port), 1 HDMI, 1 eDP (Embedded Display Port), 1 Intel HD Graphics
    Chassis Optimized for
    1U Chassis CSE-504-203B, CSE-505-203B
    Environmental Standards
    Operating Temperature 0°C to 60°C
    Expansion / Connectivity
    Expansion Slots Total (Free) 1 PCI-E 2.0 x2 (in x8) slot
      M.2 PCIe 2.0 x2, M Key 2242/2280
      1 Mini-PCIe with mSATA
    System BIOS
    BIOS Features Plug and Play (PnP), DMI 2.3, ACPI 5.0, USB Keyboard support, SMBIOS 2.7.1, UEFI
    BIOS Type 64Mb SPI Flash EEPROM with AMI UEFI BIOS
    Management
    Power Configurations ACPI Power Management
      ATX Power connector
      Control of power-on for recovery from AC power loss
      CPU thermal trip support for processor protection
    Software SuperDoctor® 5, Watch Dog
    PC Health Monitoring
    FAN Total of 2x 4-pin fan headers
      2x fans with tachometer status monitoring
      Status monitor for speed control
      Status monitor for on/off control
      Low noise fan speed control
      Pulse Width Modulated (PWM) fan connectors
    LED System Overheat LED
    Other Features Chassis intrusion detection, Chassis intrusion header
    Temperature Monitoring for CPU and chassis environment
      CPU thermal trip support
    Voltage Monitors for CPU Cores, +1.8V, +12V, +3.3V, +5V, +5V standby, Monitors CPU voltages, System level control
