- Supermicro A2SAV-L Motherboard Mini-ITX w/ Intel Atom Processor E3940 FCBGA 1296 System-on-Chip

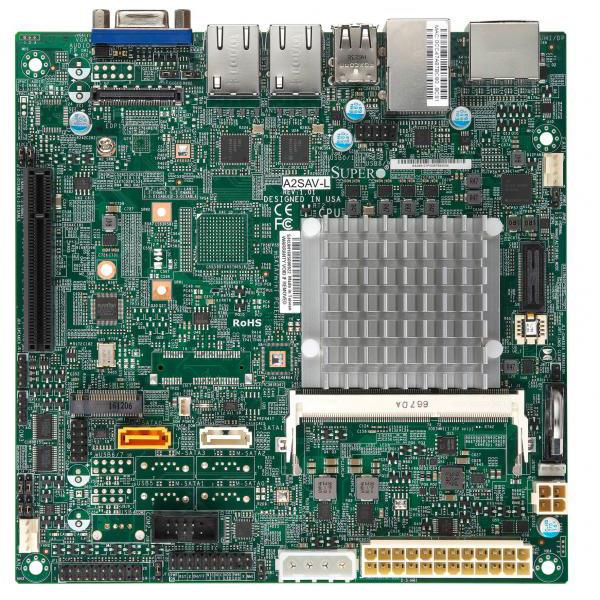

Supermicro A2SAV-L Motherboard Mini-ITX w/ Intel Atom Processor E3940 FCBGA 1296 System-on-Chip
Motherboard Mini-ITX w/ Intel Atom Processor E3940 FCBGA 1296 System-on-Chip - Supports Up to 8GB Unbuffered non-ECC DDR3-1866MHz SO-DIMM in 1 DIMM slot - Onboard : SoC controller for 2 SATA3 (6Gbps), 2x Gigabitl Ethernet ports via Intel I210IT Controller, Intel HD Graphics - MBD-A2SAV-L w/ Passive Heat sink
1. Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
2. Intel® Atom processor E3940 (9W, 4C)
3. 1 PCIe 2.0 x2 (in x8), and 2 SATA 3.0
4. Dual GbE LAN with Intel® i210-AT
5. Intel® Goldmont microarchitecture 14nm System-on-Chip
6. 1 M.2 M-key with SATA
7. 12V DC Input and ATX Power Source
8. 1 HDMI, 1 DP, 1 VGA or 1 eDP, Intel HD Graphic 3 independent displays
9. 2 USB 3.0 ports, 4 USB 2.0 ports, 3 COM ports, and 1 DOM connector
Extra Specifications for Supermicro A2SAV-L Motherboard Mini-ITX w/ Intel Atom Processor E3940 FCBGA 1296 System-on-Chip
| On-Board Devices | ||
| Chipset | System on Chip | |
| Network Controllers | Dual LAN with Intel® Ethernet Controller I210IT | |
| SATA | SoC controller for 2 SATA3 (6 Gbps) ports | |
| Graphics | 1 Intel® HD Graphics port(s) | |
| System Memory | ||
| DIMM Sizes | 2GB, 4GB, 8GB | |
| Memory Capacity | 1 DIMM slots | |
| Memory Voltage | 1.35V | |
| Memory Type | 1866 MT/s DDR3L up to 8GB | |
| Input / Output | ||
| Others | 1 COM in RJ45 | |
| 1 COM in RS232 | ||
| 1 COM in RS485 | ||
| USB | 2 USB 3.0 port(s) (2 rear) | |
| 4 USB 2.0 port(s) (2 rear; 2 via header) | ||
| Video Output | 1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s) | |
| Serial Port | 3 COM Port(s) (1 rear; 2 header) | |
| System BIOS | ||
| BIOS Type | AMI UEFI | |
| Management | ||
| Power Configurations | ACPI Power Management | |
| Software | SuperDoctor® 5, Watchdog | |
| PC Health Monitoring | ||
| FAN | Low noise fan speed control | |
| Fan speed control | ||
| PWM fan speed control | ||
| 2x 4-pin fan headers (up to 2 fans) | ||
| Other Features | WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ATX Power connector, ACPI power management, 4-pin 12v DC power connector | |
| Voltage | +5V standby, +5V, +12V | |
| Product SKUs | ||
| Product SKUs | MBD-A2SAV-L | |
| Physical Stats | ||
| Form Factor | Mini-ITX | |
| Dimension | 6.7" x 6.7" (17.02cm x 17.02cm) | |
| Processor | ||
| CPU | Intel® Atom® Processor E3940 | |
| Single Socket FCBGA-1296 supported, CPU TDP supports Up to 9W TDP | ||
| Expansion Slots | ||
| PCIe | 1 PCIe 2.0 x2 (in x8 slot) | |
| M.2 | Form Factor: 2280, 2242 | |
| Operating Environment | ||
| Operating Temperature Range | -30°C - 70°C (-22°F - 158°F) | |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
