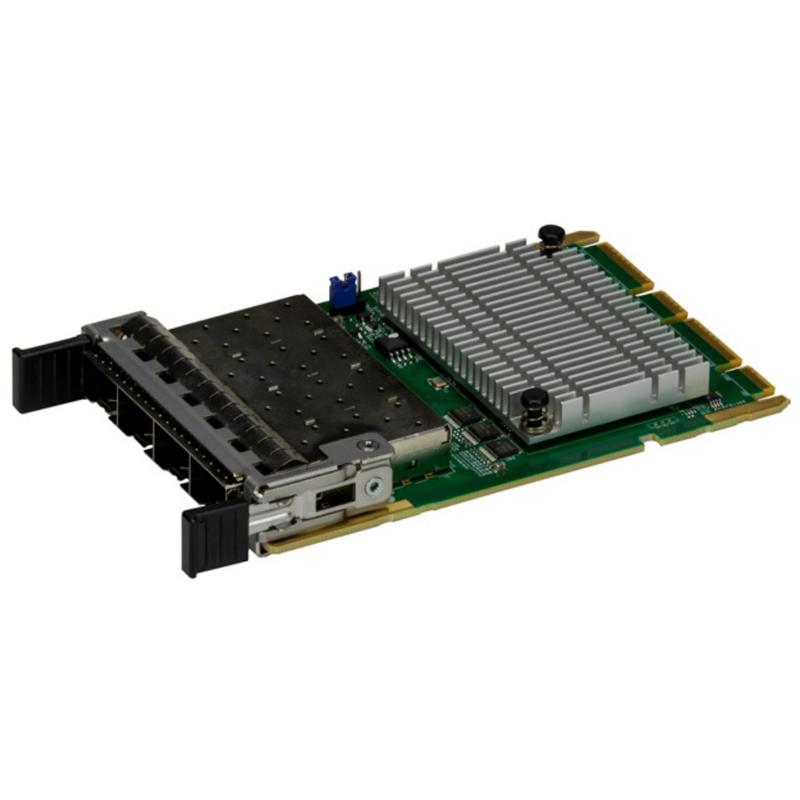

Supermicro AOC-ATG-I4SG XL710-BM1 10GbE Ethernet Adapter Card 4-Port SFP+ Connectors Advanced I/O Module (AIOM) OCP 3.0 For GrandTwin Front IO Systems

Supermicro AOC-ATG-I4SG XL710-BM1 10GbE Ethernet Adapter Card 4-Port SFP+ Connectors Advanced I/O Module (AIOM) OCP 3.0 For GrandTwin Front IO Systems

  • Intel XL710-BM1 Ethernet Controller

  • 4x 10Gbps ports with SFP+ connectors

  • Advanced I/O Module (AIOM) Form Factor

  • Network Virtualization: VXLAN and NVGRE

10GbE Ethernet Adapter Card, Advanced I/O Module (AIOM) Form Factor, Based on the Intel XL710-BM1 Network Controller, Quad SFP+ connectors with Speed up to 10GbE per port, Bracket Included: 0.5U Height Narrow Bracket for GrandTwin Front IO Systems, RoHS Compliant 6/6, (AOC-ATG-I4SG)

$ 336.00$ 336.00336.0USD

$ 336.00

Option not available

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    Advanced I/O Module (AIOM) 10GbE Ethernet Adapter


    The Supermicro Advanced I/O Module (AIOM) is the latest form factor designed to provide a wide range of networking options as well as other I/O technologies. The 10GbE adapter AOC-ATG-I4SG is a flexible and scalable 10GbE solution providing 4 SFP+ ports. Based on the Intel XL710-BM1 network controller with performance-enhancing features and power management technologies, the AOC-ATG-I4SG provides a quality networking choice for data centers while reducing CPU utilization and power consumption. With the added NC-SI feature, this adapter can also function as a secure networking port for server remote management.


    Key Features


    • 4x 10Gbps ports with SFP+ connectors

    • Intel XL710-BM1 Ethernet Controller

    • Advanced I/O Module (AIOM) Form Factor

    • Network Virtualization: VXLAN and NVGRE

    • Intel® Ethernet Flow Director

    • Data Plane Developer Kit for efficient packet processing (DPDK)

    • Asset Management Features

    • NC-SI for Remote Management

    • Supports both Direct Attach Copper and Fiber Cables

    Extra Specifications for Supermicro AOC-ATG-I4SG XL710-BM1 10GbE Ethernet Adapter Card 4-Port SFP+ Connectors Advanced I/O Module (AIOM) OCP 3.0 For GrandTwin Front IO Systems

    Main Specifications
    Device Type10GbE Ethernet Adapter
    Form FactorAdvanced I/O Module (AIOM)
    InterfacePCI-E 3.0 x8 Slot
    Dimensions (WxDxH)PCB dimensions: 76mm x 115mm (W x D)
    Connectivity
    Connectors4x SFP+ connectors with speed up to 10Gbps per port
    Networking
    Controller TypeIntel XL710-BM1 Ethernet Controller
    Networking FeaturesIEEE 802.3ad, 802.1AX Link Aggregation, IEEE 802.1Q VLAN, MSI and MSI-X support, Intel® Flow Director, Jumbo Frames (up to 9.5KB), IEEE 802.3x Flow Control, Teaming support, Checksum Offload (IPv4/IPv6, SCTP, TCP, UDP, Tx/Rx)
    Virtualization FeaturesVirtual Machine Devices queues (VMDq), Single-Root I/O Virtualization (SR-IOV), VLAN, VXLAN and NVGRE, GENEVE
    Management FeaturesAsset Management support with thermal sensor, NC-SI for remote management, PXE remote boot, iSCSI remote boot
    Software / System Requirements
    OS SupportWindows Server, Linux RHEL, Linux SLES, Linux Ubuntu, Linux CentOS, FreeBSD, VMware
    Power
    Power SavingsACPI compliant power management, PCI Express Active State Power Management (ASPM), Energy Efficient Ethernet (IEEE 802.3az)
    Environmental
    Operating EnvironmentNon-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    Storage humidity: 90% non-condensing relative humidity at 35°C
    Miscellaneous
    Cables RequiredSFP+ direct attach twin-axial copper cables up to 5m, Fiber-optic cables (with required optional SFP+ transceivers)
    Environmental ComplianceRoHS Compliant 6/6
    Bracket IncludedBKT-0206L - 0.5U height Narrow bracket for GrandTwin Front IO systems

    Warranty:3 years, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
