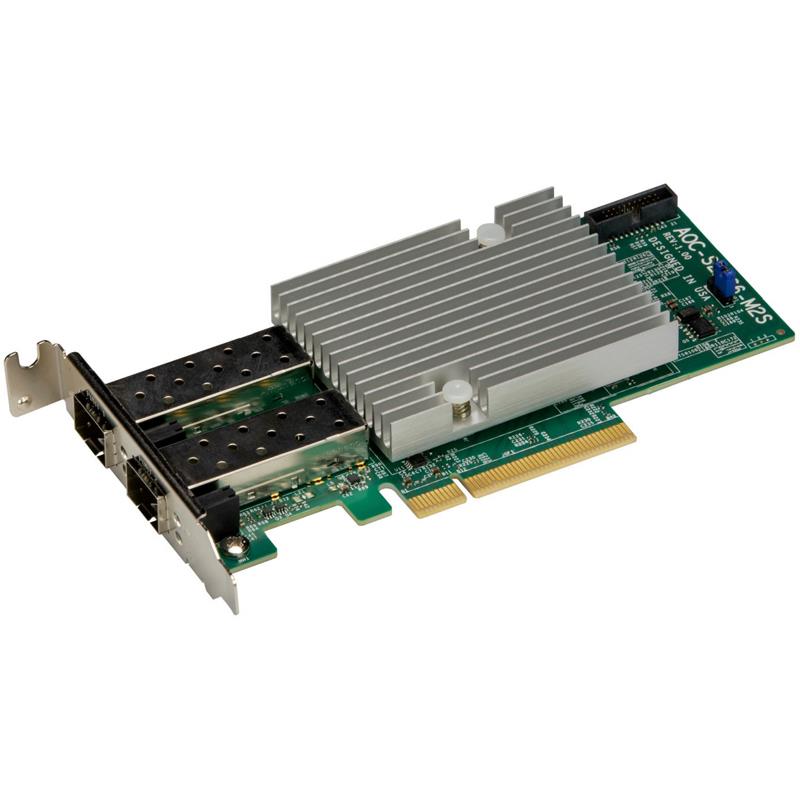

Supermicro AOC-S25G6-M2S 25Gb Ethernet Controller Low-Profile Dual-port SFP28

Supermicro AOC-S25G6-M2S 25Gb Ethernet Controller Low-Profile Dual-port SFP28

  • PCIe Gen 4: Uses PCIe Gen 4 for quick data transfer

  • Speed Support: Works with 25GbE and 10GbE speeds for fast networking

  • Dual SFP28 Connectors: Has two SFP28 connectors for flexible connections

  • Designed with a low-power NVIDIA ConnectX-6 Lx controller for efficiency

Based on NVIDIA ConnectX-6 Lx, PCIe Gen 4 x8, Dual-port SFP28, Low-Profile, Features VXLAN, NVGRE and RDMA - (AOC-S25G6-M2S)

$ 272.00$ 272.00272.0USD

$ 272.00

Option not available

InStock
1 lb

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    NVIDIA ConnectX-6 Lx 25GbE controller
    Support for 25GbE and 10GbE Speed
    Dual SFP28 connectors
    RDMA over Converged Ethernet
    VXLAN, NVGRE and Geneve
    Asset Management Features with thermal sensor
    Network Controller Sideband Interface (NC-SI) for Remote Management

    Extra Specifications for Supermicro AOC-S25G6-M2S 25Gb Ethernet Controller Low-Profile Dual-port SFP28

    Main Specifications
    Device TypeMellanox ConnectX-6 Lx 25GbE controller
    SupportsSupport for 25GbE and 10GbE Speed
    Dimensions (WxDxH)5.6 in x 2.7 in
    Connectivity
    ConnectorsDual SFP28 ports
    Networking
    Storage AccelerationsNVMe over Fabric offloads for target, Storage protocols: iSER, NFSoRDMA, SMB Direct, NVMe-oF, and more
    RDMA over Converged EthernetRoCE v1/v2, Zero-Touch RoCE: no ECN, no PFC, RoCE over overlay networks, IPsec over RoCE, Selective repeat, GPUDirect, Dynamically Connected Transport (DCT), Burst buffer offload
    Management and ControlSMBus 2.0, Network Controller Sideband Interface (NC-SI), NC-SI, MCTP over SMBus and MCTP over PCIe - Baseboard Management Controller interface, PLDM for Monitor and Control DSP0248, PLDM for Firmware Update DSP026
    Remote BootRemote boot over Ethernet, Remote boot over iSCSI, UEFI support for x86 and Arm servers, PXE boot
    Power
    Power ConsumptionMaximum: 15W
    Environmental Parameters
    Operating TemperatureStorage temperature: -40°C to 70°C (-40°F to 158°F)
    Storage humidity: 90% non-condensing relative humidity at 35°C
    Miscellaneous
    Compliant StandardsIEEE 802.3ae 10 Gigabit Ethernet, IEEE 802.3by 25G supporting all FEC modes, IEEE 802.3ad, 802.1AX Link Aggregation, IEEE 802.3az Energy Efficient Ethernet (supports only “Fast-Wake” mode), IEEE 802.3ap based auto-negotiation and KR startup, IEEE 802.1Q, 802.1P VLAN tags and priority, IEEE 802.1Qaz (ETS), IEEE 802.1Qbb (PFC), IEEE 802.1Qbg, IEEE 1588v2, IEEE 1149.1 and IEEE 1149.6 JTAG, PCIe 3.0 and 4.0

    Warranty:3 years
    Coverage:Replacement or repair
    Average Service Time:120 days of overnight replacement
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Supermicro
    Type of Support:FULL
    Phone No.:408-503-8000
    URL:Click here for Manufacturer Website
