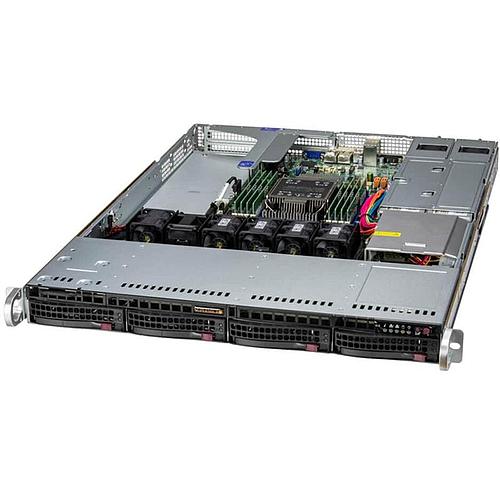

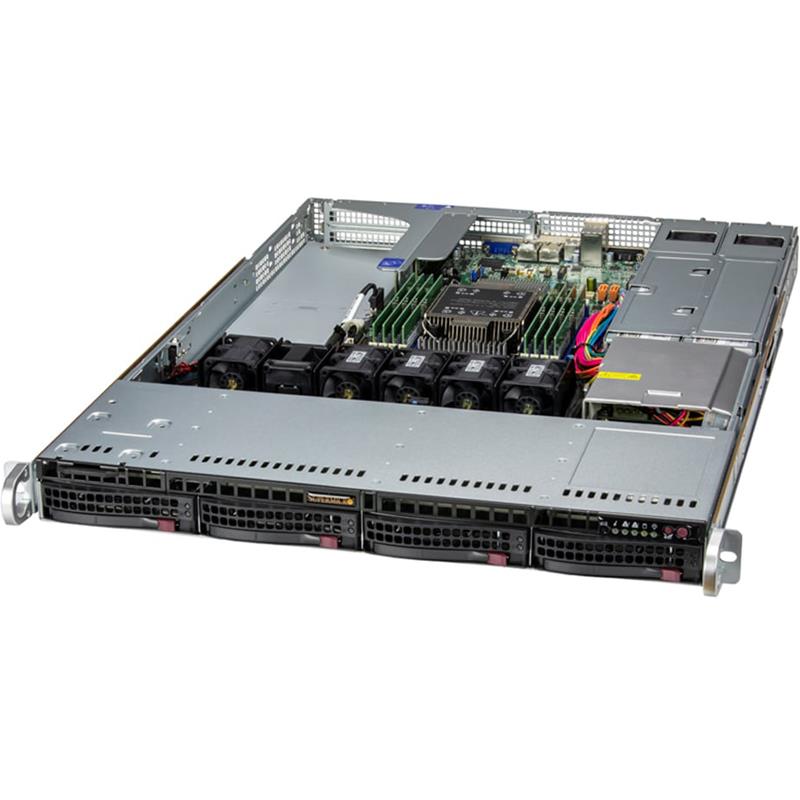

- Supermicro SYS-511E-WR UP 1U Barebone Single Intel Xeon Scalable Processors 5th and 4th Generation
Supermicro SYS-511E-WR UP 1U Barebone Single Intel Xeon Scalable Processors 5th and 4th Generation
• Virtualization
• Cloud Computing
• Data Center Optimized
• Entry GPU server
• Value IaaS
Barebone 1U Rackmount SuperServer, Supports Single Socket E (LGA-4677), Supporting Intel Xeon Scalable Processors 5th and 4th Generation, Intel C741 Chipset, Up to 2TB in 8 DIMM slots, RDIMM, On-Board : SATA3 (6Gbps), RAID 0/1/5/10 Support, 4x 3.5in SATA/SAS Drive Bays, One M.2 M-key, 2280, 22110, 2x 2.5in Drive Bays, Network Connectivity : 2 RJ45 1GbE LAN ports, 1 RJ45 Dedicated IPMI LAN port, 800W/860W Power Supply - (SYS-511E-WR + X13SEW-F)
1. Single Socket E (LGA-4677) 4th/5th Gen Intel® Xeon® Scalable processors. Up to 300W TDP
2. Intel® C741 Chipset
3. 8 DIMMs; Supports 3DS DDR5 RDIMM. Up to 5600 MHz
4. Onboard 1G LAN ports (Intel® i210), 1 dedicated IPMI LAN
5. 4x front hot-swap 3.5" SATA3 drive bays, SAS3 with additional SAS controller card
6. Redundant Now Titanium 860W Power Supplies
Extra Specifications for Supermicro SYS-511E-WR UP 1U Barebone Single Intel Xeon Scalable Processors 5th and 4th Generation
| Product SKUs | ||
| Product SKUs | SYS-511E-WR | |
| Motherboard | ||
| Motherboard | Super X13SEW-F | |
| Processor | ||
| CPU | 4th Gen Intel® Xeon® Scalable processors | |
| Single Socket E (LGA 4677) | ||
| Cores | Up to 52C/104T; Up to 97.5MB Cache | |
| Note | Supports up to 300W TDP CPUs (Air Cooled) | |
| System Memory | ||
| Memory | Memory Capacity: 8 DIMM slots | |
| Up to 2TB: 8x 256 GB DRAM | ||
| Memory Type: 4800/4400MHz ECC DDR5 RDIMM | ||
| Memory Voltage | 1.1 V | |
| Error Detection | Yes | |
| On-Board Devices | ||
| SATA | SATA3 (6Gbps); RAID 0/1/5/10 support | |
| Chipset | Intel® C741 | |
| Network Connectivity | 2x 1GbE BaseT with Intel® i210 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| SATA | 10 SATA (6Gbps) port(s) | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2 RJ45 1GbE LAN ports | ||
| USB | 4 USB 3.2 Gen 1 port(s) (2 headers; 2 rear) | |
| 3 USB 2.0 port(s) (2 rear; 1 Type A) | ||
| Video | 1 VGA port(s) | |
| Serial Port | 2 COM Port(s) (1 header; 1 rear) | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | NMI | |
| KVM with dedicated LAN | ||
| Redfish API | ||
| Intel® Node Manager | ||
| SUM | ||
| SSM | ||
| SPM | ||
| IPMI2.0 | ||
| Supemicro Out of Band (OOB) License (Included per Node) | ||
| SuperCloud Composer | ||
| Power Configurations | ACPI/APM Power Management | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| 8 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-815BTS-R860WP | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 25.6" (650mm) | |
| Package | 8.5" (H) x 23.5" (W) x 33.7" (D) | |
| Weight | Net Weight: 22 lbs (9.98 kg) | |
| Gross Weight: 46 lbs (20.87 kg) | ||
| Available Color | Black | |
| Front Panel | ||
| Buttons | UID button | |
| System Reset | ||
| Power On/Off | ||
| LEDs | Power status | |
| System information | ||
| Device Activity | ||
| LAN 1 Activity | ||
| LAN 2 Activity | ||
| Expansion Slots | ||
| PCI-Express (PCIe) | 2 PCIe 5.0 x16 FHFL slot(s) | |
| 1 PCIe 5.0 x8 (in x16) LP slot(s) | ||
| Note | Acronyms: (FH = Full Height, LP = Low Profile, FL = Full Length, HL = Half Length) | |
| Drive Bays / Storage | ||
| Drive Bays | 4x 3.5" SATA/SAS drive bays | |
| M.2 | M-key, 2280, 22110 | |
| 1x PCIe 3.0 x 2 | ||
| Peripheral Bays | 2x 2.5" drive bays | |
| System Cooling | ||
| Fans | 1 AOC cooling Fan(s) (optional) | |
| 5 middle cooling PWM 40x40x56mm Fan(s) | ||
| Power Supply | ||
| Dimension (W x H x L) | 54.5 x 40.25 x 322 mm | |
| AC Input | 800W: 100-127Vac / 9A-7.5A / 50-60Hz | |
| 860W: 200-240Vac / 6A-4.5A / 50-60Hz | ||
| +12V | Max: 66.6A / Min: 0A (100Vac-127Vac) | |
| Max: 71.6A / Min: 0A (200Vac-240Vac) | ||
| 5V SB | Max: 4A / Min: 0A | |
| Output Type | Backplanes (gold finger) | |
| Certification | Platinum Level | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) | ||
| Operating Relative Humidity: 8% to 80% (non-condensing) | ||
| Non-operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 3.5" to 2.5" Converter Tray(s) | MCP-220-00043-0N | $ 26.00 | 0 | Hot-swap Gen-4 3.5" to 2.5" HDD tray, Black | ||
| CacheVault | BTR-CV3916-1U1 (For S3908) | 1 | SuperCap kit mounting in 1U 40x56 fan tray | |||
| CacheVault | BTR-CVPM05 + MCP-240-00203-0N (For S3908) | 1 | SuperCap mounting bracket for PCIe location | |||
| Cooling Fan | FAN-0163L4 | $ 33.50 | 1 | 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan | ||
| DVD-ROM / DVD-RW | DVM-HLDS-DVDRW-SBT2 | $ 69.00 | 1 | HLDS slim DVD-RW SATA drive | ||
| DVD-ROM / DVD-RW | DVM-HLDS-DVD-SBT2 | $ 69.00 | 1 | HLDS slim DVD-ROM SATA drive | ||
| DVD-ROM Accessory | MCP-220-81502-0N | $ 28.50 | 1 | Slim SATA DVD mounting kit | ||
| Front Bezel | CSE-PTFB-813LB | $ 27.00 | 1 | Black Front Bezel | ||
| Front Bezel | CSE-PTFB-813-02B | $ 25.50 | 1 | Black Front Bezel w/ Round Venting Holes | ||
| Hot-swap 2.5" kit (DVD slot) | MCP-220-81506-0N | $ 81.50 | 1 | Single 2.5" SAS3 (12Gb/s) hot swap in slim DVD form factor | ||
| Hot-swap 2.5" kit (FDD slot) | MCP-220-81504-0N | $ 113.00 | 1 | Single 2.5" SAS3 (12Gb/s) hot swap in slim FDD form factor | ||
| Inlet Thermal Sensor | MCP-280-00033-0N | $ 31.50 | 1 | Inlet Thermal sensor kit with 80cm I2C cable | ||
| Intel VROC RAID Key for NVMe | AOC-VROCPREMOD | $ 344.50 | 1 | Premium Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10/5 | ||
| Intel VROC RAID Key for NVMe | AOC-VROCSTNMOD | $ 176.00 | 1 | Standard Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10 | ||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) | |||
| Storage Control Card and Cable(s) | AOC-S3908L-H8iR-16DD | 1 | Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Storage Control Card and Cable(s) (HBA) | AOC-S3808L-L8IT | $ 397.50 | 1 | Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA | ||
| TPM | AOM-TPM-9670V-S-O | 1 | TPM 2.0, vertical form factor, provisioned for server |
