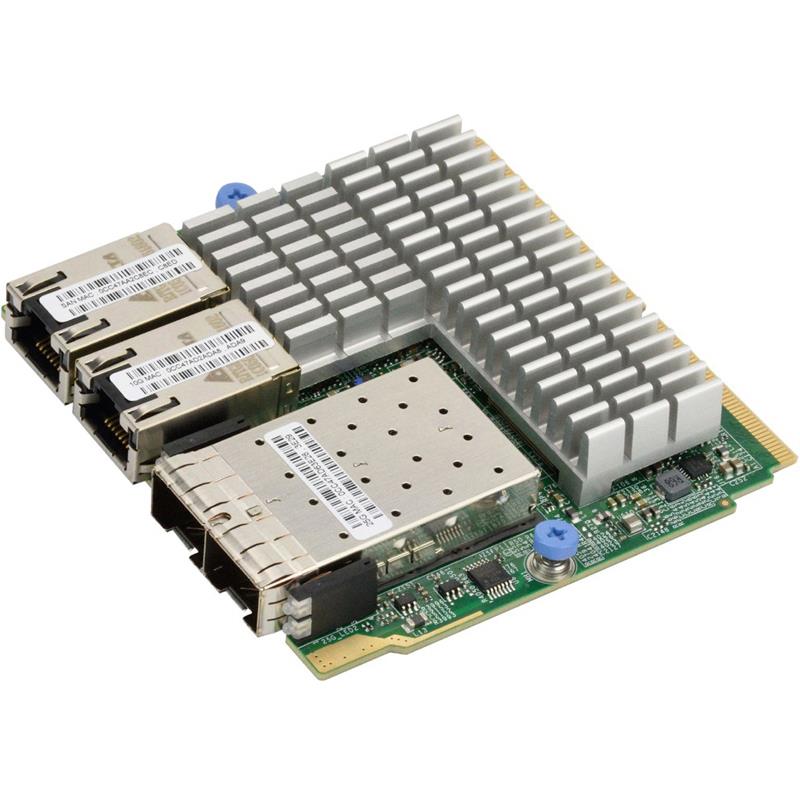

Supermicro AOC-MH25G-M2S2T SIOM 2-port 25GbE SFP28 Mellanox CX-4 Lx EN and 2-port 10GbE RJ45 Intel X550

• Hardware-based reliable transport
• Swappable bracket for 2U+ chassis
• 2 SFP28 and Dual RJ45 Connectors
• Super I/O Module (SIOM) Form Factor

SIOM 2-port 25GbE SFP28 Mellanox CX-4 Lx EN and 2-port 10GbE RJ45 Intel X550 - Hardware offloads for NVGRE, VXLAN and GENEVE encapsulated traffic


    352.00352.00352.0USD

    352.00

    Option not available

    FREE SHIPPING

    This combination does not exist.

    Add to Cart


    • Super I/O Module (SIOM) Form Factor
    • Asset Management Features with thermal sensor
    • Intel X550-AT2 10GbE controller, Dual RJ45 Connectors
    • NC-SI for Remote Management (10GbE Controller only)
    • Mellanox ConnectX-4 Lx EN 25GbE controller Dual SFP28 connectors
    • Hardware offloads for NVGRE, VXLAN and GENEVE encapsulated traffic
    • Low latency RDMA over Converged Ethernet(RoCE) (25GbE Controller only)

    Extra Specifications for Supermicro AOC-MH25G-M2S2T SIOM 2-port 25GbE SFP28 Mellanox CX-4 Lx EN and 2-port 10GbE RJ45 Intel X550

    Main Specifications
    Device Type SIOM Networking Adapter
    Dimensions (WxDxH) 3.622" (92mm) x 3.428" (87.08mm)
    Processor
    Processor Mellanox ConnectX-4 Lx EN, Intel X550-AT2
    Networking
    Connectivity Technology Wired
    Data Transfer Rate 25Gb/port, 10Gb/port
    Port Quantity 2 SFP28 (25Gb/port), 2 RJ45 (10GBase-T)
    Status Indicators Two (2) SFP28 Link/Activity LED Indicators
    Power
    Details 25W
    Expansion / Connectivity
    Interface and Connections Dual RJ45 LAN Ports
      Dual SFP28 (Small Form Factor Pluggable) Ports
    Miscellaneous
    Compatible Motherboards and Servers Compatible Motherboard: Supermicro® Motherboards with SIOM slot
      Compatible System: Supermicro® Servers with SIOM slot
    Compliant Standards RoHS compliant 6/6
    Included Accessories Swappable bracket for 2U+ chassis (BKT-0112L)
    NamePart NumberQuantityDescription
    NamePart NumberQuantityDescription
    Warranty:3 years labor, 1 year parts, 120 days advanced replacement (DOA)
