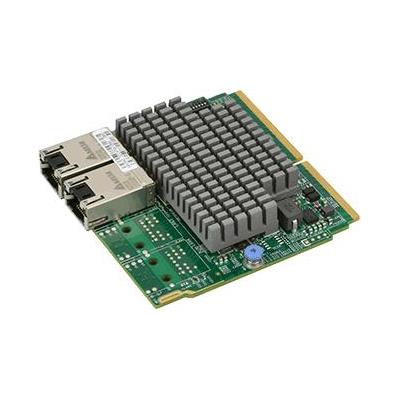

Supermicro AOC-MTG-I2TM SIOM 2-port 10GBase-T Ethernet Adapter - Intel X550 10GbE Controller With Integrated MAC and PHY
SIOM 2-port 10GBase-T Ethernet Adapter - Intel X550 10GbE Controller With Integrated MAC and PHY, With Internal Bracket (BKT-0085L) - Dual RJ45
• Super I/O Module (SIOM) Form Factor
• Intel
®
X550 10GbE controller. The second generation, 10GBase-T controller with integrated MAC and PHY.
• Backward compatibility with existing 1000Base-T networks simplifies the transition to 10 GbE.
• Dual RJ45 Connectors
• Network Virtualization Offloads: VXLAN and NVGRE
• VMDq and SR-IOV for virtualized Environment
• Asset Management Features with thermal sensor
• NC-SI for Remote Management
• Supports RJ-45 Category-6 and 6A cables
• RoHS compliant 6/6
Extra Specifications for Supermicro AOC-MTG-I2TM SIOM 2-port 10GBase-T Ethernet Adapter - Intel X550 10GbE Controller With Integrated MAC and PHY
| Add-on Card | ||
| Add-on Card | The Supermicro AOC-MTG-i2T are the most feature rich low power 10GBase-T controllers in the market today. Based on the Intel X550 chipset with virtualization features such as VXLAN and NVGRE, it offers flexible connectivity selection for all networking requirements. The second generation integrated 10GbE MAC+PHY drives down both cost and power enabling a highly cost effective deployment of 10GbE in the data center. The AOC-MTG-i2T is among the most innovative 10GbE controllers in the market and an excellent choice to expand network connectivity in data centers and enterprise environments. This product is only available through Supermicro. | |
| Compliance | ||
| RoHS | RoHS Compliant 6/6, Pb Free | |
| Downloads | ||
| User's Guide | [ https://www.supermicro.com/manuals/other/AOC-MTG-i2T_i4T.pdf ] | |
| Datasheet | [ https://www.supermicro.com/manuals/other/datasheet-AOC-MTG-i2T_i4T.pdf ] | |
| Driver | Choose the latest CDR-NIC folder, and then click on Intel folder for driver [ https://www.supermicro.com/wdl/Networking_Drivers/ ] | |
| Driver CD | Click on the latest CDR-NIC ISO file to download [ https://www.supermicro.com/wdl/Networking_Drivers/ ] | |
| Compatibility Matrices | ||
| Servers | Supermicro Servers with SIOM support:https://www.supermicro.com/en/support/resources/aoc/siom | |
| Cables & Transceivers | Networking Cables & Transceivers :https://www.supermicro.com/support/resources/AOC/Networking_Cables_Transceivers_Compatibility.cfm | |
| Specification | ||
| Specification | • General - Intel® X550 10GbE controller with integrated 10GBase-T copper PHYs - Super I/O Module (SIOM) Form Factor - Dual RJ45 ports • I/O Features - MSI/MSI-X support - Low Latency - Multiple Queues: 64 Tx and Rx Per Port - Tx/Rx IP, SCTP, TCP, and UDP Checksum Offloading (IPv4, IPv6) Capabilities - Tx TCP Segmentation Offload (IPv4, IPv6) - Receive and Transmit Side Scaling for Windows Environment and Scalable I/O for Linux Environments (IPv4, IPv6 and TCP/ UDP) • Virtualization Features - Multi-mode I/O Virtualization Operations - Network Virtualization Stateless Offload: VXLAN, NVGRE - Support for Virtual Machine Device Queues (VMDq) - 64 Transmit (Tx) and Receive (Rx) Queue Pairs Per Port - Flexible Port Partitioning: 64 VFs per Port - PCI-SIG SR-IOV - 802.1q VLAN support • Management Features - Preboot eXecution Environment (PXE) support - Remote Boot iSCSI and FCoE - IEEE 1588 - Asset Management support on Supermicro® platforms - NC-SI for Remote Management • Cable Support - RJ-45 Category-6 up to 55m; Category-6A up to 100m • Power Consumption - AOC-MTG-i2T: Typical 11W, Maximum 13W • Operating Conditions - Operating temperature: 0°C to 55°C (32°F to 131°F) - Storage temperature: -40°C to 70°C (-40°F to 158°F) - Storage humidity: 90% non-condensing relative humidity at 35°C • Physical Dimensions - Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in) (W x D) • Supported Platforms - Supermicro® motherboards with Super I/O Module slot - Supermicro® server systems with Super I/O Module slot Please note that this product is sold only as part of an integrated solution with Supermicro server systems | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
