| Product SKUs |

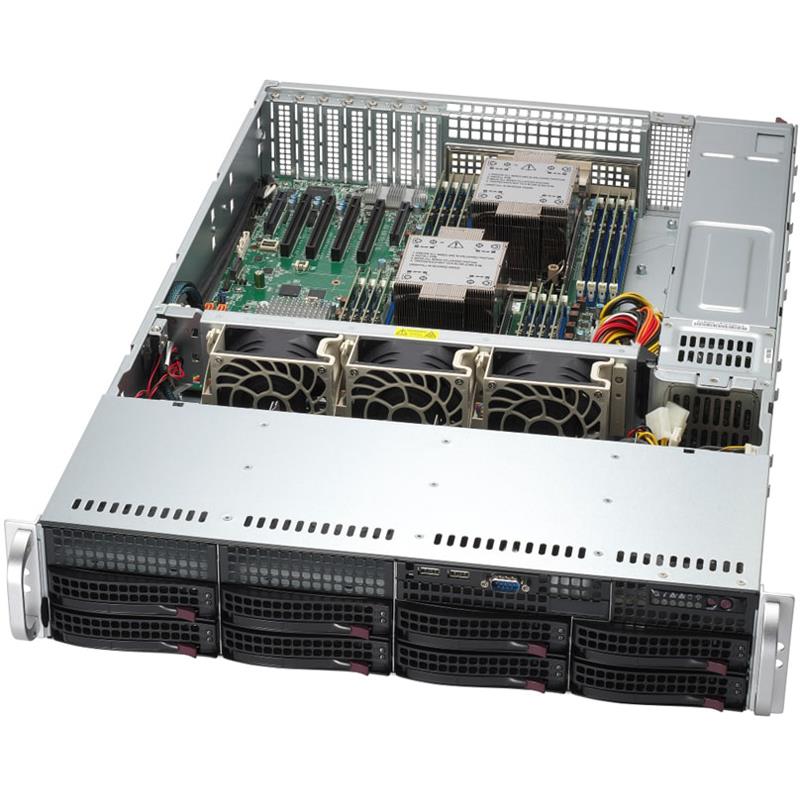

| Product SKUs | SYS-621P-TR |
| Motherboard |
| Motherboard | Super X13DEI |
| Processor |
| CPU | Dual Socket E (LGA-4677) |
| 4th Gen Intel® Xeon® Scalable processors |
| Note | CPUs with high TDP (Air Cooled) only supported under specific conditions. Contact Technical Support for details |
| Supports up to 300W TDP CPUs (Air Cooled) |
| System Memory |
| Memory | Memory Capacity: 16 DIMM slots |
| Up to 4TB: 16x 256 GB DRAM |
| Memory Type: 4800MHz ECC DDR5 RDIMM |
| On-Board Devices |
| SATA | SATA3 (6Gbps) |
| Chipset | Intel® C741 |
| Network Connectivity | 2x 1GbE port(s) |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output |
| LAN | 1 RJ45 Dedicated BMC LAN port |
| USB | 4 USB 3.0 port(s) (4 rear) |
| 2 USB 2.0 port(s) (2 front) |
| Video | 1 VGA port(s) |
| Serial Port | 2 COM Port(s) (1 front; 1 rear) |
| DOM | 2 Super DOM (Disk on Module) port |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management |
| Software | NMI |
| KVM with dedicated LAN |
| Redfish API |
| Intel® Node Manager |
| SUM |
| SSM |
| SPM |
| IPMI2.0 |
| Supermicro Out of Band (OOB) License (included in the unit) |
| Power Configurations | ACPI/APM Power Management |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Chassis |
| Form Factor | 2U Rackmount |
| Model | CSE-825BTS-R1K23LPP1 |
| Dimensions and Weight |
| Height | 3.5" (89mm) |
| Width | 17.2" (437mm) |
| Depth | 25.5" (647mm) |
| Package | 11.4" (H) x 26.7" (W) x 34.5" (D) |
| Weight | Gross Weight: 69 lbs (31.2 kg) |
| Net Weight: 36.38 lbs (16.5 kg) |
| Available Color | Black |
| Front Panel |
| Buttons | System Reset |
| Power On/Off |
| LEDs | HDD activity |
| Power status |
| Network activity |
| System information (overheat/UID) |
| Expansion Slots |
| PCI-Express (PCIe) | 2 PCIe 5.0 x8 LP slot(s) |
| 4 PCIe 5.0 x16 LP slot(s) |
| Drive Bays / Storage |
| Hot-swap | 8x 3.5" hot-swap SATA3 drive bays (Configurable option for 8 hot-swap SAS or 4x hot-swap NVMe drive bays. NVMe or SAS support requires additional parts. Please see the Optional Parts list) |
| M.2 | 2 M.2 NVMe |
| Peripheral Bays | 1x slim DVD drive bays (optional) |
| System Cooling |
| Fans | 3 middle 8cm Fan(s) |
| Power Supply |
| Dimension (W x H x L) | 76 x 40 x 336 mm |
| AC Input | 1000W: 100-127Vac / 15A-12A / 50-60Hz |
| 1200W: 200-240Vac / 8.5A-7A / 50-60Hz |
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) |
| Max: 100A / Min: 0A (200Vac-240Vac) |
| 5V SB | Max: 4A / Min: 0A |
| Output Type | 19 Pairs Gold Finger Connector |
| Certification | Titanium Level |
| Operating Environment |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
