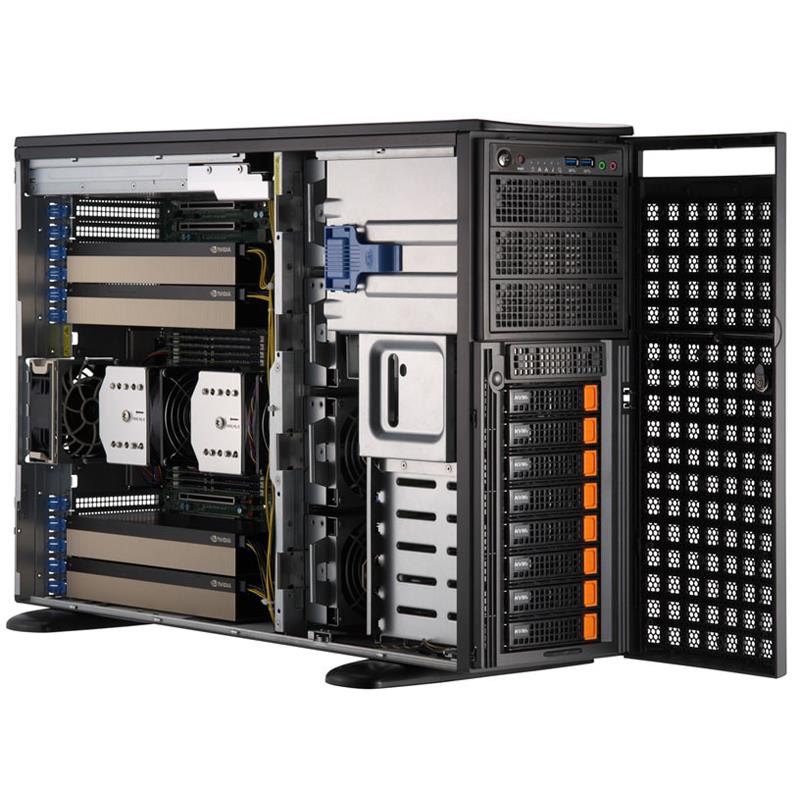

- Supermicro SYS-741GE-TNRT GPU Tower Rackmount Dual Intel Xeon Scalable Processors 5th and 4th Generation
Supermicro SYS-741GE-TNRT GPU Tower Rackmount Dual Intel Xeon Scalable Processors 5th and 4th Generation
• High Performance Computing
• VDI
• AI/Deep Learning Training
• Media/Video Streaming
• Cloud Gaming
• Animation and Modeling
• Design & Visualization
• 3D Rendering
• Diagnostic Imaging
• AI Training
Barebone Tower Rackmount SuperServer, Supports Dual Socket E (LGA-4677), Supporting Intel Xeon Scalable Processors 5th and 4th Generation, Up to 64C/128T, Up to 320MB Cache per CPU. Intel C741 Chipset, Up to 4TB in 16 DIMM slots, DRAM, On-Board: SATA3 (6Gbps), RAID 0/1/5/10 Support, 8x 3.5in Hot-swap NVMe/SATA/SAS Drive Bays (8x 2.5in NVMe Hybrid), 2 M.2 NVMe, Network Connectivity: 2x 10GbE BaseT with Intel X550-AT2, 2000W Power Supply - (SYS-741GE-TNRT + X13DEG-QT)
1. 5th/4th Gen Intel® Xeon® Scalable processor support
2. 16 DIMM slots Up to 4TB: 16x 256 GB DRAM Memory Type: 5600MTs ECC DDR5
3. Up to 4x double width, full length GPUs 4x PCIe 5.0 x16 (double-width) slots, 3x PCIe 5.0 x16 (single-width) slots
4. Total 8x 3.5" Hot-swap SATA/NVMe/SAS drive bays 2x M.2 NVMe for boot drive only Up to 8x NVMe drives (8 NVMe drives supported by default)
5. 4 Removable heavy duty fans w/ Optimal Fan Speed Control
6. 2x 2000W (1+1) Redundant Power Supplies, Titanium Level
Extra Specifications for Supermicro SYS-741GE-TNRT GPU Tower Rackmount Dual Intel Xeon Scalable Processors 5th and 4th Generation
Product SKUs | ||
Product SKUs | SYS-741GE-TNRT | |
Motherboard | ||
Motherboard | Super X13DEG-QT | |
Processor | ||
CPU | Dual Socket E (LGA-4677) | |
4th Gen Intel® Xeon® Scalable processors | ||
Note | Supports up to 350W TDP CPUs (Air Cooled) | |
GPU | ||
Supported GPU | GPU-NVH100-80,GPU-NVA100-80-NC,GPU-NVA30-NC,GPU-NVQRTX-A6000 | |
CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect | |
GPU-GPU Interconnect | NVIDIA® NVLink™ Bridge (optional) | |
System Memory | ||
Memory | Memory Capacity: 16 DIMM slots | |
Up to 4TB: 16x 256 GB DRAM | ||
Memory Type: 4800MHz ECC DDR5 DRAM | ||
Memory Voltage | 1.1 V | |
Error Detection | ECC | |
On-Board Devices | ||
SATA | SATA3 (6Gbps); RAID 0/1/5/10 support | |
Chipset | Intel® C741 | |
Network Connectivity | 2x 10GbE BaseT with Intel® X550-AT2 | |
IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
Input / Output | ||
USB | 2 USB 3.2 Gen1x2; port(s) (2 Front_USB) | |
1 USB 3.2 Gen2x1 (Type C) port(s) (1 Rear_USB) | ||
3 USB 3.2 Gen1 port(s) (3 Rear_USB) | ||
Video | 1 VGA port(s) | |
System BIOS | ||
BIOS Type | AMI 32MB SPI Flash EEPROM | |
Management | ||
Software | Watch Dog | |
NMI | ||
KVM with dedicated LAN | ||
Redfish API | ||
SuperDoctor® 5 | ||
Intel® Node Manager | ||
IPMI 2.0 | ||
SUM | ||
SSM | ||
SPM | ||
OOB Management Package (SFT-OOB-LIC ) | ||
Power Configurations | Power-on mode for AC power recovery | |
ACPI Power Management | ||
PC Health Monitoring | ||
CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
8+4 Phase-switching voltage regulator | ||
FAN | Status monitor for speed control | |
Pulse Width Modulated (PWM) fan connectors | ||
Fans with tachometer monitoring | ||
Temperature | Monitoring for CPU and chassis environment | |
Thermal Control for fan connectors | ||
Chassis | ||
Form Factor | Tower Rackmount | |
Model | CSE-749TS-R2K05BP | |
Dimensions and Weight | ||
Height | 7" (178mm) | |
Width | 17.2" (437mm) | |
Depth | 29" (737mm) | |
Package | 27" (H) x 13" (W) x 38" (D) | |
Weight | Net Weight: 46 lbs (20.9 kg) | |
Gross Weight: 62 lbs (28.1 kg) | ||
Available Color | Black Front & Silver Body | |
Front Panel | ||
Buttons | Power On/Off button | |
System Reset button | ||
LEDs | Network activity LEDs | |
Hard drive activity LED | ||
Power status LED | ||
System Overheat & Power Fail LED | ||
Expansion Slots | ||
PCI-Express (PCIe) | 7 PCIe 5.0 x16 FHFL slot(s) | |
Drive Bays / Storage | ||
Hot-swap | 8x 3.5" hot-swap NVMe/SATA/SAS drive bays (8x 2.5" NVMe hybrid) | |
M.2 | 2 M.2 NVMe | |
System Cooling | ||
Fans | 4 heavy duty fans with optimal fan speed control | |
Power Supply | ||
Dimension (W x H x L) | 73.5 x 40 x 265 mm | |
AC Input | 100-127Vac / 50-60Hz | |
200-240Vac / 50-60Hz | ||
DC Input | 2000W: 230-240Vdc | |
+12V | Max: 83.3A / Min: 0A (100Vac-127Vac) | |
Max: 166.7A / Min: 0A (200Vac-240Vac) | ||
12V SB | Max: 2.1A / Min: 0A | |
Output Type | 25 Pairs Gold Finger Connector | |
Certification | Titanium Level | |
Operating Environment | ||
Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
Operating Relative Humidity: 8% to 90% (non-condensing) | ||
Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
Name | Part Number | Qty. | Description | |
---|---|---|---|---|
Motherboard / Chassis | MBD-X13DEG-QT | 1 | Super X13DEG-QT Motherboard | |
Motherboard / Chassis | CSE-749TS-R2K05BP | 1 | Tower Chassis | |
Backplane | BPN-NVME5-749N-S8 | 1 | 8-port 3.5" LFF direct-attached HDD SAS4/NVMe Gen5 backplane for 4U SC749 Tower, all ports support 32GT/s NVMe Gen5 and/or 24Gb/s SAS4.,RoHS | |
Cable | CBL-MCIO-1240M5L | 4 | MCIOx8 (STR_pTab to LE), 40cm,30AWG,RoHS | |
Cable | CBL-PWEX-1142B-40 | 1 | MicroHi(2x4 to 2x4), PH3.0, 40cm, 8.5A/p, 18AWG, RoHS | |
Cable | CBL-SAST-1230-100 | 2 | Slimline x4 (LE) to Slimline x4 (STR),INT,30CM,100 OHM, | |
Cable | CBL-0071L | 1 | ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF | |
Cable | CBL-0160L | 2 | US POWER CORD 16AWG, PB FREE | |
Cable | CBL-PWEX-1078 | 5 | PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,20CM,22AWG,5A/PIN,RoHS | |
Parts | MCP-260-00180-0B | 1 | STD I/O Shield for X13DEG-QT with EMI Gasket & Black Mylar | |
Parts | MCP-290-74701-0B | 1 | Black plastic top cover for SC747 | |
Parts | MCP-290-74703-0B | 1 | fixed 3.5" dummy cover for SC747 | |
Parts | MCP-290-74709-0B | 1 | Plastic feet (2 pcs/set) for 4U tower chassis, black color | |
Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
Heatsink / Retention | SNK-P0090AP4 | 2 | 4U Active CPU HS for X13 Gen. Intel Eagle Stream Platform | |
*Power Supply | PWS-2K05A-1R | 2 | 1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH | |
*Power Distributor | PDB-PT747-DSG | 1 | 4U 4GPU support redundancy 2PWS up to 3KW output pass thr | |
*Fan | FAN-0199L4-1 | 1 | 92x92x38 mm, 11.5K RPM Cooling fan w/ 5A Fan Connector,RoHS | |
*Fan | FAN-0199L4-2 | 4 | 92x92x38 mm, 11.5K RPM Cooling fan w/ 5A Fan Connector,RoHS | |
*Front Bezel | MCP-210-74701-0B | 1 | SC747 plastic front bezel | |
*Drive Tray(s) | MCP-220-00073-0B | 3 | Black 5.25 drive tray w/o rail (SC747) | |
*Drive Tray(s) | MCP-220-00150-0B | 8 | NVMe Panetone 159C on Latch | |
*Front Panel | MCP-280-74702-0N | 1 | SC747BTQ-R2K04B Front Control Panel PCB (2x USB3.0, Audio) |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Name | Part Number | Price | Add to Cart | Qty. | Description | |
---|---|---|---|---|---|---|
DVD Kit | CBL-0082L • | 1 | Y SPLIT SATA POWER ADAPTER, PB FREE | |||
DVD Kit | CBL-PWEX-0947Y-30 | $ 18.50 | 1 | MicroFit 2x2,PH3.0 to 2 1X4,PH5.08,30cm,9.5A/pin,16AWG,RoHS | ||
DVD Kit | DVM-TEAC-DVDRW24-HBT | $ 99.00 | 1 | BLACK TEAC 5.25" HH 24X DVD-RW SATA DRIVE | ||
DVD Kit | CBL-0044L • | 1 | SATA CABLE 57.5CM FLAT SS PBF.26AWG flat | |||
Front Bezel | MCP-210-74703-0B | $ 26.00 | 1 | Front bezel cover (for 5.25" bay) for rackmount | ||
GPU Kit | MCP-320-74901-NN | $ 157.50 | 1 | SC749 chassis rear external fan for passive GPU cooling kit | ||
Mounting Rails | MCP-290-00059-0B • | 1 | Rail set+handles, quick/quick, optional for 4U 17.2"W tower | |||
Optional Storage Controller Card + Cable(s) | AOC-S3908L-H8IR-16DD-O | 1 | 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD w/ exp,RoHS | |||
Optional Storage Controller Card + Cable(s) | CBL-SAST-1261-100 • | 1 | Slimline x8 (STR) to 2x Slimline x4 (STR),60/60CM | |||
Trusted Platform Module Options | AOM-TPM-9670V-O | 1 | SPI capable vertical TPM 2.0 provisioned for server,RoHS |
Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
Coverage: | Replacement or repair |
Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
