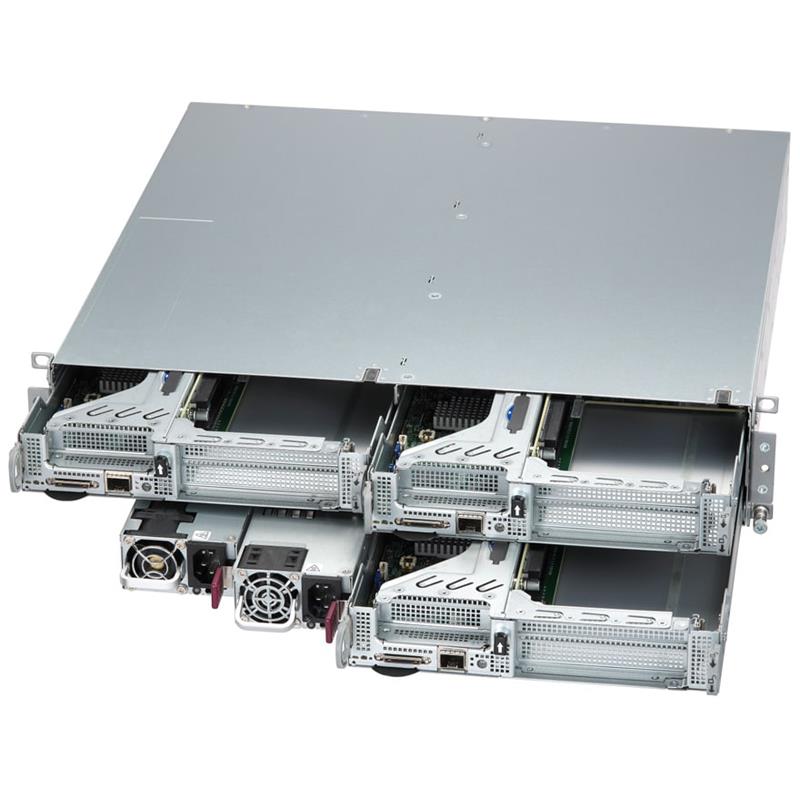

Supermicro SYS-211SE-31AS IoT 2U Barebone Single Intel Xeon Scalable Processors 5th and 4th Generation
• Multi-Access Edge Computing
• Flex-RAN, Open-RAN vBBU
• Telecom DRAN, CRAN, and Edge Core Application
• Enterprise Edge Computing
Barebone 2U Rackmount SuperServer, Per Node: Single Socket E (LGA-4677), Supporting Intel Xeon Scalable Processors 5th and 4th Generation, Intel C741 Chipset, Up to 2TB in 8 DIMM slots, RDIMM, Two M.2 NVMe M-Key 2280/22110, Network Connectivity : 1x 1GbE SFP (IPMI Shared on LAN port), 2000W Power Supply - (SYS-211SE-31AS + X13SEED-SF)
1. Single Socket E (LGA-4677) 5th Gen Intel® Xeon®/4th Gen Intel® Xeon Scalable processors (per node)
2. 8 DIMMs; Up to 2TB ECC DDR5-5600MT/s; R-DIMM / R-DIMM 3DS (per node)
3. 2 PCIe Gen5 x16 FHHL slot and 1 PCIe Gen5 x16 HHHL slot (per node)
4. 2 NVMe M.2 2280/22110 (per node)
5. 4 counter-rotated fan speed control (per node); 1 Air Shroud (per node)
6. Front-access 2000W AC Redundant Power Supplies (per system)
7. Operating Temperature 0°C to 35°C ( 32°F to 95°F ) CPU TDP max 300W Operating Temperature 0°C to 55°C ( 32°F to 131°F ) CPU TDP max 205W Operating Temperature -5°C to 55°C ( 23°F to 131°F ) CPU TDP max 205W (Short Term)
Extra Specifications for Supermicro SYS-211SE-31AS IoT 2U Barebone Single Intel Xeon Scalable Processors 5th and 4th Generation
Product SKUs | ||
Product SKUs | SYS-211SE-31AS | |
Motherboard | ||
Motherboard | Super X13SEED-SF | |
Processor (per Node) | ||
CPU | Single Socket E (LGA-4677) | |
4th Gen Intel® Xeon® Scalable processors | ||
Cores | Up to 20C/40T; Up to 60MB Cache | |
Note | Supports 85W - 300W TDP CPUs (Air Cooled) | |
CPUs (Air Cooled) with TDP over 205W are only supported under specific conditions. Contact customer support for details. | ||
System Memory (per Node) | ||
Memory | Memory Capacity: 8 DIMM slots | |
Up to 2TB: DDR5 ECC RDIMM/RDIMM | ||
Memory Type: 4800MHz ECC DDR5 RDIMM/LRDIMM | ||
Memory Voltage | 1.1 V | |
Error Detection | ECC | |
On-Board Devices (per Node) | ||
Chipset | Intel® C741 | |
Network Connectivity | 1x 1GbE SFP | |
IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
Input / Output (per Node) | ||
LAN | 1 SFP GbE LAN port (Shared NIC | |
Video | 1 VGA port(s) | |
Serial Port | 1 COM Port(s) (1 COM) | |
Others | 1 KVM dongle (output VGA x1, COM x1, USB 2.0 x2 through KVM cable) | |
Management | ||
Software | SuperDoctor® 5 | |
IPMI 2.0 | ||
Power Configurations | Power-on mode for AC power recovery | |
ACPI Power Management | ||
PC Health Monitoring | ||
CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
FAN | Status monitor for speed control | |
Pulse Width Modulated (PWM) fan connectors | ||
Fans with tachometer monitoring | ||
Temperature | Monitoring for CPU and chassis environment | |
CPU thermal trip support, PEPI | ||
Chassis | ||
Form Factor | 2U Rackmount | |
Model | CSE-SE201-R2K07P | |
Note | 16.9” (430mm) chassis depth | |
Front access IO design, and tool less serviceability | ||
Three front hot-swappable nodes with single CPU socket and 8 DIMM design | ||
Dimensions and Weight | ||
Height | 3.5" (88mm) | |
Width | 17.7" (449mm) | |
Depth | 16.9" (430mm) | |
Package | 9.5" (H) x 29.5" (W) x 23.2" (D) | |
Weight | Net Weight: 55.1 lbs (25 kg) | |
Gross Weight: 70.6 lbs (32 kg) | ||
Available Color | Silver | |
Front Panel | ||
Buttons | UID button | |
Power On/Off | ||
LEDs | Power status | |
LAN1 activity | ||
System information | ||
Expansion Slots (per Node) | ||
PCI-Express (PCIe) | 1 PCIe 5.0 x16 LP slot(s) | |
2 PCIe 5.0 x16 FHHL slot(s) | ||
Drive Bays / Storage (per Node) | ||
Drive Bays | N/A | |
M.2 | 2 M.2 NVMe | |
M-Key, 2280/22110 | ||
System Cooling | ||
Air Shroud | 3 Air Shroud(s) | |
Power Supply | ||
Dimension (W x H x L) | 73.5 x 40 x 265 mm | |
AC Input | 1800W: 200-220Vac / 9.8A-10A / 50-60Hz | |
1000W: 100-127Vac / 9A-12A / 50-60Hz | ||
2000W: 220-240Vac / 10A-11A / 50-60Hz | ||
+12V | Max: 83A / Min: 0A (100Vac-127Vac) | |
Max: 150A / Min: 0A (200Vac-220Vac) | ||
Max: 166A / Min: 0A (220Vac-240Vac) | ||
Certification | ||
Operating Environment | ||
Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
Operating Relative Humidity: 8% to 90% (non-condensing) | ||
Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
Operating Temperature: 0°C ~ 35°C (32°F ~ 95°F) | ||
Note | Operating Temperature(CPU TDP up to 205W): Continuous 0°C ~ 35°C (32°F ~ 95°F), Short term -5°C ~ 55°C (23°F ~ 131°F) | |
Operating Temperature (CPU TDP up to 300W) : Continuous0°C to 35°C (32°F to 95°F) |
Name | Part Number | Qty. | Description | |
---|---|---|---|---|
Motherboard / Chassis | MBD-X13SEED-SF | 3 | Super X13SEED-SF Motherboard | |
Motherboard / Chassis | CSE-SE201-R2K07P | 1 | 2U Chassis | |
Add-on Card / Module | AOM-BPN-SE3N-P | 1 | Backplane for SuperEdge 2U3N,RoHS | |
Cable | CBL-0218L | 3 | 11.5CM KVM/SUVI 36PIN TO 9PIN/15PIN/2USB | |
Riser Card | RSC-W-66G5 | 3 | 1U LHS WIO Riser card with two PCIe 5.0 X16 slots,HF,R | |
Riser Card | RSC-WR-6G5 | 3 | 1U RHS WIO Riser card with one PCIe 5.0 X16 slot,HF,Ro | |
Software | SFT-OOB-LIC | 3 | License key for enabling OOB BIOS management | |
Heatsink / Retention | SNK-P1046V | 3 | 1U Prop. Passive HS for Intel B13 Blade Series | |
*Power Supply | PWS-2K07F-1R | 2 | 1U 2000W 90-264Vac/47-63Hz, wide DC input 180Vdc-300Vdc, 12V | |
*Power Distributor | PDB-PT201-DSG | 2 | Super Edge pass through board support Ultra powers up to 6KW |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Name | Part Number | Price | Add to Cart | Qty. | Description | |
---|---|---|---|---|---|---|
Optional sliding rail kit | MCP-290-00144-1N | $ 92.50 | 0 | 2U fixed rail set, quick release, default for 2,3U 17.6"W, 26.5"-33.5" D | ||
TPM security module | AOM-TPM-9670V | $ 56.50 | 0 | SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor |
Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
Coverage: | Replacement or repair |
Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
