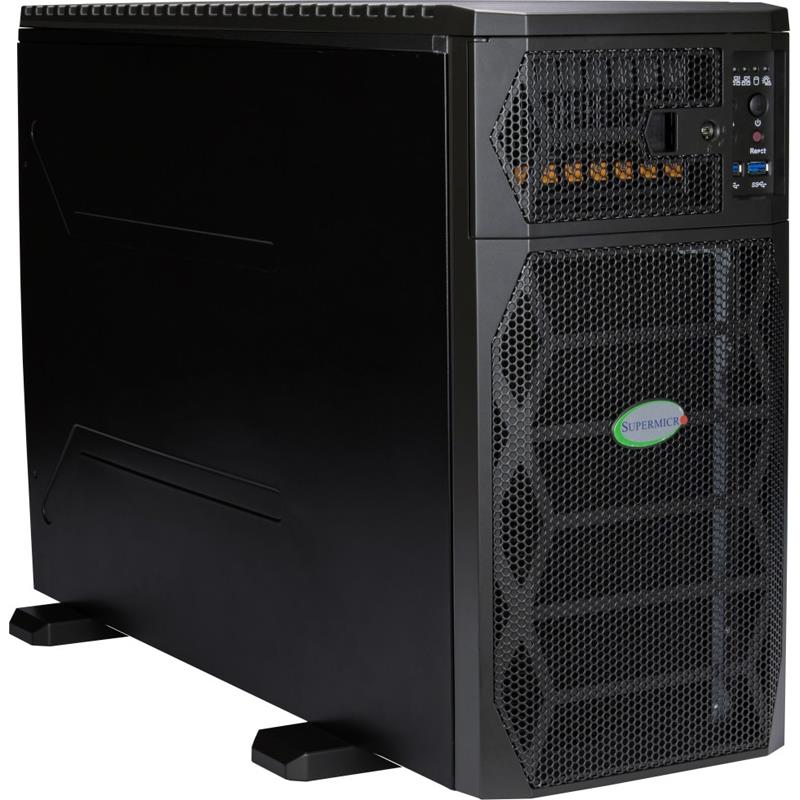

Supermicro SYS-751GE-TNRT GPU Tower or 5U Rackmount Dual Intel Xeon Scalable Processors 5th and 4th Generation
• High Performance Computing
• Engineering/scientific research
• AI/Deep Learning Training
Barebone Tower or 5U Rackmount, Supports Dual Socket E (LGA-4677), Supporting Intel Xeon Scalable Processors 5th and 4th Generation, Intel C741 Chipset, Up to 2TB in 16 DIMM slots, RDIMM, On-Board : SATA3 (6Gbps), RAID 0/1/5/10 Support, 8x 2.5in Hot-swap NVMe/SATA Drive Bays (8x 2.5in NVMe Hybrid), 2 M.2 NVMe, Network Connectivity : 2 RJ45 10GbE, 1 RJ45 1GbE (Dedicated IPMI Port), Others: 4 NVMe U.2, 2 SlimSAS Port, 2 SuperDOM Port, 1 VGA port, 2200W Power Supply - (SYS-751GE-TNRT + X13DEG-QT)
1. Acoustically optimized for quiet operation
2. 5th/4th Gen Intel® Xeon® Scalable processor support
3. Intel® C741 Chipset
4. 6 PCIe 5.0 x16
5. 8x 2.5" peripheral drive bays Up to 8x NVMe SSD support
6. Closed-loop liquid cooling for CPUs and GPUs
7. Supports up to four liquid-cooled GPUs
Extra Specifications for Supermicro SYS-751GE-TNRT GPU Tower or 5U Rackmount Dual Intel Xeon Scalable Processors 5th and 4th Generation
Product SKUs | ||
Product SKUs | SYS-751GE-TNRT | |
Motherboard | ||
Motherboard | Super X13DEG-QT | |
Processor | ||
CPU | Dual Socket E (LGA-4677) | |
4th Gen Intel® Xeon® Scalable processors | ||
Cores | Up to 60C; Up to 112.5MB Cache | |
Note | Supports up to 350W TDP CPUs (Liquid Cooled) | |
Certain CPU SKUs are conditionally supported, please contact Supermicro Technical Support for additional information about specialized system optimization | ||
System Memory | ||
Memory | Memory Capacity: 16 DIMM slots | |
Up to 2TB: 16x 128 GB DRAM | ||
Memory Type: 4800MHz ECC DDR5 DRAM | ||
Note | Memory DIMM capacities larger than 16GB are supported under certain conditions, please contact Supermicro Technical Support for additional information about specialized system optimization | |
Memory Voltage | 1.1 V | |
Error Detection | ECC | |
On-Board Devices | ||
SATA | SATA3 (6Gbps); RAID 0/1/5/10 support | |
Chipset | Intel® C741 | |
Network Connectivity | 2x 10GbE BaseT with Intel® X550-AT2 | |
1x 1GbE BaseT with ASPEED AST2600 | ||
IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
Input / Output | ||
SATA | 2 SuperDOM port(s) | |
2 SlimSAS port(s) | ||
NVMe | 4 NVMe U.2 | |
LAN | 1 RJ45 1GbE (Dedicated IPMI port) | |
2 RJ45 10GbE | ||
USB | 2 USB 3.2 Gen1x2; port(s) (2 Front_USB) | |
1 USB 3.2 Gen2x1 (Type C) port(s) (1 Rear_USB) | ||
3 USB 3.2 Gen1 port(s) (3 Rear_USB) | ||
Video | 1 VGA port(s) | |
System BIOS | ||
BIOS Type | AMI 32MB SPI Flash EEPROM | |
Management | ||
Software | Watch Dog | |
NMI | ||
KVM with dedicated LAN | ||
Redfish API | ||
SuperDoctor® 5 | ||
Intel® Node Manager | ||
IPMI 2.0 | ||
SUM | ||
SSM | ||
SPM | ||
OOB Management Package (SFT-OOB-LIC ) | ||
Power Configurations | Power-on mode for AC power recovery | |
ACPI Power Management | ||
PC Health Monitoring | ||
CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
8+4 Phase-switching voltage regulator | ||
FAN | Status monitor for speed control | |
Pulse Width Modulated (PWM) fan connectors | ||
Fans with tachometer monitoring | ||
Temperature | Monitoring for CPU and chassis environment | |
Thermal Control for fan connectors | ||
Chassis | ||
Form Factor | Tower or 5U Rackmount | |
Model | CSE-759TS-R2K21BP | |
Dimensions and Weight | ||
Height | 8.6" (218.4mm) | |
Width | 17.9" (454.7mm) | |
Depth | 27.6" (701mm) | |
Package | 25.8" (H) x 15.3" (W) x 37.6" (D) | |
Weight | Net Weight: 88 lbs (44 kg) | |
Gross Weight: 121 lbs (55 kg) | ||
Available Color | Black Front & Black Body | |
Front Panel | ||
Buttons | Power On/Off button | |
Reset button | ||
LEDs | Power status LED | |
HDD activity LED | ||
Information LED | ||
Network 1 activity LED | ||
Network 2 activity LED | ||
Expansion Slots | ||
PCI-Express (PCIe) | 7 PCIe 5.0 x16 FHFL slot(s) | |
Drive Bays / Storage | ||
Hot-swap | 8x 2.5" hot-swap NVMe/SATA drive bays (8x 2.5" NVMe hybrid) | |
M.2 | 2 M.2 NVMe | |
System Cooling | ||
Fans | 1 fan 8CM Fan(s) | |
2 fan 12CM Fan(s) | ||
Liquid Cooling | Direct to Chip (D2C) Cold Plate (optional) | |
Power Supply | ||
Dimension (W x H x L) | 106.5 x 82.1 x 203.5 mm | |
AC Input | 1800W: 200-220Vac / 9.5A-10A / 50-60Hz | |
2090W: 230-240Vac / 9.8A-10A / 50-60Hz | ||
1200W: 100-127Vac / 9.5A-12A / 50-60Hz | ||
1980W: 220-230Vac / 9.5A-10A / 50-60Hz | ||
2200W: 220-240Vac / 9.6A-11.8A / 50-60Hz (UL/cUL only) | ||
2090W: 230-240Vdc / 9.8A-10A / 50-60Hz (China only) | ||
Output Type | Backplanes (connector) | |
Certification | Titanium Level | |
Operating Environment | ||
Environmental Spec. | Operating Relative Humidity: 8% to 90% (non-condensing) | |
Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
Operating Temperature: 10°C ~ 25°C (50°F ~ 77°F) |
Name | Part Number | Qty. | Description | |
---|---|---|---|---|
Motherboard / Chassis | MBD-X13DEG-QT | 1 | Super X13DEG-QT Motherboard | |
Motherboard / Chassis | CSE-759TS-R2K21BP | 1 | Tower or 5U Chassis | |
Backplane | BPN-NVME5-HS219N-S8 | 1 | 2U 8-port Hybrid backplane support up to 8x SAS3/SATA2/NVMe5 | |
Cable | CBL-MCIO-1250M5-Z | 2 | MCIO x8 (STR to STR),50cm,30AWG,RoHS | |
Cable | CBL-MCIO-1260M5 | 2 | MCIO (x8 STR to x8 STR),60CM,30AWG,85OHM,RoHS | |
Cable | CBL-PWEX-1142-60 | 1 | MicroHi,(2X4 to 2X4) P3.0,60CM,8A/pin,18AWG,RoHS | |
Cable | CBL-SAST-1245-100 | 2 | Slimline x4 (STR) to Slimline x4 (STR),42.5CM,100 OHM,R | |
Cable | CBL-0156L | 1 | ROUND 16PIN TO 16PIN FP CABLE,40CM, PB FREE | |
Cable | CBL-CDAT-0560 | 1 | Audio Cable HD / AC97 -80cm, 28AWG,HF,RoHS/REACH,PBF | |
Cable | CBL-CUSB-0860 | 1 | USB 3.0,INT,20 PIN/F TO 20PIN/F,60CM,30/26AWG | |
Parts | MCP-260-00180-0B | 1 | STD I/O Shield for X13DEG-QT with EMI Gasket & Black Mylar | |
Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
Heatsink / Retention | SNK-P3067-ABT | 1 | COLD PLATE# 01, INTEL X13 CPU, 5U AI WORKSTATION, SYS-751GE-TNRT-NV1 | |
Heatsink / Retention | SNK-P3068-ABT | 1 | COLD PLATE# 02, INTEL X13 CPU, 5U AI WORKSTATION, SYS-751GE-TNRT-NV1 | |
*Power Supply | PWS-2K21A-SQ | 2 | 2U 1200W/2200W Redundant Titanium w/PMBus power supply, W106.5xH82.1xL203.5mm, C14 inlet, EMI class B | |
*Power Distributor | PDB-PT759-DHG | 1 | 5U GPU PDB input Ultra PWS redundancy and output support 6K | |
*Power Distributor | PDB-PT759-DSG | 1 | 5U GPU PDB gold finger input and output support up to 6KW,Ro | |
*Fan | FAN-0074L4-2 | 1 | 80x80x38 mm, 6.1K RPM, Cooling Fan for SYS-751GE-TNRT-1,RoHS | |
*Fan | FAN-0243L4 | 2 | 120x120x38 mm, 4.7K RPM Exhaust Fan for SYS-751GE-TNRT,RoHS | |
*Control Board | FPB-FP759 | 1 | Front Panel LED board for CSE-759 chassis, RoHS | |
*Front Bezel | MCP-210-75901-0B | 1 | Plastic front bezel for SC759 | |
*Drive Tray(s) | MCP-220-00196-0B | 8 | Metallic black gen-3 hot-swap 2.5 NVMe tool-less tray |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Name | Part Number | Price | Add to Cart | Qty. | Description | |
---|---|---|---|---|---|---|
Optional rack mount rail set | MCP-290-00057-0N • | 1 | Rail set, quick/quick, default for 4U 17.2" W | |||
Optional Storage Controller Card + Cable(s) | AOC-S3908L-H8IR-16DD-O | 1 | 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD w/ exp,RoHS | |||
Optional Storage Controller Card + Cable(s) | CBL-SAST-1281-100 | $ 50.00 | 1 | Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM |
Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
Coverage: | Replacement or repair |
Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
