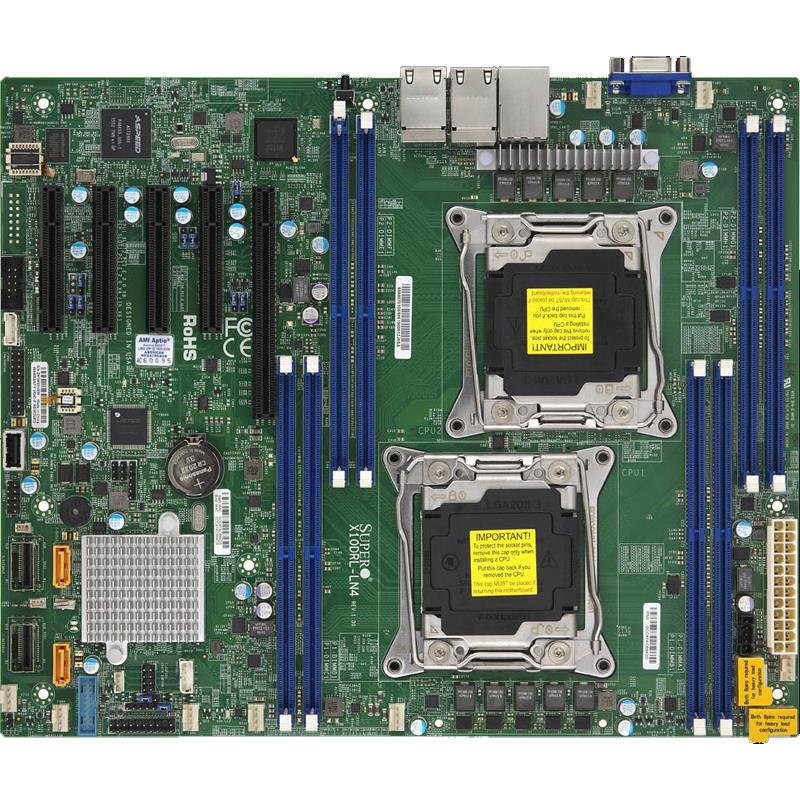

Supermicro X10DRL-LN4 Motherboard ATX Intel C612 Chipset Dual Socket R3 LGA 2011
• SATA 6Gbps controller w/ RAID 0; 1; 5; 10 onboard
• Supports Intel Management Engine; MCTP Protocol
• Quad GbE LAN ports; 7 USB ports; 2 SuperDOM ports
• Up to 1TB ECC; LRDIMM DDR4-2400MHz; 8x DIMM slots
Motherboard ATX Intel C612 Chipset Dual Socket R3 LGA 2011 for Dual Intel Xeon E5-2600 v4/v3 Family Processors, QPI up to 9.6GT/s - Supports up to 1TB DDR4 ECC 3DS LRDIMM up to 2400MHz in 8x 288-pin sockets - On-Board : AHCI SATA3 6Gbps (RAID 0, 1, 5, 10), SCU SATA3 6Gbps (RAID 0, 1, 5, 10), IPMI 2.0, Intel i350 4x Gigabit Ethernet Controller, VGA - MBD-X10DRL-LN4 -O (Retail Box)
• Intel C612 chipset
• Quad GbE LAN ports via Intel® i350
• 10x SATA3 (6Gbps); RAID 0, 1, 5, 10
• Integrated IPMI 2.0 and KVM with Dedicated LAN
• Up to 1TB ECC 3DS LRDIMM, up to DDR4- 2400MHz; 8x DIMM slots
• 2x USB 3.0 (2 via header), 5x USB 2.0 (2 rear, 2 via header, 1 Type A)
• 1x PCI-E 3.0 x16, 2x PCI-E 3.0 x8, 1x PCI-E 3.0 x4 (in x8 slot), 1x PCI-E 2.0 x4 (in x8 slot)
• Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s
Extra Specifications for Supermicro X10DRL-LN4 Motherboard ATX Intel C612 Chipset Dual Socket R3 LGA 2011
| Main Specifications | ||
| Device Type | Xeon Board | |
| Dimensions (WxDxH) | 12" x 10" (30.48cm x 25.4cm) | |
| Form Factor | ATX | |
| QPI | QPI up to 9.6 GT/s | |
| Processor | ||
| Cache | Up to 22 Cores / Up to 55MB Cache | |
| Compatible Processors | Intel Xeon processor E5-2600 v4 / v3 family (up to 145W TDP**) | |
| Compatible Socket | Dual Socket R3 (LGA 2011) | |
| System Memory | ||
| DIMM Sizes | LRDIMM: 64GB, 32GB | |
| 3DS LRDIMM: 128GB | ||
| RDIMM: 32GB, 16GB, 8GB, 4GB | ||
| Error Detection | Corrects single-bit errors | |
| Memory Capacity | 8x 288-pin DDR4 DIMM slots | |
| Up to 1TB ECC 3DS LRDIMM, 1TB ECC RDIMM | ||
| Memory Voltage | 1.2 V | |
| Cache Memory | ||
| Memory Type | 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| On-Board Devices | ||
| Chipset | Intel C612 chipset | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Video | Aspeed AST2400 BMC | |
| Network Controllers | Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | |
| 1x Realtek RTL8211E PHY (dedicated IPMI) | ||
| Intel i350 Gigabit Ethernet controller | ||
| TPM | 1x TPM Header | |
| USB | 5x USB 2.0 ports (2 rear, 2 via header, 1 Type A) | |
| 2x USB 3.0 ports (2 via header) | ||
| Input / Output | ||
| SATA | 10x SATA3 (6Gbps) ports | |
| AHCI SATA: SATA3 (6Gbps), RAID 0, 1, 5, 10 | ||
| SCU SATA: SATA3 (6Gbps), RAID 0, 1, 5, 10 | ||
| DOM | 2x SuperDOM (Disk on Module) ports | |
| LAN | 4x RJ45 Gigabit Ethernet LAN ports | |
| 1x RJ45 Dedicated IPMI LAN port | ||
| Serial Port / Header | 1x COM port (1 header) | |
| VGA | 1x VGA Port | |
| Chassis Optimized for | ||
| 2U Chassis | SC823TQ-653LPB, SC825TQ-563LPB, SC825TQ-R740LPB, SC213LT-600LPB | |
| 3U Chassis | SC833T-653B | |
| Mid-Tower | SC732i-500B | |
| Tower / 4U Rackmount | SC842TQ-665B, SC842TQ-865B | |
| Expansion / Connectivity | ||
| Expansion Slots Total Free | 1x PCI-E 3.0 x16 | |
| Expansion Slots Total (Free) | 1x PCI-E 3.0 x4 (in x8 slot) | |
| 2x PCI-E 3.0 x8 | ||
| 1x PCI-E 2.0 x4 (in x8 slot) | ||
| System BIOS | ||
| BIOS Features | Plug and Play (PnP), PCI 2.3, ACPI 3.0 / 4.0, USB Keyboard support, SMBIOS 2.7.1, UEFI 2.3.1 | |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| Management | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| Software | IPMI 2.0, KVM with dedicated LAN, SPM, SUM, SuperDoctor 5, Watch Dog | |
| PC Health Monitoring | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| 8x fans with tachometer monitoring | ||
| 8x 4-pin fan headers (up to 8 fans) | ||
| LED | UID/Remote UID | |
| CPU / System Overheat LED | ||
| Suspend static indicator LED | ||
| Other Features | Chassis intrusion detection | |
| Chassis intrusion header | ||
| Dual Cooling Zones | ||
| Voltage | Monitors for CPU Cores, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 8 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility | |
| CPU | 5 Phase-switching voltage regulator | |
| Miscellaneous | ||
| Compliant Standards | RoHS | |
| Environmental Parameters | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU thermal trip support | ||
| Thermal control for 8x Fan connectors | ||
| PECI | ||
| Thermal Monitor 2 (TM2) support | ||
| Operating Humidity | 5 - 95% (non-condensing) | |
| Operating Temperature | 10C - 35C (50F - 95F) | |
| Operating Environment (System) | ||
| Non-Operating Temperature Range | -40C - 70C (-40F - 158F) | |
| Environmental | ||
| Operating Relative Humidity | 8% - 90% (non-condensing) | |
| Parts List | ||
| I/O Cables | 2x CBL-0044L | |
| I/O Shield | 1x MCP-260-00062-1N | |
| Motherboard | 1x MBD-X10DRL-LN4 | |
