| System Memory |
| DIMM Sizes | 2GB, 4GB, 8GB |
| Memory Capacity | 1 DIMM slots |
| Up to 8GB Unbuffered non-ECC SODIMM, DDR3-1866MHz |
| Memory Type | 1866 MT/s non-ECC DDR3 SODIMM Unbuffered DDR3L up to 8GB |
| Memory Voltage | 1.35V |
| PC Health Monitoring |
| LED | Power LED |
| FAN | Low noise fan speed control |
| Fan speed control |
| PWM fan speed control |
| System level control |
| Thermal control tachometer fan connectors |
| 2x 4-pin fan headers (up to 2 fans) |
| Other Features | WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ATX Power connector, ACPI power management, 12V DC or ATX Power Source, 4-pin 12v DC power connector |
| Voltage | System level control, Monitors CPU voltages, +5V standby, +5V, +3.3V, +12V, +1.8V |
| Temperature | CPU thermal trip support |
| On-Board Devices |
| Chipset | System on Chip |
| Network Controllers | Dual LAN with Intel® Ethernet Controller I210-AT |
| SATA | SoC controller for 2 SATA3 (6 Gbps) ports |
| Marvel 88SE9230 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,10 |
| Audio | ALC 888S HD Audio |
| Graphics | 1 Intel® HD Graphics port(s) |
| Input / Output |
| SATA | 6 SATA3 (6Gbps) port(s) |
| Others | 1 COM in RJ45 |
| 1 COM in RS232 |
| 1 COM in RS485 |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports |
| USB | 2 USB 3.0 port(s) (2 rear) |
| 8 USB 2.0 port(s) (2 rear; 1 Type A; 5 via header) |
| Video Output | 1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s) |
| Serial Port | 3 COM Port(s) (1 rear; 2 header) |
| DOM | 1 Super DOM (Disk on Module) port with build power |
| TPM | 1 TPM Header |
| System BIOS |
| BIOS Features | UEFI 2.4 |
| ACPI 5.0 |
| USB Keyboard support |
| Plug and Play (PnP) |
| DMI 2.3 |
| BIOS Type | AMI UEFI |
| Management |
| Power Configurations | ACPI Power Management |
| Software | SuperDoctor® 5, Watchdog |
| Product SKUs |

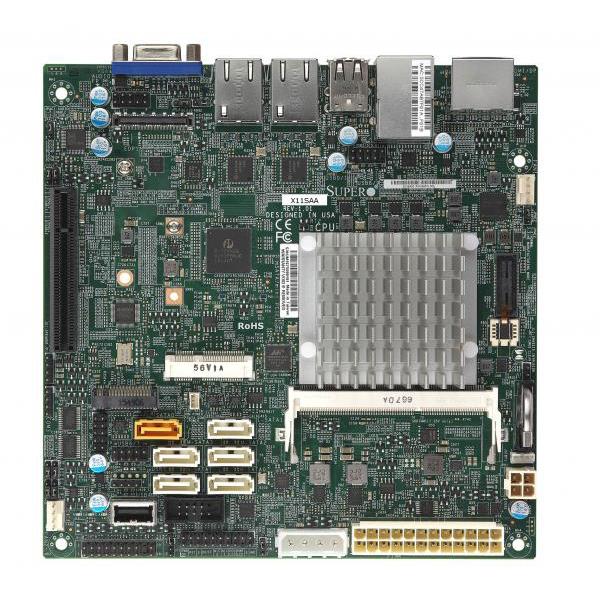

| Product SKUs | MBD-X11SAA |
| Physical Stats |
| Form Factor | Mini-ITX |
| Dimension | 6.7" x 6.7" (17.02cm x 17.02cm) |
| Processor |
| CPU | Intel® Pentium™ Processor N4200 |
| Single Socket FCBGA-1296 supported, CPU TDP supports Up to 6W TDP |
| Expansion Slots |
| PCIe | 1 PCIe 2.0 x2 (in x8 slot) |
| 1x Mini-PCIe with mSATA |
| M.2 | Key: M-Key |
| Form Factor: 2280, 2242 |
| M.2 Interface: SATA; PCIe 2.0 x2 |
| Operating Environment |
| Operating Temperature Range | 0°C - 60°C (32°F - 140°F) |
| Non-Operating Temperature Range | -20°C - 60°C (-4°F - 140°F) |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) |
