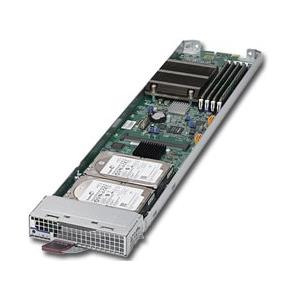

Supermicro MBI-6119G-C2 MicroBlade Barebone Single Processor

MicroBlade microServer with single Socket H4 (LGA 1151) for Intel Xeon processor E3-1200 v5

Supermicro MBI-6119G-C2 MicroBlade Barebone Single Processor

• 196 UP nodes per 42U Rack
• 28/14 UP nodes in 6U/3U

MicroBlade microServer with single Socket H4 (LGA 1151) for Intel Xeon processor E3-1200 v5 - Supports up to 64GB DDR4 ECC VLP UDIMM in 4 slots - On-Board : Intel C236 chipset, SAS3 12Gbps via Avago 3008, Redundant 1GbE SDN switches with 40Gbps / 10Gbps uplinks, Dual 1GbE LAN ports, IPMI v2.0 - Includes : 2x 2.5in SAS3 12Gbps HDD, MicroBlade Board (MBD-B2SS1-CPU-P) - This part can only be sold with the enclosure - If you already have the enclosure please search for part number MBI-6119G-C2-PACK

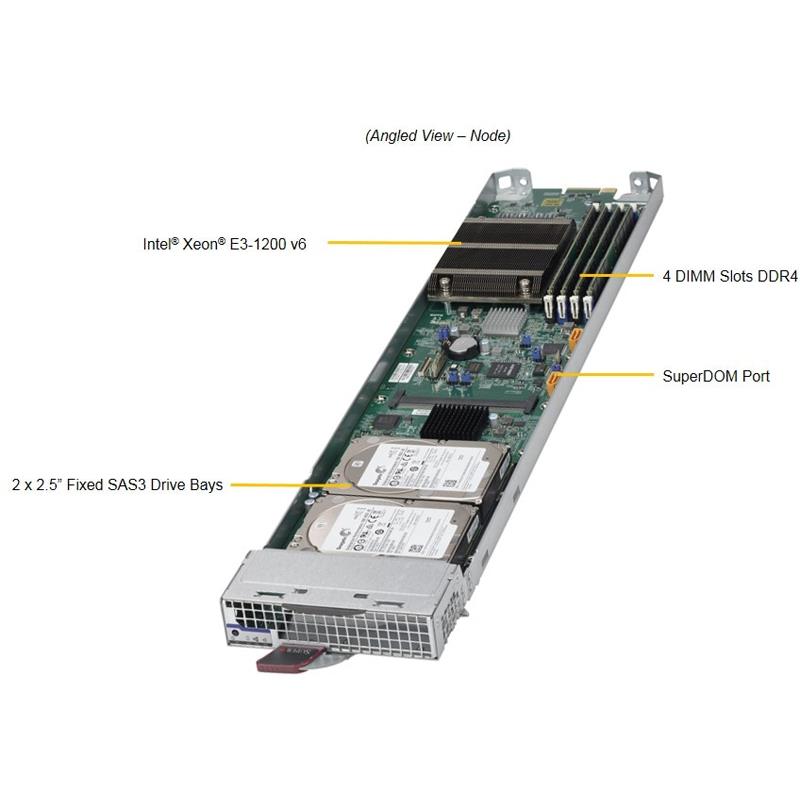

1. Socket H4 (LGA 1151) supports Intel® Xeon® E3-1200 v6/v5 processor family
2. Up to 64GB ECC VLP UDIMM DDR4-2400MHz in 4 DIMM slots
3. Up to 2x 2.5" SAS3 (12Gbps) HDDs
4. Dual 1GbE LAN ports via Intel i350 Dedicated LAN supports IPMI 2.0

Extra Specifications for Supermicro MBI-6119G-C2 MicroBlade Barebone Single Processor

Product SKUs
Product SKUs
Motherboard
Motherboard
Processor/Cache
CPU	Single Socket H4 (LGA 1151) supports:
	CPU TDP up to 80W
	Intel® Xeon® processor E3-1200 v6/v5,
Note	BIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series Processors
System Memory
Memory Capacity	4x DDR4 DIMM sockets
	Supports up to 64GB DDR4 ECC VLP UDIMM
Memory Type	2400MHz ECC DDR4 UDIMM
DIMM Sizes	16GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors
	Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset	Intel® C236 chipset
SAS	SAS3 (12Gbps) via Avago 3008
Network Controllers	Redundant 1GbE SDN switches with 40Gbps/10Gbps uplinks
	Dual 1GbE LAN ports
IPMI	Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)
System BIOS
BIOS Type	128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features	SMBIOS 2.7.1
	Plug and Play (PnP)
	APM 1.2
Dimensions
Height	1.2" (30.48mm)
Width	4.94" (125.48mm)
Depth	23.2" (589.28mm)
Available Colors	Silver Grey
Front Panel
LEDs	Power LED
	UID / KVM LED
	Network Activity LED
	Fault LED
Drive Bays
Internal	2x 2.5" SAS3 (12Gbps) HDD
Operating Environment / Compliance
Environmental Spec.	Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
	Operating Relative Humidity: 8% to 90% (non-condensing)
	Non-operating Relative Humidity: 5% to 95% (non-condensing)
	Operating Temperature: 10°C to 38°C (50°F to 100.4°F)
Electromagnetic Compatibility (EMC)
United States / Canada	FCC- Emissions (US) Verification
Europe	EN55022 - Emissions
	EN55024 - Immunity
	EN61000-3-2 - Harmonics
	EN61000-3-3 - Voltage Flicker
	CE - EMC Directive 89/336/EEC

Name	Part Number	Qty.	Description
Motherboard	MBD-B2SS1-CPU-P	1	MicroBlade Board
MicroBlade Sled	MCP-680-31408-0N	1	M628 MicroBlade Modularized Skylake UP
Micro Blade Module Chassis	MCP-620-31409-0NMCP-620-31411-0NMCP-620-31412-0NMCP-640-31409-0N	1111	M628 Sled Node Cover with asset tagM628 Modularized Skylake UP 2x 2.5" HDD bracketM628 Sled Front Window with asset tag opening - VerticalM628 MicroBlade Modularized Skylake UP w/ 3008 Sled Base
Air Shroud	MCP-310-31405-0N	1	M628 MicroBlade Modularized Skylake UP Air Shroud
	Add-on Card	AOM-BPNIO-MSC-P	1	I/O module for uBlade, RoHS

Warranty:	3 years labor, 1 year parts, 1 year advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 1 year, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Supermicro
Type of Support:	FULL
Phone No.:	408-503-8000
URL:	Click here for Manufacturer Website

Supermicro MBI-6119G-C2 MicroBlade Barebone Single Processor

$ 492.00$ 492.00492.0USD

$ 492.00
