| Main Specifications |
| Dimensions (WxDxH) | Height 1.2" (30.48mm) x Width 4.94" (125.48mm) x Depth 23.2" (589.28mm) |
| Enclosure Color | Silver Grey |

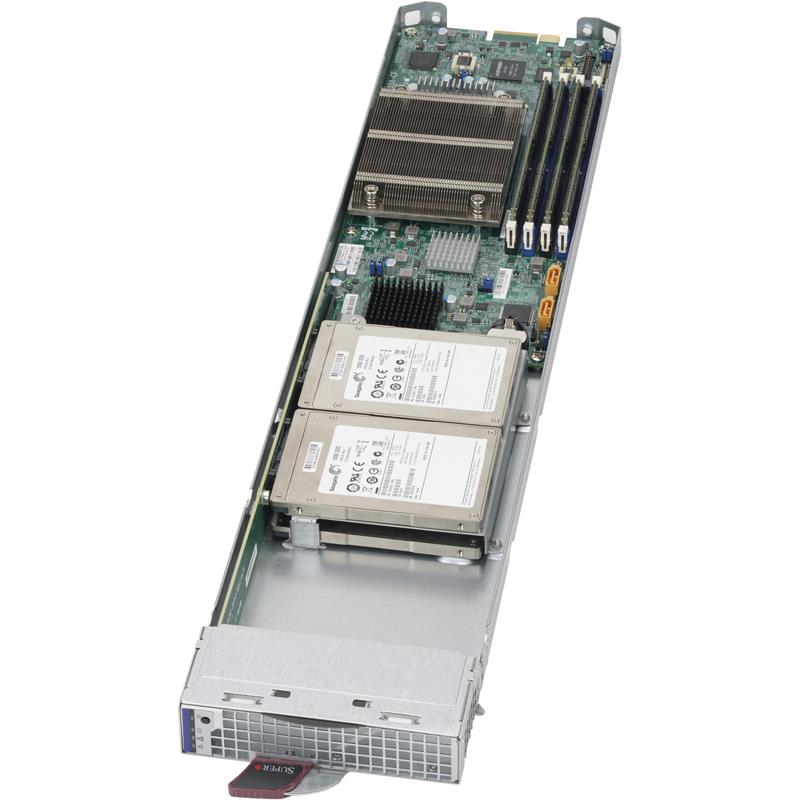

| Type | MicroBlade |
| Storage Capacity | 16GB |
| Parts List |
| Motherboard | B2SS1-CF |
| Processor |
| Compatible Processors | Intel Xeon processor E3-1200 v5, CPU TDP up to 80W |
| Processor Sockets | Single Socket H4 (LGA 1151) |
| System Memory |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
| Memory Capacity | 4x DDR4 DIMM sockets |
| Supports up to 64GB DDR4 ECC VLP UDIMM |
| Memory Voltage | 1.2 V |
| Cache Memory |
| Memory Type | 2133MHz ECC DDR4 UDIMM |
| On-Board Devices |
| Chipset | Intel C236 chipset |
| IPMI | Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM) |
| Network Controllers | Redundant 1GbE SDN switches with 40Gbps/10Gbps uplinks |
| Dual 1GbE LAN ports |
| SAS | SAS3 (12Gbps) via Avago 3008 |
| System BIOS |
| BIOS Features | Plug and Play (PnP), APM 1.2, SMBIOS 2.7.1 |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| Front Panel |
| LEDs | Power LED, Fault LED, Network Activity LED, UID / KVM LED |
| Drive Bays |
| Internal | 2x 2.5" SAS3 (12Gbps) HDD or 4x 2.5" SAS3 (12Gbps) SSD per blade |
| Environmental Parameters |
| Operating Temperature | Non-operating Temperature: -40C to 70C (-40F to 158F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 10C to 38C (50F to 100.4F) |
| Electromagnetic Compatibility (EMC) |
| Europe | EN55022 - Emissions |
| EN55024 - Immunity |
| EN61000-3-2 - Harmonics |
| EN61000-3-3 - Voltage Flicker |
| CE - EMC Directive 89/336/EEC |
| United States / Canada | FCC- Emissions (US) Verification |
| Parts List - (Items Included) |
| Add-On Card | 1x AOM-BPN-MS14CS-P |
| Air Shroud | 1x MCP-310-31404-0N |
| Micro Blade Module Chassis | 2x MCP-620-31401-0N, 1x MCP-620-31409-0N, 1x MCP-620-31410-0N, 1x MCP-640-31407-0N |
| MicroBlade Sled | 1x MCP-650-31401-0N |
| Motherboard / Chassis | 1x MBD-B2SS1-CF-P |
