  2. Supermicro MBI-6219G-T7LX MicroBlade Barebone Single Processor

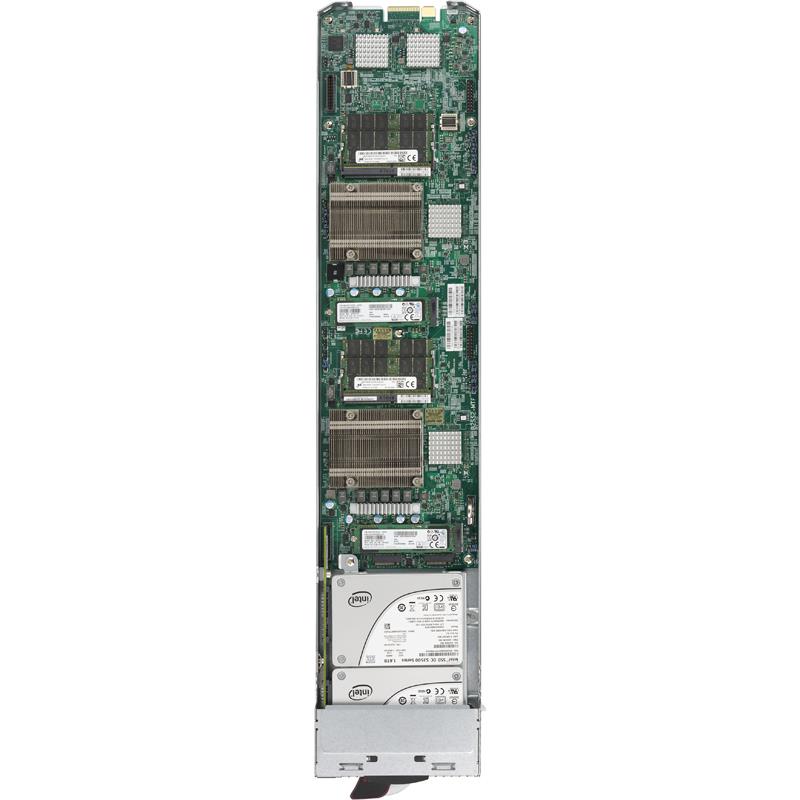

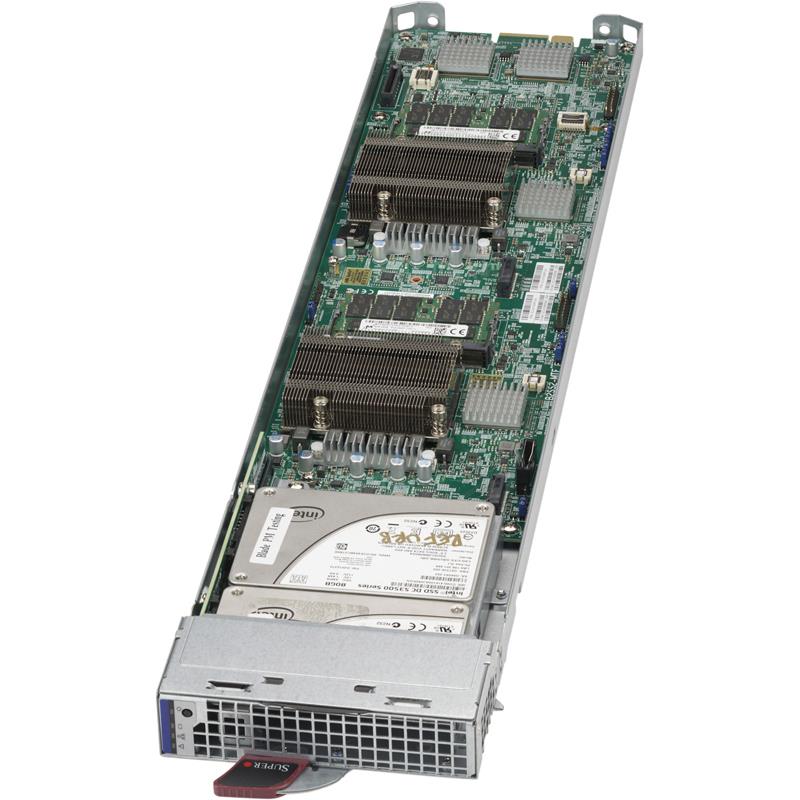

Supermicro MBI-6219G-T7LX MicroBlade Barebone Single Processor
MicroBlade microServer with single Socket FCBGA 1440 for Intel Xeon processor E3-1578L v5

Supermicro MBI-6219G-T7LX MicroBlade Barebone Single Processor

• 392 Skylake UP nodes per 42U Rack
• 56/28 Skylake-H UP nodes in 6U/3U
• 2 Independent Nodes per Module;
• Each Node Supports:

MicroBlade microServer with single Socket FCBGA 1440 for Intel Xeon processor E3-1578L v5 - Supports up to 32GB Unbuffered ECC SO-DIMM, in 2 DIMM slots per node - On-Board : Intel C236 chipset, SATA3 6Gbps via chipset, Dual 10GbE LAN ports, Redundant 1GbE SDN switches with 40Gbps/10Gbps uplinks, IPMI v2.0 - Includes : 1x 2.5in SATA3 6Gbps SSD per blade, 1x M.2 (80mm PCI-E 3.0 x4), 1x M.2 (110mm PCI-E 3.0 x4), 1x SATADOM, MicroBlade Board (MBD-B2SS2-MTF) - This part can only be sold with the enclosure - If you already have the enclosure please search for part number MBI-6219G-T7LX-PACK

$ 2,091.00$ 2,091.002091.0USD

$ 2,091.00

Option not available

OutOfStock
6 lb
FREE SHIPPING

    This combination does not exist.

    Add to Cart

    1. Socket FCBGA 1440; Intel® Xeon® processor E3-1578L v5
    2. Up to 32GB DDR4-2133MHz ECC SO-DIMM in 2 DIMM slots per node
    3. 1x 2.5" SATA3 SSDs, 1x SATADOM, 1x M.2 (80mm PCI-E 3.0 x4), 1x M.2 (110mm PCI-E 3.0 x4)
    4. Dual 10GbE LAN ports via Intel X710-BM2
    5. Dedicated LAN supports IPMI 2.0

    Extra Specifications for Supermicro MBI-6219G-T7LX MicroBlade Barebone Single Processor

    Motherboard
    Motherboard
    Processor/Cache (per Node)
    CPUSingle Socket FCBGA 1440 supports:
    Intel® Xeon® processor E3-1578L v5 processors
    CPU TDP up to 45W
    System Memory (per Node)
    Memory CapacityUp to 32GB Unbuffered ECC SO-DIMM, in 2 DIMM slots per node
    Memory Type2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 260-pin SO-DIMMs
    DIMM Sizes16GB, 8GB
    Memory Voltage1.2 V
    On-Board Devices
    ChipsetIntel® C236 chipset
    SATASATA3 (6Gbps) via chipset
    Network ControllersRedundant 1GbE SDN switches with 40Gbps/10Gbps uplinks
    Dual 10GbE LAN ports
    IPMISupport for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)
    System BIOS
    BIOS TypeAMI UEFI
    BIOS FeaturesACPI 5.0
    Plug and Play (PnP)
    DMI 2.3
    PCI 3.0
    SMBIOS 3.0
    UEFI 2.3.1
    Dimensions
    Height1.2" (30.48mm)
    Width4.94" (125.48mm)
    Depth23.2" (589.28mm)
    WeightGross Weight: 5.01 lbs (2.27 kg)
    Available ColorsSilver Grey
    Front Panel
    LEDsPower LED
    UID / KVM LED
    Network Activity LED
    Fault LED
    Drive Bays (per Node)
    Internal1x 2.5" SATA3 (6Gbps) SSD
    1x M.2 (80mm PCI-E 3.0 x4)
    1x M.2 (110mm PCI-E 3.0 x4)
    1x SATADOM
    Operating Environment / Compliance
    Environmental Spec.Operating Temperature: 10°C to 35°C (50°F to 95°F)
    Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)
    Electromagnetic Compatibility (EMC)
    United States / CanadaFCC- Emissions (US) Verification
    EuropeEN55022 - Emissions
    EN55024 - Immunity
    EN61000-3-2 - Harmonics
    EN61000-3-3 - Voltage Flicker
    CE - EMC Directive 89/336/EEC
    Product SKUs
    Product SKUs

    If you need Technical Support for this item please contact:

    Provider:Supermicro
    Type of Support:FULL
    Phone No.:408-503-8000
    URL:Click here for Manufacturer Website
