MicroBlade microServer with single Socket FCBGA 1440 for Intel Xeon processor E3-1585 v5

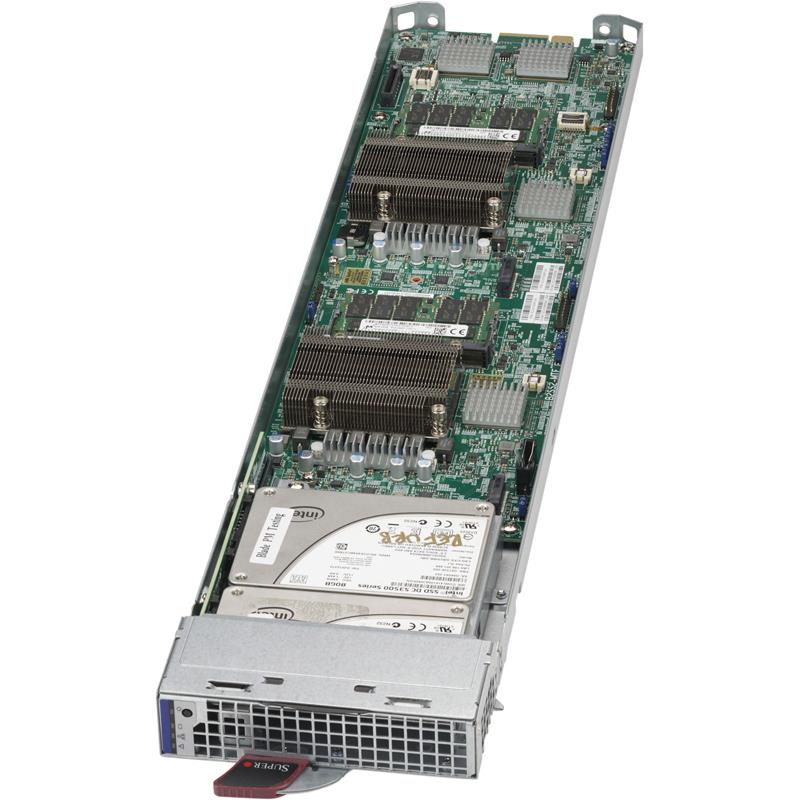

Supermicro MBI-6219G-T8HX-PACK MicroBlade Barebone Single Processor

• Dedicated LAN supports IPMI 2.0
• 56/28 Skylake UP nodes in 6U/3U
• Up to 32GB Unbuffered ECC SO-DIMM
• Front-loading nodes for easy access & servicing

MicroBlade microServer with single Socket FCBGA 1440 for Intel Xeon processor E3-1585 v5 - Supports up to 32GB Unbuffered ECC SO-DIMM, in 2 DIMM slots per node - On-Board : Intel C236 chipset, SATA3 6Gbps via chipset, Dual 10GbE LAN ports, IPMI v2.0 - Includes : 1x 2.5in SATA3 6Gbps SSD per blade, 2x M.2 (80mm PCI-E 3.0 x4), 1x SATADOM, MicroBlade Board (MBD-B2SS2-H-MTF) - (BLADE ONLY)

• Dual 10GbE LAN ports
• 2 Independent Nodes per Module
• Dedicated LAN supports IPMI 2.0
• 56/28 Skylake UP nodes in 6U/3U
• 56/28 Skylake-H UP nodes in 6U/3U
• Up to 392 Skylake UP nodes per 42U Rack
• Front-loading nodes for easy access and servicing
• Intel® Xeon® processor E3-1585 v5 Socket FCBGA 1440
• 1x 2.5 SATA3 SSDs, 1x SATADOM, 2x M.2 (PCI-E 3.0 x4)
• Up to 32GB DDR4-2133MHz ECC SO-DIMM in 2 DIMM slots per node
• Power Supply Module with Fan: 8/4/2x 2000W Redundant Titanium Level, 8/4x 1600W Redundant Platinum Level, 8/4x 2000W Redundant -48V input DC power supplies (N+1, N+N)

Extra Specifications for Supermicro MBI-6219G-T8HX-PACK MicroBlade Barebone Single Processor

Main Specifications
Dimensions (WxDxH)	Height 1.2" (30.48mm) x Width 4.94" (125.48mm) x Depth 23.2" (589.28mm)
Enclosure Color	Silver Grey
Type	MicroBlade
Weight	Gross Weight: 5.01 lbs (2.27 kg)
Supports	1x SATADOM
Parts List
Motherboard	B2SS2-H-MTF
Processor
Compatible processor	Intel Xeon processor E3-1585 v5 processors, CPU TDP up to 65W
Compatible Socket	Single Socket FCBGA 1440
System Memory
DIMM Sizes	16GB, 8GB
Memory Capacity	Up to 32GB Unbuffered ECC SO-DIMM, in 2 DIMM slots per node
Memory Voltage	1.2 V
Cache Memory
Memory Type	2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 260-pin SO-DIMMs
On-Board Devices
Chipset	Intel C236 chipset
IPMI	Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)
Network Controllers	Dual 10GbE LAN ports
Input / Output
SATA	SATA3 (6Gbps) via chipset
System BIOS
BIOS Features	ACPI 5.0, DMI 2.3, PCI 3.0, Plug and Play (PnP), SMBIOS 3.0, UEFI 2.3.1
BIOS Type	AMI UEFI
Front Panel
LEDs	Power LED, Fault LED, Network Activity LED, UID / KVM LED
Drive Bays
Internal	1x 2.5" SATA3 (6Gbps) SSD per blade
	2x M.2 (PCI-E 3.0 x4)
Environmental Parameters
Operating Temperature	Operating Temperature: 10C to 35C (50F to 95F)
	Non-operating Temperature: -40C to 70C (-40F to 158F)
	Operating Relative Humidity: 8% to 90% (non-condensing)
	Non-operating Relative Humidity: 5% to 95% (non-condensing)
Electromagnetic Compatibility (EMC)
Europe	EN55022 - Emissions
	EN55024 - Immunity
	EN61000-3-2 - Harmonics
	EN61000-3-3 - Voltage Flicker
	CE - EMC Directive 89/336/EEC
United States / Canada	FCC- Emissions (US) Verification
Parts List - (Items Included)
Add-On Card	1x AOM-BPN-MS28HS-P
Micro Blade Module Chassis	2x MCP-620-31401-0N
	1x MCP-620-31409-0N
	1x MCP-620-31410-0N
	1x MCP-620-31408-0N
MicroBlade Sled	1x MCP-680-31406-0N
Motherboard / Chassis	1x MBD-B2SS2-H-MTF

Warranty:	3 years labor, 1 year parts, 1 year advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 1 year, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Supermicro
Type of Support:	FULL
Phone No.:	408-503-8000
URL:	Click here for Manufacturer Website
